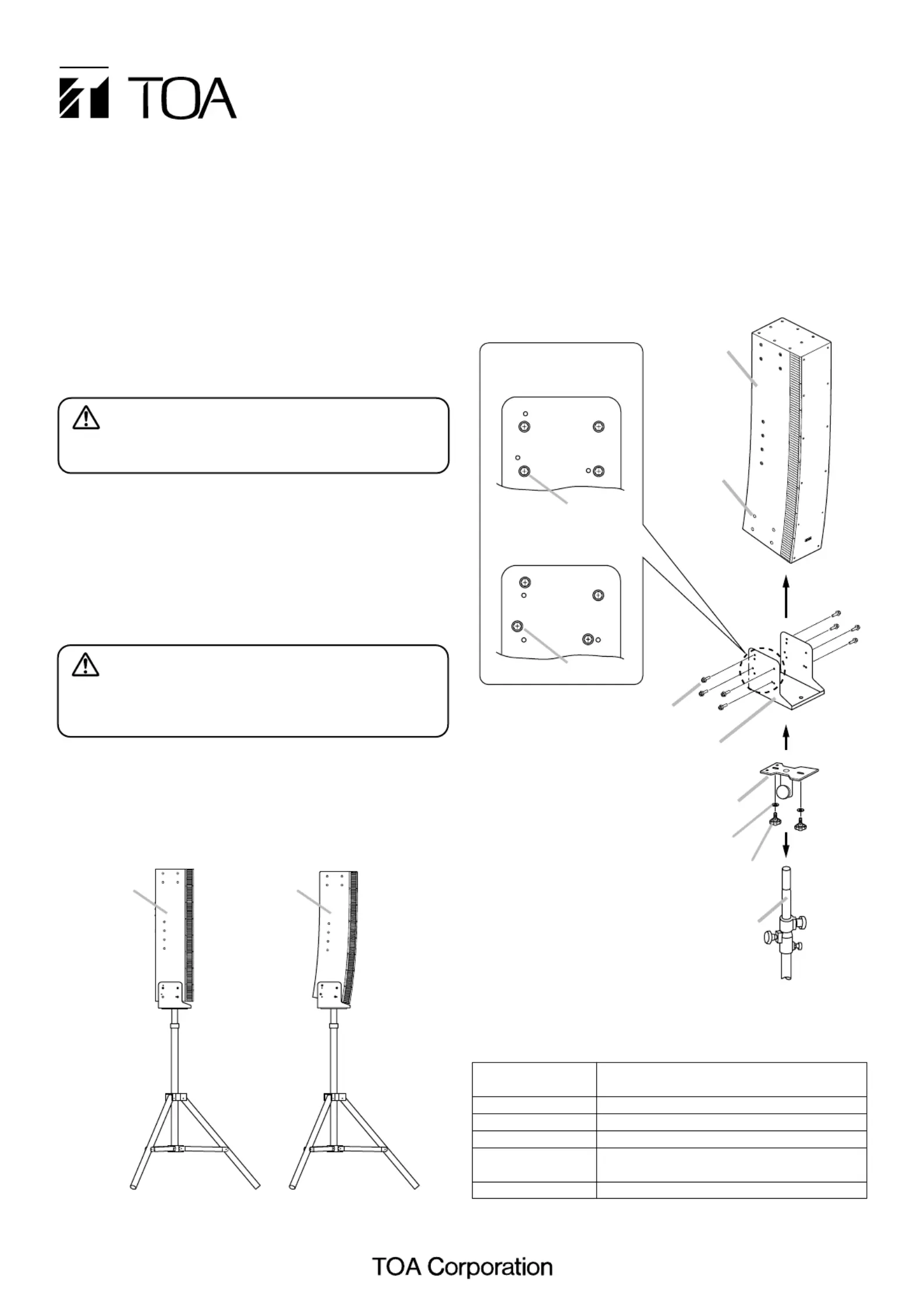

Seite 1/1
4. SPECIFICATIONS
1
Steel plate, white, paint
165 (w) x 175 (h) x 220 (d) mm
1.7 kg (including accessories)
ST-32
Hexagon head bolt M5 x 20 with washer ...... 8
Number of Speakers
to be Mounted
Finish
Dimensions
Weight
Applicable Stand
(option)
Accessories
Note: The design and specifications are subject to change without
notice for improvement.
For step 3 and 4 below, refer to the instruction manual attached
to the ST-32.
Step 1. Remove the screws on both sides of the speaker.
Note: The removed screws are not used.
Step 2. Install the SR-SA4 Stand Adapter to the speaker.
Step 3. Attach the bracket (included in the ST-32) to the
SR-SA4 Stand Adapter.
Step 4. Mount the bracket onto the stand.
3. SPEAKER MOUNTING
Speaker
Hexagon head bolt M5 x 20
with washer (included in the SR-SA4)
SR-SA4 Stand adapter
Screw
(4 each on
both sides)
Bracket (included in the optional ST-32)
ST-32 Speaker Stand (optional)
4
1
2
3
Fixing bolt
Fixing bolt
When installing
the SR-S4L speaker
When installing
the SR-S4S speaker
Speaker mounting screw
(included in the ST-32)
Plain washer (included in the ST-32)
Note
When using the ST-32, set the
inner pipe to its lowest position.
INSTALLATION MANUAL
STAND ADAPTER SR-SA4
The SR-SA4 is designed to be used exclusively to mount the
SR-S4L or SR-S4S Line Array speaker on the ST-32 Speaker
Stand.
1. SAFETY PRECAUTIONS
•Before installation or use, be sure to carefully read all the
instructions in this section for correct and safe operation.
•Be sure to follow all the precautionary instructions in this
section, which contain important warnings and/or cautions
regarding safety.
•After reading, keep this manual handy for future reference.
•Do not use other methods than specified to mount the unit.
Extreme force is applied to the unit and the speaker could
fall off, possibly resulting in personal injuries.
•Tighten each nut and bolt securely. Ensure that the unit has
no loose joints after installation to prevent accidents that
could result in personal injury.
•Use the ST-32 Speaker Stand in combination. Doing
otherwise may cause the unit or component to fall off,
resulting in personal injury.
Indicates a potentially hazardous situation which, if
mishandled, could result in death or serious personal injury.
WARNING
•Avoid touching the unit's sharp metal edge to prevent injury.
Indicates a potentially hazardous situation which, if mishandled,
could result in moderate or minor personal injury, and/or property
damage.
CAUTION
Printed in Japan
133 - 0 1 -443 - 3 0
SR-S4L SR-S4S
2. SPEAKER MOUNTING VIEW
