SPEAKER SELECTOR

OPERATING INSTRUCTIONS

SS-9001

Thank you for purchasing TOA's Speaker Selector.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read all the instructions in this section for correct

and safe operation.

• Be sure to follow all the precautionary instructions in this section, which contain important

warnings and/or cautions regarding safety.

• After reading, keep this manual handy for future reference.

Indicates a potentially hazardous situation which, if mishandled,

could result in death or serious personal injury.

WARNING

• External wiring connected to the terminals marked with requires installation by an instructed

person.

2. GENERAL DESCRIPTION

The SS-9001 is a speaker selector used with 9000 series amplifier.

It selectively distributes each of 2 inputs to the same 4 output zones.

3. SPECIFICATIONS

Supplied from the optional AD-246 AC adapter or

an external 24 V DC/200 mA power supply.

120 mA

No-voltage make contact input (polarized), open voltage: 24 V DC,

short-circuit current: 3 mA

Under 240 W (70 V/100 V line)

Removable terminal block (2 pins)

Removable terminal block (10 pins)

–10 to +40°C

Case: Surface-treated steel plate

112 (w) x 197 (h) x 30 (d) mm

530 g

Removable terminal plug (2 pins) x 6, Removable terminal plug (10 pins) x 1,

Cord clamp x 1, Tapping screw (4 x 20) x 4

Power Source

Current Consumption

Control Signal

Control Power

Speaker Terminal

Control Terminal

Operating Temperature

Finish

Dimensions

Weight

Accessories

Note: The design and specifications are subject to change without notice for improvement.

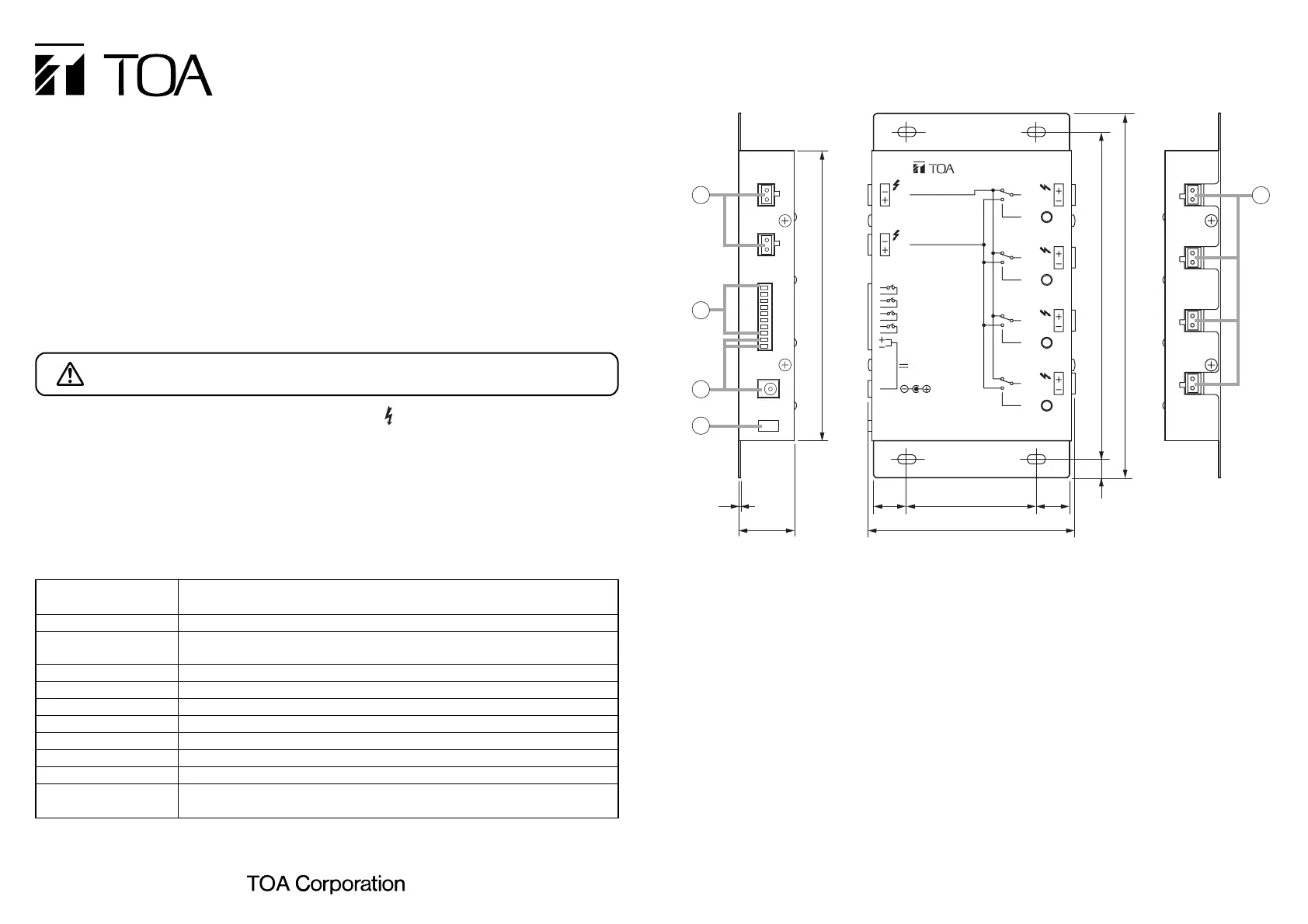

4. NOMENCLATURE AND FUNCTIONS

9000 SERIES

SPEAKER SELECTOR

ZONE 1IN 1

70V/100V MAX. 240W

ZONE 2

ZONE 1

ZONE 4

ZONE 3

CTRL IN

DC IN

24V

120mA

ZONE 4

18 1870

112

157

197

17710

[Left side] [Front] [Right side]

1. Speaker input terminals [IN 1, IN 2]

2-pin removable terminal blocks.

Connect the speaker output (high impedance

line, up to 240 W) from the power amplifier to

each terminal.

Short the IN 2 terminal's pins when only the

IN 1 terminal is used.

2. Control input terminal [CTRL IN]

8 pins in the 10-pin removable terminal block.

Receives the control signals (polarized non-

voltage contacts) from the ZP-001T when the

9000 series amplifier is in the Matrix "Sub-

Mode" (single output or BGM/PAGE), and

activates the inner relays.

This terminal can also receive control signals

from the control output terminals of the 9000

series amplifier or C-001T Control I/O

Expansion Module. (For details, refer to the

9000 series amplifier's instruction manual.)

3. DC power input terminals [DC IN]

Requires the power input of 24 V DC.

DC input terminal or 2 pins in the 10-pin

removable terminal block.

Connect the power source that can supply

200 mA or more to this terminal.

The optional AD-246 AC Adapter can be

used for the power supply.

4. Cord clamp

Fixes the AC adapter's power cord.

5. Speaker output terminals [ZONE 1/2/3/4]

2-pin removable terminal blocks.

Connect speakers to each terminal, which is

capable of delivering 240 W output on a line.

Unit: mm
