MOUNTING INSTRUCTIONS
Prepare to Ride
GB
Handlebar Bag
series
User's Guide
* Not needed if handlebar diameter is 31.8mm.
8
6
7a
7b
5
6b
Handlebar Bag Fixer
1. HB Fixer A
1a. HB Fixer Release Button
2. M5 x 20mm Bolt 2a. Washer x2
3. M5 x 18mm Bolt
4. M5 x 12mm Bolt
5. HB Fixer B

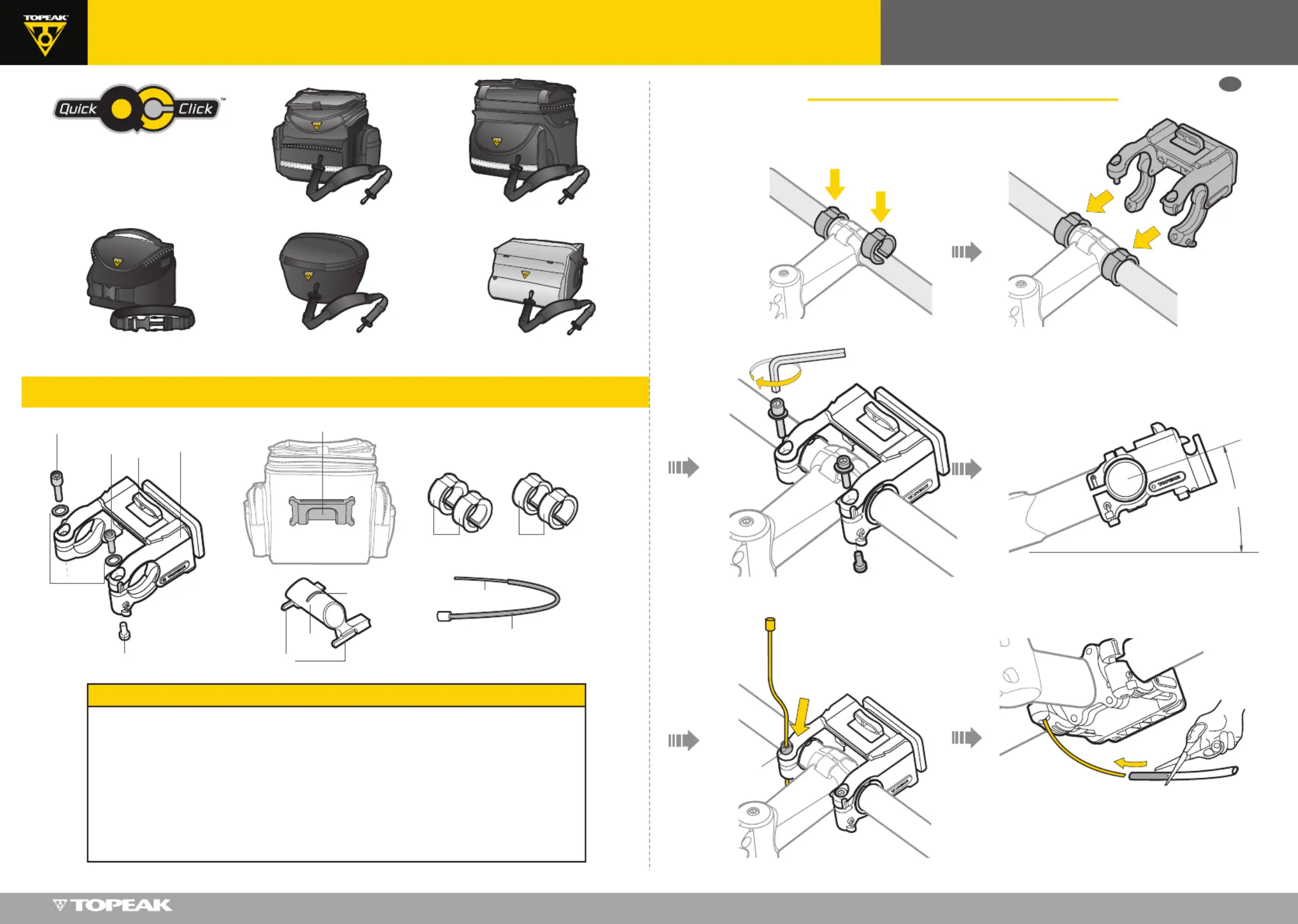

DETAILED PARTS DESCRIPTION
*
6. Computer Clip
6a. Thread hole
6b. Computer Clip Release Tab
7. Rubber Sizing Pad
7a. ø25.4 (for normal size h/bar)
7b. ø28.6 (for oversize h/bar)
8. Security Cable
8a. cable housing
6a
Mount Handlebar Fixer on Handlebar
8a
Add cable housing over the
security cable to protect the
stem from marring. Trim
excess cable housing.
Tighten the bolts.
(Do not tighten completely.)
20˚
Handlebar DryBagCompact Handlebar Bag
TourGuide Handlebar Bag DXTourGuide Handlebar Bag
BarPack
M5 x 20L
Bolt
1
3
1a
2
2a
5mm Allen key
4
2-year
Warranty: All mechanical components against
manufacturer defects only.
WARRANTY
Warranty Claim Requirements
To obtain warranty service, you must have your original sales receipt.
Items returned without a sales receipt will assume that the warranty
begins on the date of manufacture. All warranties will be void if the
product is damaged due to user crash, abuse, system alteration,
modication, or used in any way not intended as described in this
manual.
* The specications and design are subject to change without notice.
Copyright © Topeak, Inc. 2011
Prepare to Ride
Handlebar Bag
series
User's Guide
Fixer 8
Art no. TC3009
SPARE PART
ø25.4
ø28.6
M-TC3009-GB 01/11

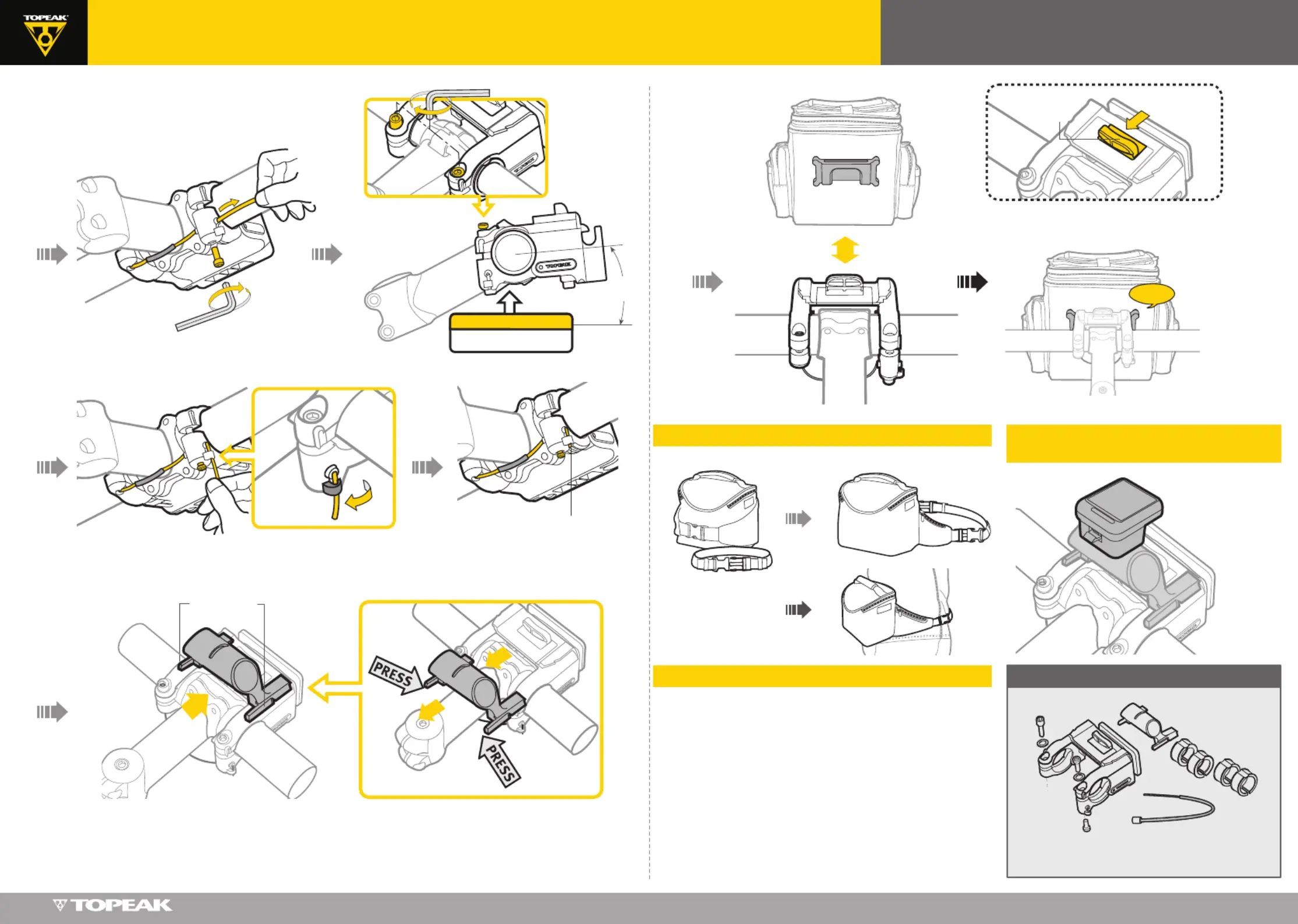

Compact Bag used as Fanny Pack
Computer Clip Mounting
Release
Tab
Trim excess cable.
Press release tabs on computer clip for removal.
Optional
Accessory to mount
on computer clip
Topeak Panoram
Cycle Computer
Series
Pullback release button of HB Fixer A and lift
handlebar bag to detach.
Release
Button
Pullback
"Click"
Pull cable and tighten
anchor bolt rmly.
5˚
Recommended
5˚ from horizontal
Re-tighten the
bolts once correct
angle is reached.
Please contact your Topeak dealer with any questions.
For USA customer service call: 1-800-250-3068
Website: www.topeak.com
