TB100DF
Installation and Owner’s Manual
Manual de Instrucciones y del Propietario
Manuel D’Installation et D’Utilisation
Double-Handle Freestanding Tub Filler
Llenado de la Bañera Independiente de Doble Manija
Remplisseur de Baignoire à Poignée Double Intégrable
2
ENGLISH
THANKS FOR CHOOSING TOTO!
The mission of TOTO is to provide the world with healthy, hygienic and more
comfortable lifestyles. We design every product with the balance of form and function
as a guiding principle. Congratulations on your choice.
Thanks for Choosing TOTO
®
! ........................................................................................... 2
Care and Cleaning .............................................................................................................. 2
Before Installation ............................................................................................................... 2
Tools You Will Need ........................................................................................................... 2
Included Parts ..................................................................................................................... 3
Warnings.............................................................................................................................. 3
Installation Procedure .....................................................................................................4-5
Warranty .............................................................................................................................. 6
Rough-In ........................................................................................................................... 17
Spare Parts ....................................................................................................................... 18

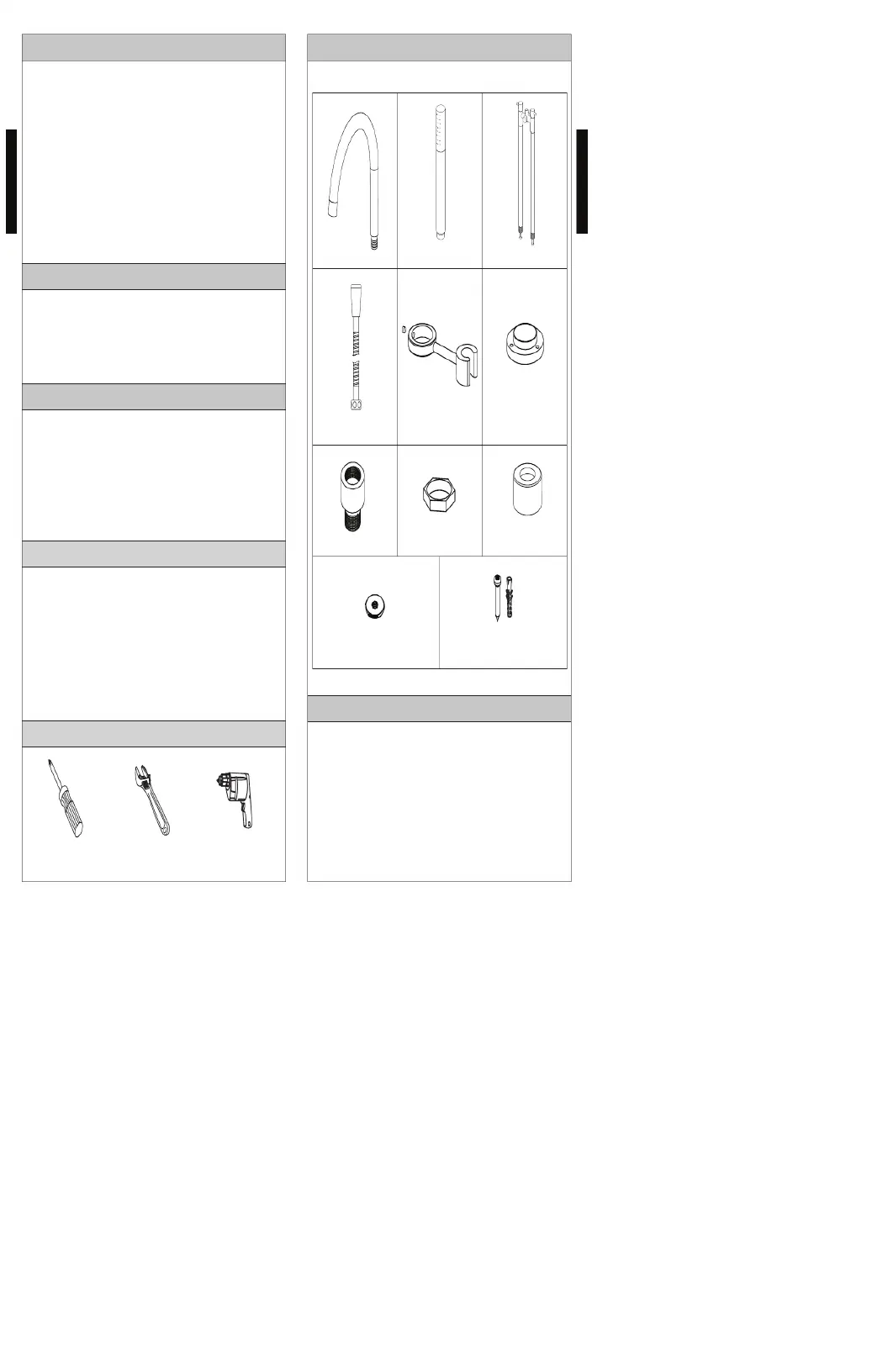

Adjustable Wrench Drill
Phillips Screwdriver
Observe all local plumbing codes.
Make sure the water supply is shut off.
Read these instructions carefully to ensure proper installation.
TOTO reserves the right to update the design of the product without previous
warning.
The floor surface must be completed and leveled before installing the tub filler.
TABLE OF CONTENTS
TOOLS YOU WILL NEED
BEFORE INSTALLATION
CARE & CLEANING
Your new tub filler is designed for years of trouble-free performance. Keep it looking
new by cleaning it periodically with mild soap, rinsing thoroughly with warm water
and drying with a clean, soft cloth. Do not use abrasive cleaners, steel wool or harsh
chemicals, as these will dull the finish. Failure to follow these instructions may void
your warranty.
4
ENGLISH
5-7/8" (150 mm)
3/8”-9/16”
(10-15 mm)

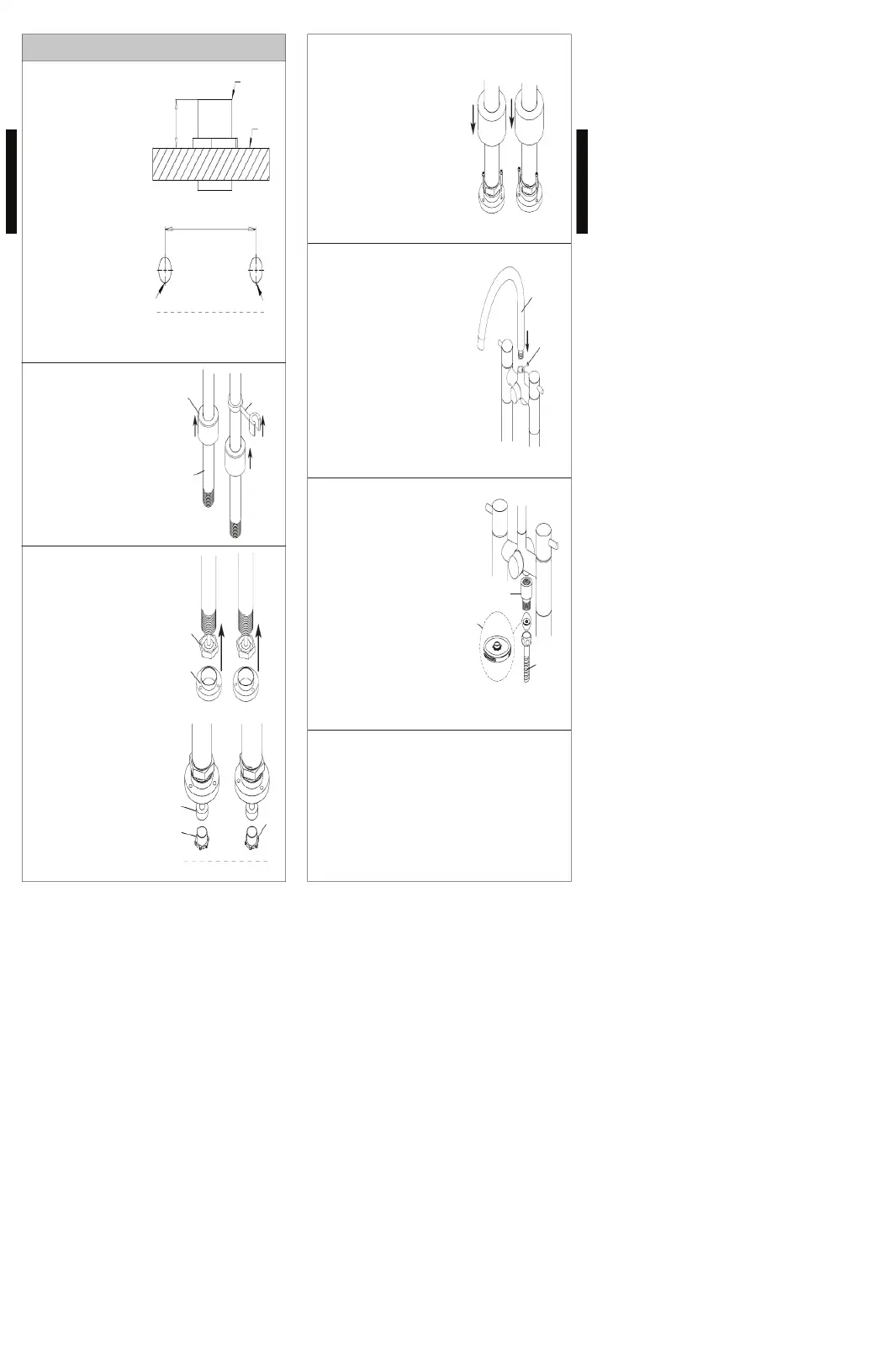

INSTALLATION PROCEDURE
1) Install the hot and cold water supply
nipples (1/2" NPT male, not sup-
plied) according to the provided
diagram.
IM PORTANT: Correct positioning of
the supply lines is critical to ensure
proper installation.
Thoroughly flush all supply lines
and shut off the water supply before
proceeding with installation.
2) Loosen the set screw on the hand-
shower bracket and slide it up the leg
of the tub filler assembly, followed by
the escutcheons.
Loosely tighten the set screw to hold
the handshower in place during the
rest of the assembly.
3) Thread a locknut onto each leg of the tub
filler assembly until it stops, followed by a
mounting bracket.
Connect the hot (red) and cold (blue) tub
filler hoses to the correct water supply
nipples.
Thread the mounting brackets up or down
the filler legs as needed, until the tub filler
assembly is level.
Cold
Supply
Hot
Supply
Floor
Surface
1/2" NPT Nipple
Hot
Supply
Cold
Supply
Escutcheon
Tub Filler
Assembly
Handshower
Bracket
Lock Nut
Mounting
Bracket
Tub Filler
Hoses
Tub
Tub
