Seite 1/11
Warranty Registration and Inquiry
For product warranty registration, TOTO U.S.A. Inc. recommends online warranty registration. Please visit
our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please con-
tact TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260
(888) 295-8134 or (678) 466-1300 when calling from outside of U.S.A.
Installation and Owner’s Manual
Manual de Instrucciones y del Propietario
Manuel d’Installation et d’Utilisation
Deck-Mounted Bath Faucet
Grifo para Baño Montada Sobre Cubierta
Robinetterie Montée sur Comptoir de Baignoire
Aquia
®
TB416DD TB630DD
Upton™
2
ENGLISH
TABLE OF CONTENTS
THANKS FOR CHOOSING TOTO!
The mission of TOTO is to provide the world with healthy, hygienic and more
comfortable lifestyles. We design every product with the balance of form and
function as a guiding principle. Congratulations on your choice.
Thanks for Choosing TOTO
®
! ............................................................................. 2
Before Installation ................................................................................................ 2
Common Tools Needed ...................................................................................... 2
Included Parts ...................................................................................................... 3
Warnings ............................................................................................................... 3
Installation Procedure ....................................................................................... 4-5
Care & Cleaning ................................................................................................... 5
Warranty................................................................................................................ 6
Rough-In Dimensions ....................................................................................... 17
Spare Parts..................................................................................................... 18-19

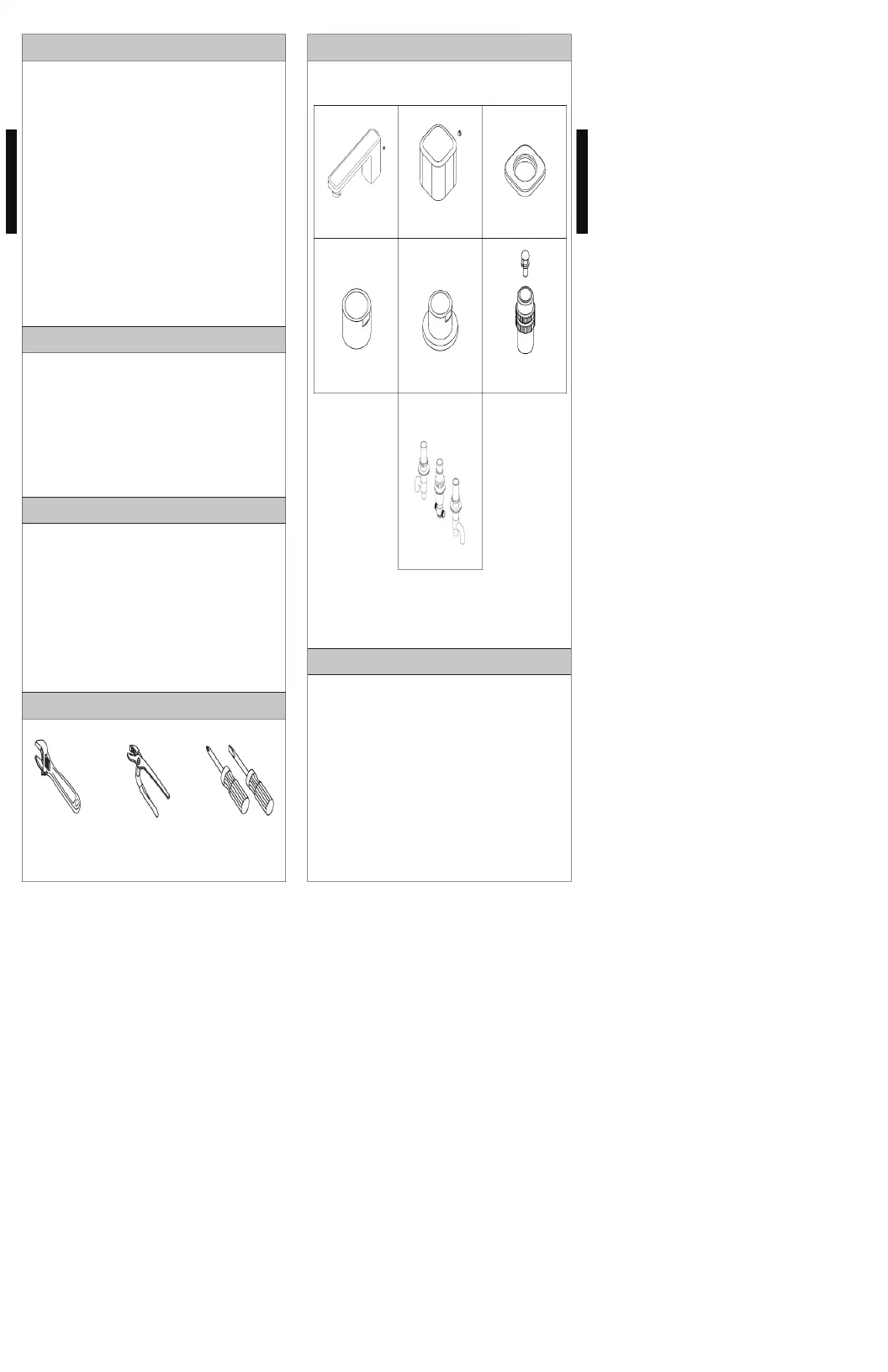

BEFORE INSTALLATION
COMMON TOOLS NEEDED
Observe all local plumbing codes.
Make sure water supply is shut off.
Read these instructions carefully to ensure proper installation.
TOTO reserves the right to update product design without notice.
Adjustable
Wrench
Adjustable
Pliers
Screwdrivers
4
ENGLISH

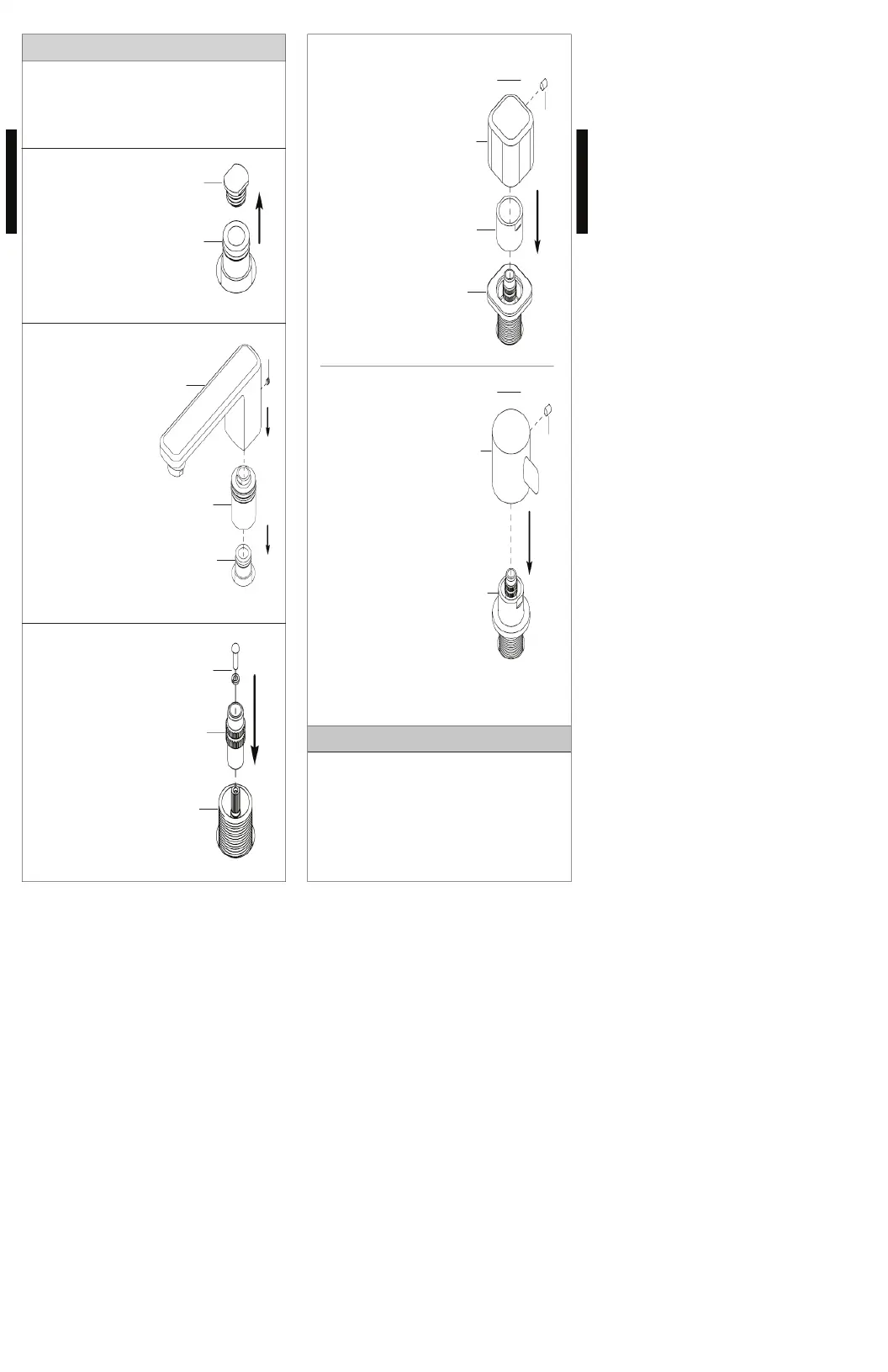

INSTALLATION PROCEDURE
1) Verify that the TB6TR valve set has been installed according to the instructions and
leak tested before installing the bath faucet. Remove the three plaster guards from
the TB6TR valve set.
2) Remove the plug from the spout
shank of the TB6TR valve set
protruding from the finished
deck.
3) Loosen the set screw on the
back of the spout, and pull the
adapter out of the spout.
Tighten the adapter onto the
spout shank protruding from the
finished deck. Push the spout
onto the adapter, align with tub,
and secure by tightening the set
screw.
4) Tighten a valve stem to each
of the TB6TR valves protruding
from the finished deck using the
included screw and washer.
Using a pair of pliers, rotate the
cold (right) valve stem counter-
clockwise until it stops. Rotate
the hot (left) valve stem clock-
wise until it stops.
Plug
Spout
Shank
Spout
Set
Screw
Adapter
Spout
Shank
Screw &
Washer
Valve
Stem
Valve
