14-Slot Rackmount Chassis

Installation Guide

Package Contents: , AC Power Cord, Fourteen Retainer-plates, Installation GuideChassis

Installation

Step 1: Install the Media Converters in the Chassis

Note:

It is recommended to use TP-Link media converters. Other vendors’ products may

be incompatible.

To ask questions, find answers, and communicate with TP-Link users or

engineers, please visit https://community.tp-link.com to join TP-Link

Community.

© 2022 TP-Link 7106509905 REV3.2.2

The pictures are for demonstration purposes only. The actual product may dier in appearance from the depicted.

For technical support and other information, please visit

https://www.tp-link.com/support, or simply scan the QR code.

1. Tweak out the two screws on the media converter. Then install the

retainer-plate (provided with the chassis) to the media converter using

the screws removed from the media converter.

2. Remove the front metal plate of the slot on the chassis, then carefully

slide the media converter into the slot and lock it tightly with the

locking knob.

Step 2: (Optional) Install the Redundant Power Supply Module

Step 3: Mount the Chassis on the Rack

Step 4: Power On

Note:

1. The chassis supports EIA standard-sized, 19-inch racks.

2. For security reasons, it is recommended to install the chassis as shown below.

1. Electrically connect the Grounding Terminal on the rear panel of the

chassis to ground via the ground cable.

2. Connect the chassis to the AC outlet using the provided power cord.

Fasten the chassis to the rack with screws through the holes of the

brackets on each side.

Remove the protective cover on the power supply module slot of the chassis.

Then gently push in the module and plug it solidly into the connector.

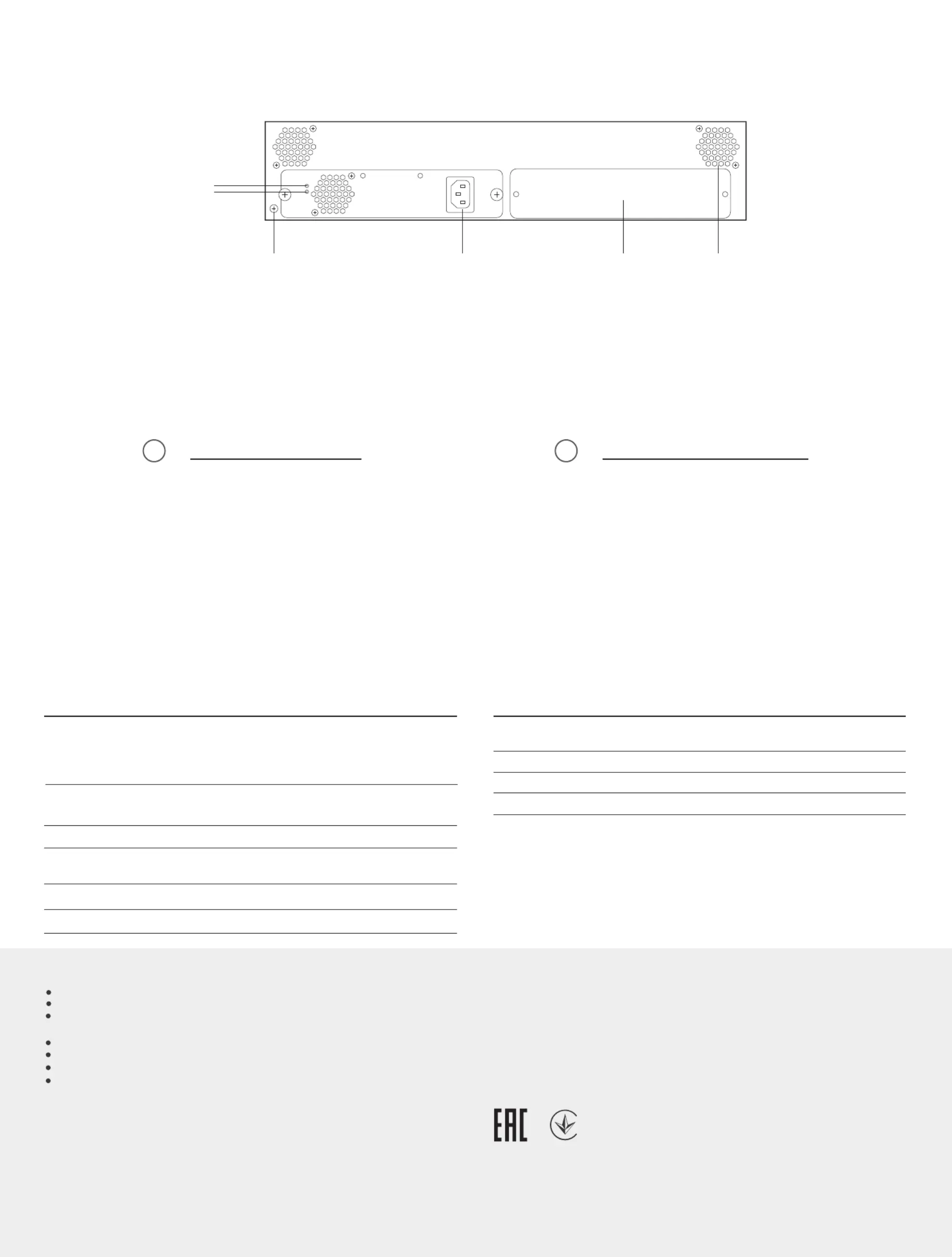

Grounding Terminal

Chassis
