Owner’s Manual

Specifications 2

Safety 2

Feature Identification 3

Operation 4

Application Guide 5

Mounting 6

Battery Connection 7

Troubleshooting/Service/

Maintenance/Warranty 8 (back page)

PowerVerter

PV1000HF, PV1800HF & PV3000HF

DC-to-AC Inverters

Input Output

12 VDC 120V, 60 Hz. AC

1111 W. 35th Street, Chicago, IL 60609 USA

Customer Support: (773) 869-1234

www.tripplite.com

Contents

Reliable AC Power Wherever You Need It!

Congratulations! You’ve purchased the most advanced, feature-rich

Inverter designed as a mobile energy source for your vehicle.

PowerVerter Inverters efficiently convert DC (battery) power into

120V AC (household) power, allowing you to use equipment you

commonly use at home—appliances, entertainment systems, computers,

power tools and more—while cruising the open road or out on the

open water. PowerVerter Inverters, through a high-efficiency conversion

process and a charge conservation setting, draw the highest level of

performance from your batteries without overtaxing them, lengthening

their service life. An automatic low battery shutdown feature ensures

you'll always have plenty of power for starting purposes.

• Automatic Overload Protection

• Automatic “Battery-Saver” Low Voltage Shutdown

• High Efficiency DC-to-AC Inversion

• Multi-Function Lights & Switches

• Optional Remote Control Capability

(Module included with PV3000HF)

PV1000HF PV1800HF PV3000HF

www.tripplite.com/warranty

MODEL NUMBER: PV1000HF PV1800HF PV3000HF

Continuous Power (@ 20° C):* 1000 Watts 1800 Watts 3000 Watts

Double Boost™ Peak Surge Power:* 2000 Watts 3600 Watts 6000 Watts

DC Input Volts (Nominal): 12 VDC 12 VDC 12 VDC

DC Input Voltage Range: 10 - 15 VDC 10 - 15 VDC 10.5 - 15 VDC

DC Input Connection:

User Supplied Cables User Supplied Cables User Supplied Cables

Output Volts (Nominal): 120 VAC 120 VAC 120 VAC

Output Frequency (Nominal): 60 Hz, ± 0.5% 60 Hz, ± 0.5% 60 Hz, ± 0.5%

Efficiency: Up to 94% Up to 94% Up to 94%

Output Waveform:

Modified Sine Wave Modified Sine Wave Modified Sine Wave

* DoubleBoost duration (instantaneous). Actual output depends on battery age, battery charge

level and ambient temperature. The policy of Tripp Lite is one of continuous improvement.

Specifications are subject to change without notice.

Wire Gauge

2 Conductors 4 Conductors

(all models) (PV3000HF only)

Watts 6 4 2 0 00 Twin 00

500 15 ft 25 ft 39 ft 62 ft 79 ft 158 ft

700 11 ft 18 ft 28 ft 44 ft 56 ft 112 ft

1000 N/R 12 ft 20 ft 31 ft 39 ft 78 ft

2000 N/R N/R N/R 16 ft 20 ft 40 ft

2400 N/R N/R N/R 13 ft 16 ft 32 ft

3000 N/R N/R N/R 10 ft 13 ft 26 ft

†N/R = Not Recommended. NOTE: Acceptable power is directly related to cable length (i.e. - the shorter the cable, the better the performance)

Important Safety Instructions

SAVE THESE INSTRUCTIONS!

This manual contains important instructions and warnings that should be followed during the installation, operation and storage of all Tripp Lite Inverters.

Location Warnings

• Install your Inverter in a location or compartment in your vehicle that minimizes exposure to heat, dust, direct sunlight and moisture.

Flooding the unit with water will cause it to short circuit and could cause personal injury due to electric shock.

• Leave a minimum of 2" clearance at front and back of the Inverter for proper ventilation. To avoid overheating the Inverter, any

compartment that contains the Inverter must be

properly ventilated with adequate outside air flow. The heavier the load of connected

equipment, the more heat will be generated by the unit.

• Do not install the Inverter directly near magnetic storage media, as this may result in data corruption.

• Do not install near flammable materials, fuel or chemicals.

Battery Connection Warnings

• Multiple battery systems must be comprised of batteries of identical voltage, age, amp-hour capacity and type.

• Because explosive hydrogen gas can accumulate near batteries if they are not kept well ventilated, your batteries should not be

installed in a “dead air” compartment. Ideally, any compartment would have some ventilation to outside air.

• Sparks may result during final battery connection. Always observe proper polarity as batteries are connected.

• Do not allow objects to contact the DC input terminals. Do not short or bridge these terminals together. Serious personal injury

or property damage could result.

Equipment Connection Warnings

•Do not use a Tripp Lite Inverter in life support or healthcare applications where a malfunction or failure of a Tripp Lite

Inverter could cause failure of, or significantly alter the performance of, a life support device or medical equipment.

• You may experience uneven performance results if you connect a surge suppressor, line conditioner or UPS system to the output of

the Inverter.

Operation Warnings

• Your Inverter does not require routine maintenance.

• Potentially lethal voltages exist within the Inverter as long as the battery supply is connected. During any service work, the battery

supply should therefore be disconnected.

• Do not connect or disconnect batteries while the Inverter is operating from the battery supply. Dangerous arcing may result.

2PV

Specifications

Minimum Recommended Cable Sizing Chart

†

Always loosely twist each pair of cables (one positive and one negative) together.

Use in conjunction with DC wiring connection instructions in the Battery Connection section.

Using 4 conductors is recommended (but not required) to obtain

maximum output power from PV3000HF models.

Tripp Lite Inverters include a Battery Charge Conserver (Load Sense) Control which saves battery power by allowing users to

set the minimum load level at which the unit’s inverter turns on. Users can significantly reduce the No Load DC Input Current to

a very low amperage power level with the use of this control.

12V DC

CAUTION!

Observe proper polarity. Reversed polarity

will blow internal fuses. See manual.

3PV

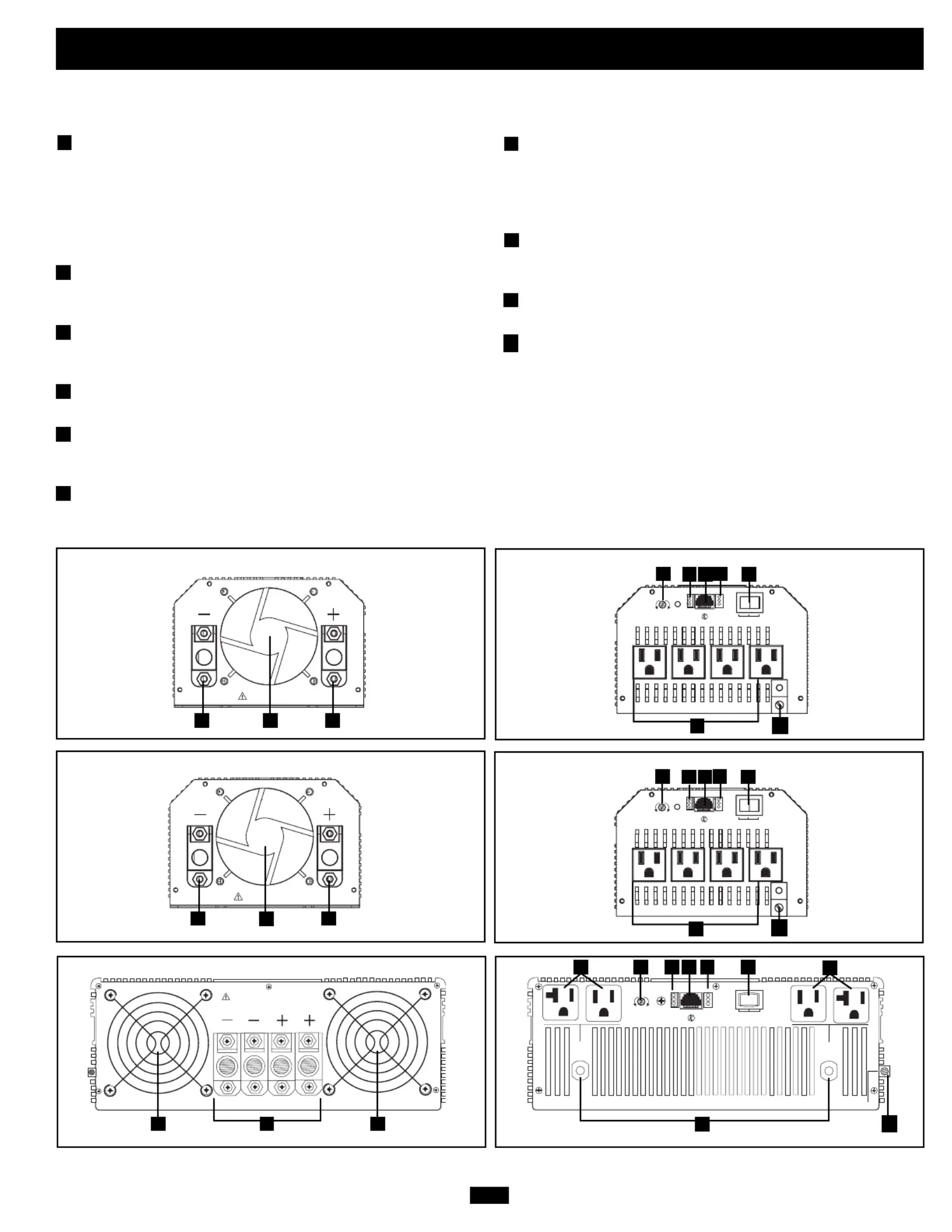

Feature Identification

Identify the premium features on your specific model and quickly locate instructions on how to maximize their use.

Operating Mode Switch: controls Inverter operation. Set this

3-position rocker switch to “ON” to have your Inverter provide

connected equipment with AC power by converting DC power

from an attached battery. Set switch to “OFF” when not using

connected equipment to prevent battery drain. Set switch to

“REMOTE” to remotely monitor and control the Inverter with

the use of an optional remote module.

“LOAD” Indicator Lights: intuitive “traffic light” signals show

approximate equipment load level. See page 4 for instructions

on reading indicator lights.

“BATTERY” Indicator Lights: intuitive “traffic light” signals

show approximate charge level of your battery. See page 4 for

instructions on reading indicator lights.

DC Power Terminals: connect to your battery terminals. See

page 7 for connection instructions.

AC Receptacles: allow you to connect equipment that would

normally be plugged into a utility outlet. PV3000HF models

include two receptacles that accept either 15- or 20-amp plugs.

Resettable Circuit Breaker(s): protect your Inverter against

damage due to overload. PV3000HF models include two separate

20-amp circuits. See page 4 for resetting instructions.

Remote Control Module Connector: allows remote monitoring

and control with an optional module (Tripp Lite model

APSRM2 or APSRM3, sold separately or included with

PV3000HF models). See remote module owner’s manual for

connection instructions.

Battery Charge Conserver (Load Sense) Dial: conserves battery

power by setting the low-load level at which the Inverter auto-

matically shuts off. See page 4 for setting instructions.

Multi-Speed Cooling Fan(s): quiet, efficient fans prolong

equipment service life.

Main Ground Lug: properly grounds the Inverter to vehicle

grounding system or earth ground. See page 7 for connection

instructions.

Low Battery Alarm/Shutdown (internal, not shown): auto-

matically detects low voltage and shuts down Inverter to preserve

vehicle battery.

Overload Alarm/Shutdown (internal, not shown): automatically

detects wattage overload on Inverter outlets and shuts down

Inverter as a protective measure.

PV3000HF Rear Panel PV3000HF Front Panel

GROUND

MED

LOW

MED

REMOTE

OFF

LOAD

SENSE

GREATER

LOAD

LESSER

LOAD

BATTERY

LOAD

20A

15A

20A

OUTPUT

CIRCUIT

BREAKER

20A

OUTPUT

CIRCUIT

BREAKER

20A

12V DC

CAUTION!

Observe proper polarity. Reversed polarity

will blow internal fuses. See manual.

PV1800HF Rear Panel PV1800HF Front Panel

MED

LOW

MED

REMOTE

BAT ERY

LOAD

REMOTE

OFF

LOAD

SENSE

GREATER

LOAD

LESSER

LOAD

GROUND

12V DC

CAUTION!

Observe proper polarity. Reversed polarity

will blow internal fuses. See manual.

PV1000HF Rear Panel

PV1000HF Front Panel

99 4

MED

LOW

MED

REMOTE

BAT ERY

LOAD

REMOTE

OFF

LOAD

SENSE

GREATER

LOAD

LESSER

LOAD

GROUND
