JET-STREAM FAN

H-9924, H-9925

H-11062, H-11063

TOOLS NEEDED

10 mm Wrench

11 mm Wrench

13 mm Wrench

16 mm Wrench

19 mm Wrench

Socket Wrench24 mm SocketDrill5/16" Nut Driver Bit

Para Español, vea páginas 6-10.

Pour le français, consulter les pages 11-15.

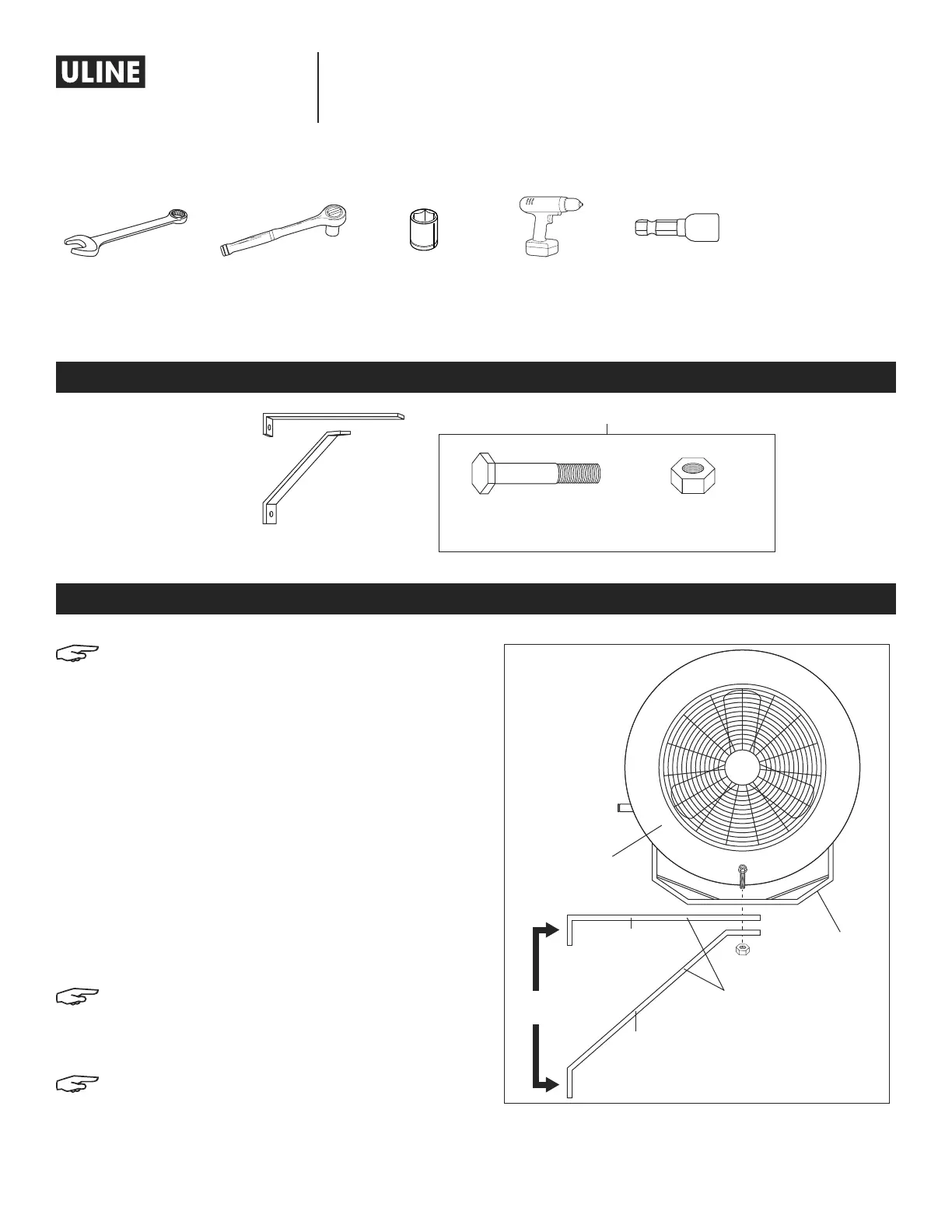

WALL BRACKET PARTS

WALL BRACKET ASSEMBLY

Bracket Assembly x 1

Hardware Kit

5/8" Nut x 15/8" Bolt x 1

NOTE: Fan can be placed above the wall

mount assembly or hung down below.

1. Secure part A of wall mount assembly bracket to

solid surface from which fan will be hung. A single

mounting hole is located on part A. Secure to

surface using a wall anchor (not included).

(See Figure 1)

2. Position part B under A and situate B so that A is level.

A single mounting hole is located on part B. Secure

part B to surface using a wall anchor (not included).

(See Figure 1)

3. Using a 16 mm wrench, secure the yoke to wall

mount assembly bracket by inserting the 5/8" bolt

through the center hole in the yoke and through

the holes in both parts of the wall mount assembly

bracket. (See Figure 1)

NOTE: The yoke may open up or down

depending on which way the wall mount

assembly bracket is hung. Ensure assembly

is level and stable.

NOTE: A safety chain (not included) is

recommended for securing fan head.

Figure 1

Yoke

Wall Mount

Assembly Bracket

Mounting Hole

A

B

Fan Head

Assembly
