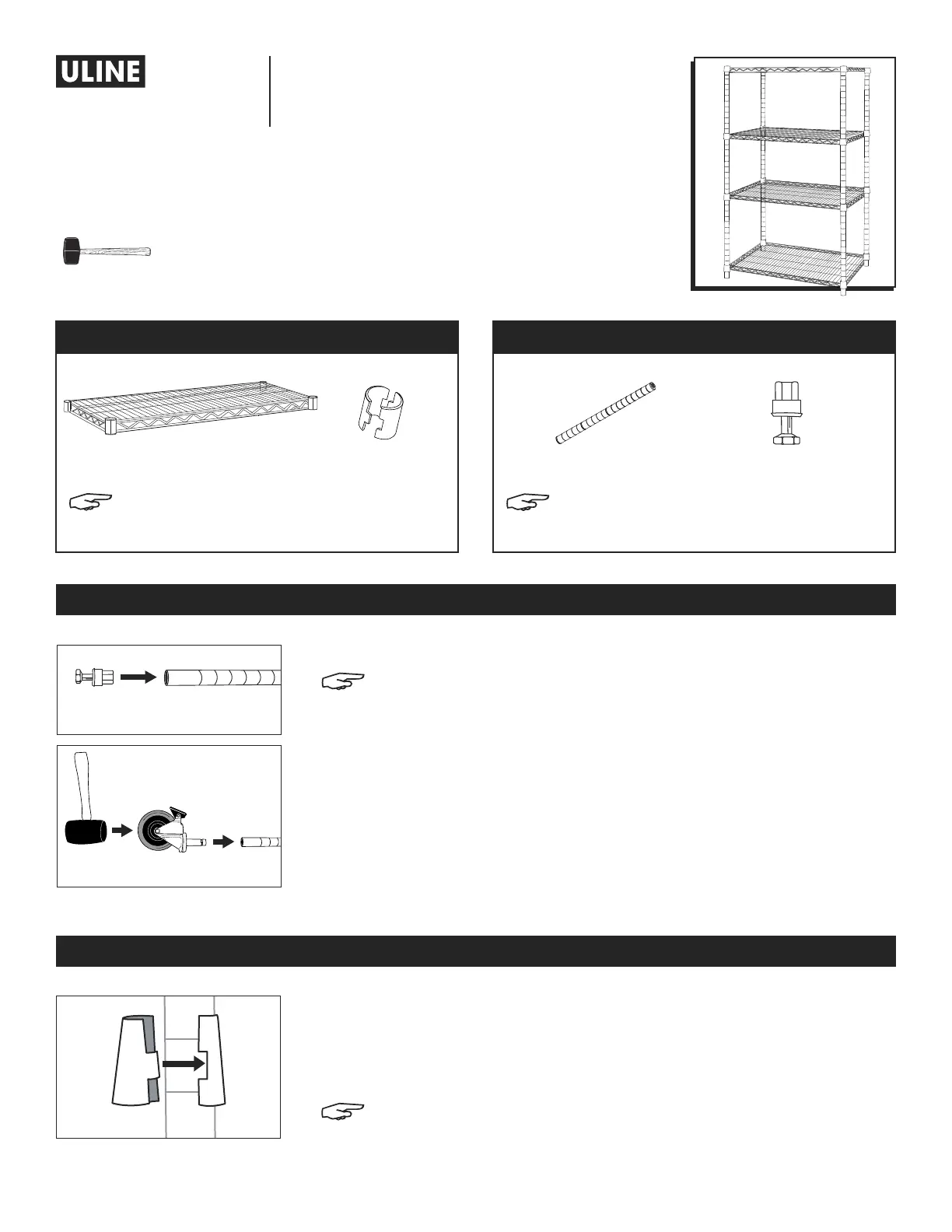

PAGE 1 OF 6 1124 IH-1205

1-800-295-5510

uline.com

CHROME

WIRE SHELVING

Para en Español, vea páginas 3-4.

Pour le français, consulter les pages 5-6.

Figure 3

ASSEMBLY

SELF-LEVELING FEET OR CASTER INSTALLATION

Figure 1

Figure 2

SELF-LEVELING FEET

NOTE: If installing casters, do not install self-leveling feet.

1. Ensure post is positioned as shown. (See Figure 1)

2. Insert self-leveling foot into open end of post.

3. Use a rubber mallet/hammer or tap on ground until self-leveling foot slides

into post.

4. Repeat steps 2 and 3 for remaining posts.

CASTERS (ULINE MODEL # H-1205WH SOLD SEPARATELY)

1. Ensure post is positioned as shown. (See Figure 2)

2. Engage the wheel brakes to keep casters from rolling during assembly.

Use a rubber mallet to tap caster stems into posts. (See Figure 2)

1. Start with the lowest shelf. Snap the interlocking pieces of a

shelf support (wide end down) around the post at the lowest

groove where shelf is to be located. Slide the support up or

down until it snaps onto the groove. Add a shelf support to the

same place on the remaining posts. (See Figure 3)

NOTE: NSF requires food service applications to keep the

lowest shelf at least 6" above the floor.

SHELF PARTSPOST PARTS

NOTE: Self-leveling feet are located within

post carton.

Self-Leveling Foot x 4Post x 4

NOTE: Two-shelf wire shelving units include

two shelves and eight sets of shelf supports.

Shelf x 4Shelf Support x 16 Sets

TOOL NEEDED

Rubber Mallet

(optional)
