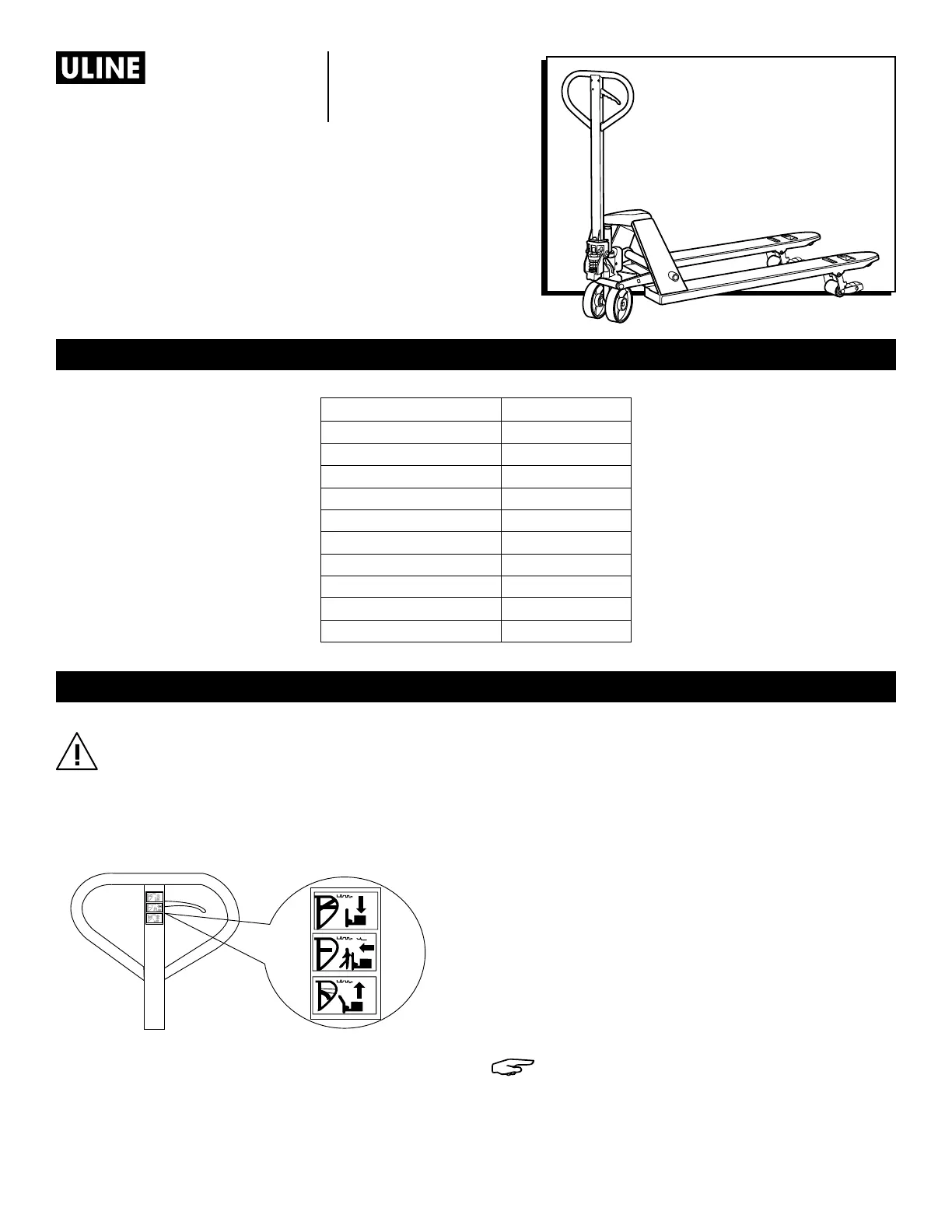

PAGE 1 OF 9 0325 IH-3029

MULTI-DIRECTIONAL

PALLET TRUCK

1-800-295-5510

uline.com

H-3029

MODELH-3029

Standard Capacity5,500 lbs.

Lateral Capacity3,300 lbs.

Max. Fork Height8"

Min. Fork Height3"

Fork Length48"

Overall Fork Width27"

Fork Wheel Diameter3" Polyurethane

Lateral Wheel Diameter2.5" Nylon

Steering Wheel DIameter7" Polyurethane

Net Weight160 lbs.

OPERATION

TECHNICAL DATA

WARNING! Operator must read and understand

instructions here and on truck prior to use.

On the handle of the pallet truck, you will find the control

lever, which can be set in three positions. (See Figure 1)

- DOWN = to lower the forks

- NEUTRAL = to move the load

- UP = to raise the forks

If the forks elevate while pumping in the NEUTRAL

position, turn the setting screw clockwise until pumping

the handle does not raise the forks and the NEUTRAL

position functions correctly.

1. If the forks descend while pumping in the NEUTRAL

position, turn the setting screw counter-clockwise

until the forks do not lower.

2. If the forks do not descend when the control lever is

in the DOWN position, turn the setting screw clockwise

until raising the control lever lowers the forks. Then

check the NEUTRAL position as per steps 1 and 2.

3. If the forks do not lift while pumping in the UP

position, turn the setting screw counter-clockwise

until the forks elevate while pumping in the UP

position. Then check the NEUTRAL and DOWN

position as per steps 1, 2 and 3.

NOTE: When viewing the truck from the handle

side, the setting screw is located on the right

side of the pump above the right wheel. The

truck will lower faster or slower depending on

how far in or out the screw is adjusted.

Figure 1
