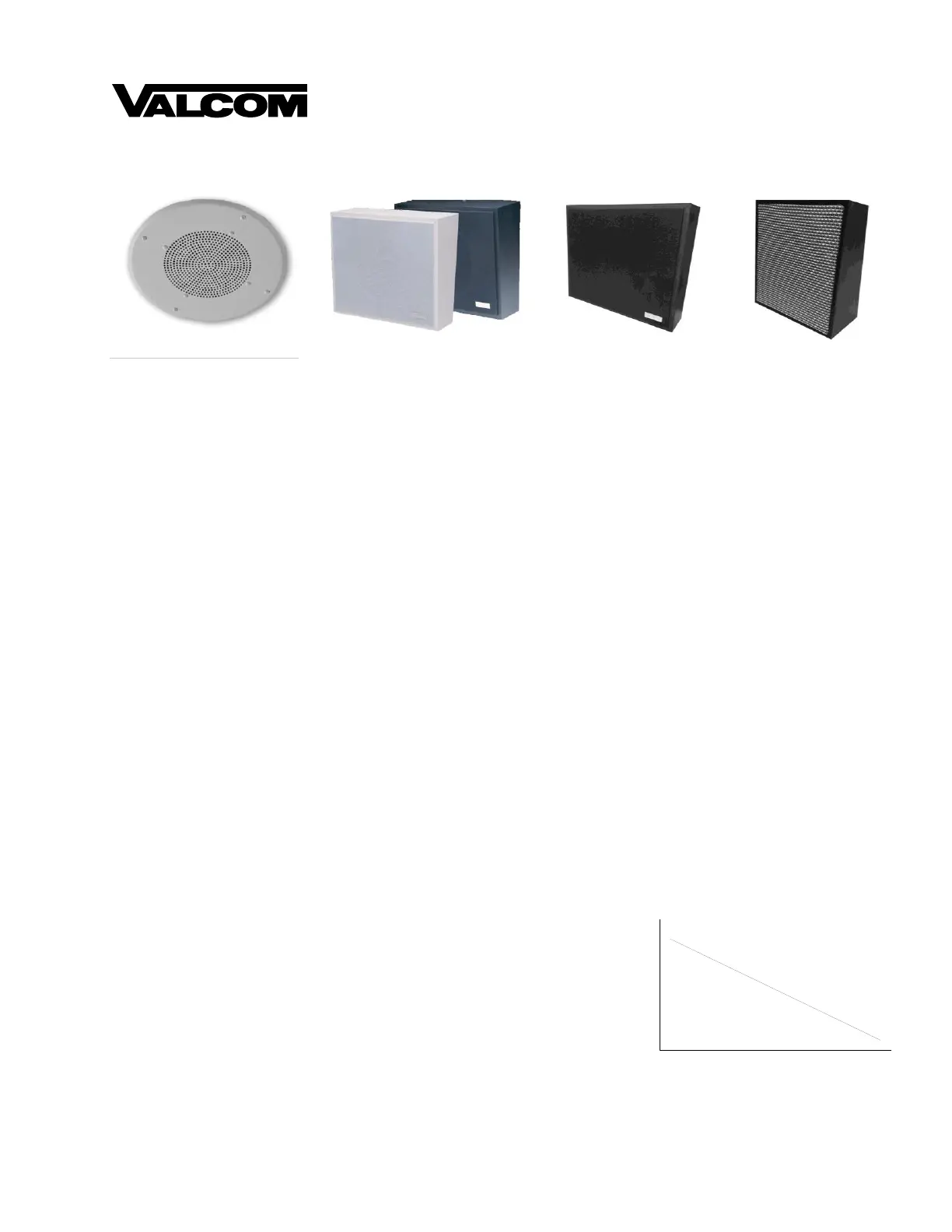

Seite 1/3

Issue 11

1 947065

Machine

Shop

(Noisy)

10' 20' 30' 40' 50'

Shipping

(Moderate)

Waiting

Rooms

(Quiet)

Talkback not recommended above 80dB

TYPICAL REPLY DISTANCE CHART

Maximum Talkback Reply Distance

45 OHM TALKBACK INTERIOR SPEAKERS

V-1060A V-1061-W, V-1061-BK V-1062A V-1063A

INTRODUCTION

These instructions contain the specifications and

guidelines necessary to install, operate and maintain

Valcom 45 Ohm Talkback Interior Speaker

Assemblies.

The 45 Ohm Talkback Interior Speaker Assemblies

are for use with the Valcom "handsfree" talkback

page control units and are for interior use only.

SPECIFICATIONS

Features

 45 Ohm Impedance

 8 Inch Speaker

 Easy Hook-up (2 connections using house cable

or station wire)

Dimensions/Weight

8” Ceiling Speakers:

V-1060A talkback speaker

13.00" Diameter x 2.50" D

(33.02cm Diameter x 6.35cm D)

2.5 lbs. (1.13 kg)

Wall Speakers:

V-1061-BK black vinyl w/black cloth grille

V-1061-W white vinyl w/white cloth grille

9.60" H x 11.50" W x 4.20" D

(24.38cm H x 29.21cm W x 10.67cm D)

4 lbs. (1.81 kg)

V-1062A wood grain w/light brown open weave grille

V-1063A wood grain w/dark brown cloth grille

10.60" H x 9.70" W x 5.20" D

(26.92cm H x 24.64cm W x 13.21cm D)

4.0 lbs. (1.81 kg)

Environment

Temperature: 20 to +55oC

Humidity: 0 to 95% non precipitating

SYSTEM DESIGN

General

The 45 Ohm Talkback Speakers are designed to be

used with the Valcom "handsfree" talkback control

units. In combination with these units, they will

provide both loudspeaker and talkback functions.

A standard Valcom talkback paging system is made

up of three basic components:

1. A talkback page control unit

2. Speakers (45 Ohm)

3. A power supply

Coverage

The distance you can be away from a speaker and

still have good talkback depends on the type of

speaker and the ambient noise level. In a typical

office environment, a wall speaker (V-1061-W,

V-1061-BK, V-1062A, V-1063A,) will cover

approximately 600 square feet when mounted eight

feet from the floor. V-1060A ceiling speaker

coverage is dependent on ceiling height; the greater

the ceiling height, the larger the area covered.

Produktspezifikationen

Marke:	Valcom
Kategorie:	Lautsprecher
Modell:	V-1061-BK
Breite:	292.1 mm
Tiefe:	106.6 mm
Gewicht:	2040 g
Produktfarbe:	Schwarz
Übertragungstechnik:	Kabelgebunden
Impedanz:	45 Ohm
Höhe:	243.8 mm
RMS-Leistung:	12 W
Equalizer:	Nein
Betriebstemperatur:	-20 - 55 °C
Relative Luftfeuchtigkeit in Betrieb:	0 - 95 %
Audio Kanäle:	1.0 Kanäle
Frequenzbereich:	80 - 12000 Hz
Lautsprecherplatzierung:	Wandmontierbar
Lautsprechertyp:	1-Weg
