Seite 1/4
• Ideal for areas where personal attention must be
given to every call
• Eliminates the additional cost of adding a PABX
console or key system
• Allows for full utilization of all call pickup
features
• Monitors the status of lines or stations
• Non-volatile memory (no batteries required)
• Visual status for up to 24 analog lines or
stations (idle, in-use, ringing)
• Programmable ring indication on a per-line
basis
• Adjustable display viewing angle for desk or
wall mounting
• Displays require only a single pair of wires
• Powers up to (3) or displaysLM-24D LM-12W
• User printable extension identication cards
• Adjustable audio volume
• Quick installation
• Includes both the display and the scanner
• One year limited warranty

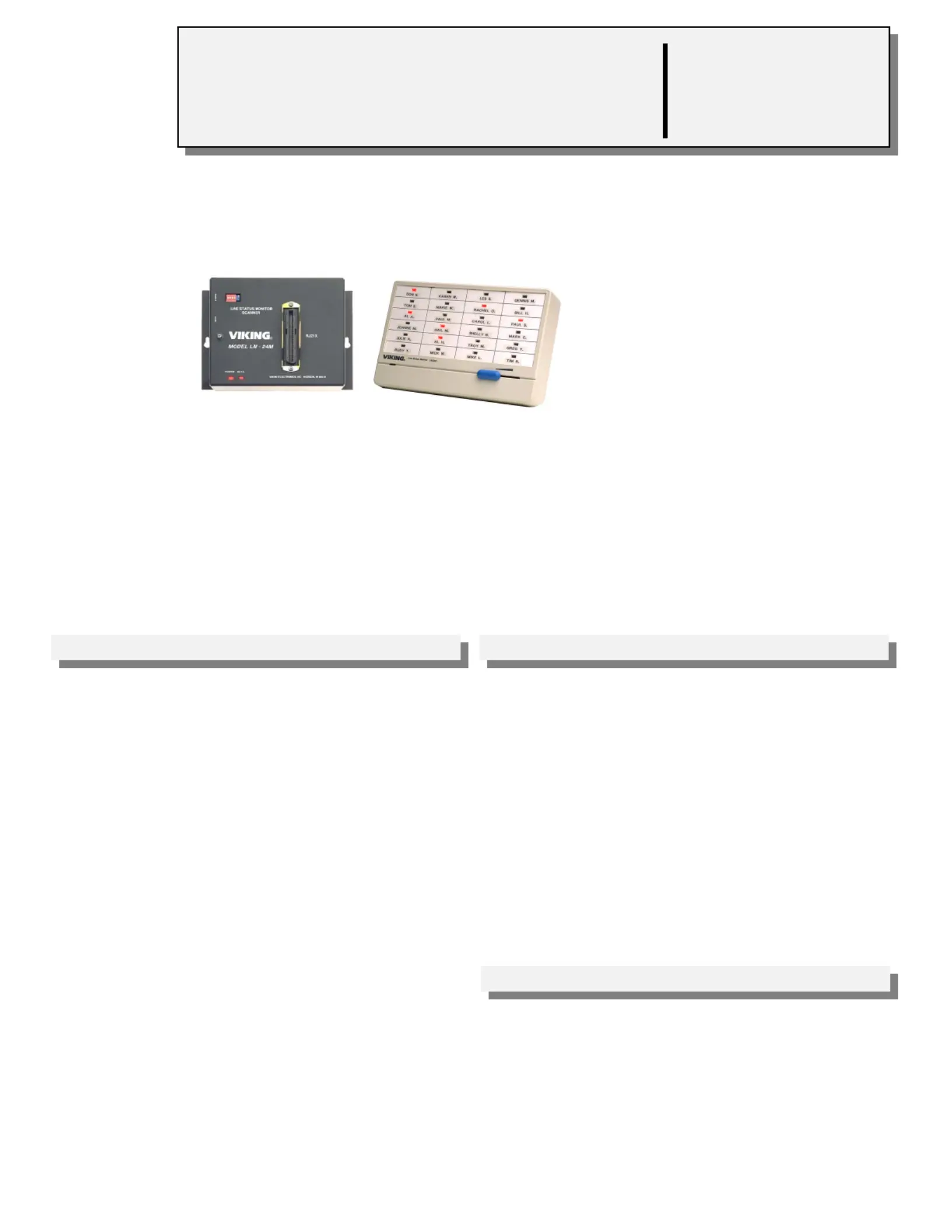

The LM-24S Line Status Monitor
System provides a visual status of up
to 24 lines or stations. If a line or
station is in use, the corresponding
LED will light steady, a ringing line or
station will show a ashing LED.
VIKING©
Technical Practice
Telecommunication Peripheral Products
LM-24S
Line Status Monitor
System
July 5, 2000
Features Applications
Sales...(715) 386 - 8861
Power: 120V AC/13.8V AC 1.25A UL listed adapter provided
Dimensions: LM-24M - 187mm x 127mm x 45mm (7.37” x 5” x
1.75”), 184mm x 119mm x 38mm (7.25” x 4.7” x 1.5”)LM-24D -
Shipping Weight: LM-24M - .68 Kg (1.5 lbs), LM-24D - .59 Kg
(1.3 lbs)
Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-
condensing humidity
Connections: (1) RJ21X connector, (1) RJ11 jack
Maximum Display Runs: (1) display: 244m (500 ft), (2) display:
122m (400 ft), (3) displays: 61m (200 ft)
Specifications
http://www.VikingElectronics.com
E-mail...Sales@VikingElectronics.com
Even if a ringing phone is out of
hearing range, a common audible
tone calls the operator’s attention to
the visible display. The tone is
adjustable for convenient operation.
The LM-24S Line Status Monitor System is designed for professional and efficient call
processing at department answering positions, message centers and back-up
attendant stations. Each LM-24S Line Status Monitor System includes one LM-24D
Display and one Scanner.LM-24M
See at a Glance when
Lines are Ringing
or In-Use
LM-24M LM-24D

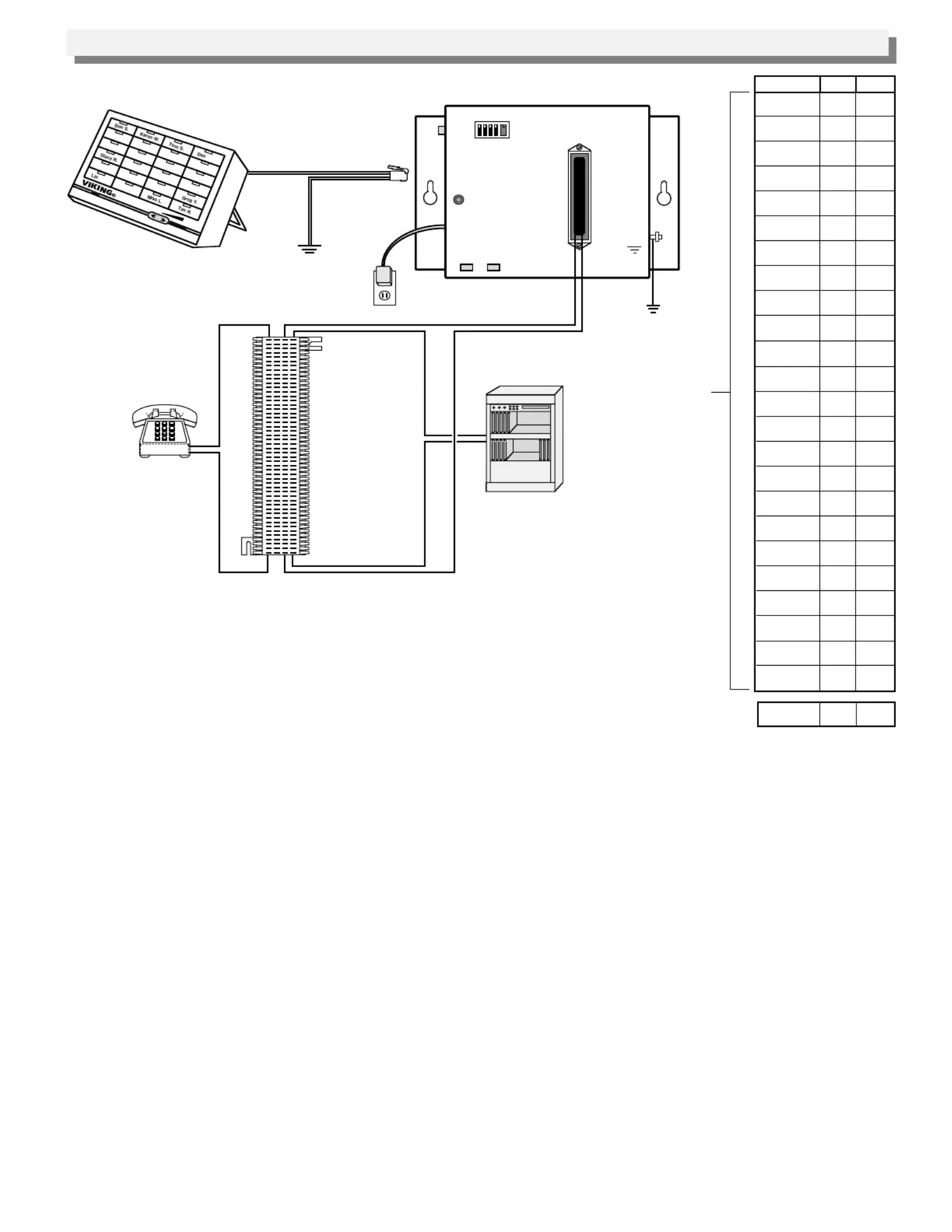

Installation
A. Ground Connections
The earth grounding lug or yellow/black pair on the modular RJ14 jack of the LM-24M
scanner must be connected to the positive of the talk battery for proper reference.
Normally this is the earth ground on most C.O. lines or analog PABX/KSU stations. To
test, use a voltmeter with the positive probe connected to the earth ground and the
negative probe to the ring side of a phone line. Measurements should be about 50 volts
on-hook and 30 volts o-hook.
C. Display Connections
Communication from the LM-24S scanner is accomplished over a single pair to the LM-24D display. The LM-24D
display receives data through pins 3 (red) and 4 (green) of a modular 6-wire jack or pins 2 (red) and 3 (green) of a
modular 4-wire jack.
Note: The LM-24D is sensitive to the polarity of this communication pair. The LM-24D will not be damaged by
reversed polarity on this pair but it will not function properly!
B. Phone Line Connections
All connections to the RJ-21X are in parallel with the C.O. lines or analog PABX/KSU stations. Use the table (above
right) to make the connections to the RJ-21X connector on the scanner.LM-24M
Note: The LM-24M scanner is factory set to 48 volts for C.O. lines or analog PABX/KSU stations. The LM-24M is
not sensitive to the polarity of the C.O. lines connected to the RJ-21X.
1T
1R
2T
2R
3T
3R
4T
4R
5T
5R
6T
6R
7T
7R
8T
8R
9T
9R
10T
10R
11T
11R
12T
12R
26
1
27
2
28
3
29
4
30
5
31
6
32
7
33
8
34
9
35
10
36
11
37
12
W/BL
BL/W
W/O
O/W
W/G
G/W
W/BN
BN/W
W/S
S/W
R/BL
BL/R
R/O
O/R
R/G
G/R
R/BN
BN/R
R/S
S/R
BK/BL
BL/BK
BK/O
O/BK
Line Pins Color
Receptionist’s Phone
25T
25R
50
25
V/S
S/V
BK/G
G/BK
BK/BN
BN/BK
BK/S
S/BK
Y/BL
BL/Y
Y/O
O/Y
Y/GN
GN/Y
Y/BN
BN/Y
Y/S
S/Y
V/BL
BL/V
V/O
O/V
V/GN
GN/V
V/BN
BN/V
38
13
39
14
40
15
41
16
42
17
43
18
44
19
45
20
46
21
47
22
48
23
49
24
13T
13R
14T
14R
15T
15R
16T
16R
17T
17R
18T
18R
19T
19R
20T
20R
21T
21R
22T
22R
23T
23R
24T
24R
nis M.
Marie W. Rachel O. Bill H.
Al A.
Paul M. Carol L. Paul S.
Joanne M.
Rudy T.
da V.
Gail M.Shelly B. Nichole S.
Al H. Ken M.
Mick W
.
Red
Green
Yellow Black
Optional
Earth Ground
Connection
To extension
telephones
Loop or
ground start
C.O. lines or
analog
PABX/KSU
station ports
LM-24D
Display
LM-24M Scanner
VIKING©
MODEL LM-24M
VIKING ELECTRONICS, INC. HUDSON, WI 54016
LINE STATUS MONITOR
SCANNER
RJ21X
POWER DATA
RESET
1 2 3 4
COM
EARTH
GND
Earth
Ground
Lug
D. Multiple Displays
The LM-24M can power up to (3) displays. If you need to power more than (3) displays or for long runs between the
scanner and display, an optional PS-2 power supply must be used with each LM-24D display. Adding PS-2 power
supplies will eciently double maximum run distances.
Stations
Typical Punch-Down Block
(not included)
120V AC
SENS
ADJUST
Programming
A. Accessing the Programming Mode
To begin programming, pick up the attendant’s phone (pins 25 and 50 - V/S and S/V). Enter ✱✱ or ## depending
on which character is accepted by your phone system. The display will flash twice and remain off, to indicate the
programming mode has been entered. The programming mode is exited when a valid or invalid program is
entered, or when the phone is returned to the on-hook position.
To disable display for one line only.............................
To disable displays for multiple lines...........................
To set a ring delay for one line only............................
To set a ring delay for for multiple lines.......................
B. Programming the LM-24M
Note: The LM-24D will flash the corresponding ring delay and then remain on. Programming is exited at this point
and the unit returns to the run mode. If an invalid program is entered, the LM-24D will sound an audible alert tone
and the current programming sequence will be canceled. On first time power up, all lines are enabled with a ring
delay of one. Once programmed, the ring delays are set from non-volatile memory.
Line number
Line number
Line number
Line number
✱ or #
✱ or #
Line number
Line number
0
0
(1 - 7)
(1 - 7)
Line Number Delimiter Line Number Ring Delay
C. Programming Examples
Programming the LM-24M to....
...disable line 5
...disable lines 2 through 10
...set a ring delay of 6 for line 8
...set a ring delay of 3 for lines 12 through 20
Enter ...
05 0
02 or # 10 0✱
08 6
12 or # 20 3✱
Note: Setting a ring delay to “0”
disables a line. To enable a line,
set the ring delay to 1 - 7.
D. Resetting the Ring Delays
1. Set dip switches as shown to the right.
2. RESETPress the button.
3. Turn switch 2 OFF.
4. RESETPress the button.
5. All ring delays will be set to one.
In order to program, you must first connect a C.O. line or analog PABX/KSU station port in parallel to the attendant
port (pins 25 and 50 - V/S and S/V). A telephone or test set must also be connected to the same pair. The
following programming must be done from this Touch Tone phone.
E. Non-Connected Lines
All open or non-connected positions (lines) on the LM-24M must be disabled through user programming or they will
cause steady indication on the display for their respective positions at all times.LM-24D
The LM-24M scanner is shipped with all lines enabled. To disable (or not light) any of the 24 lines, some
programming is necessary as explained in section above.B
1. ##Pick up the attendant’s phone (pins 25 and 50 - V/S and S/V) and enter or ✱✱ to enter programming mode.
2. Complete the following examples...
VIKING©
MODEL LM-24M
VIKING ELECTRONICS, INC. HUDSON, WI 54016
LINE STATUS MONITOR
SCANNER
RJ21X
POWER DATA
RESET
1 2 3 4
COM
EARTH
GND
1 2 3 4
ON
OFF

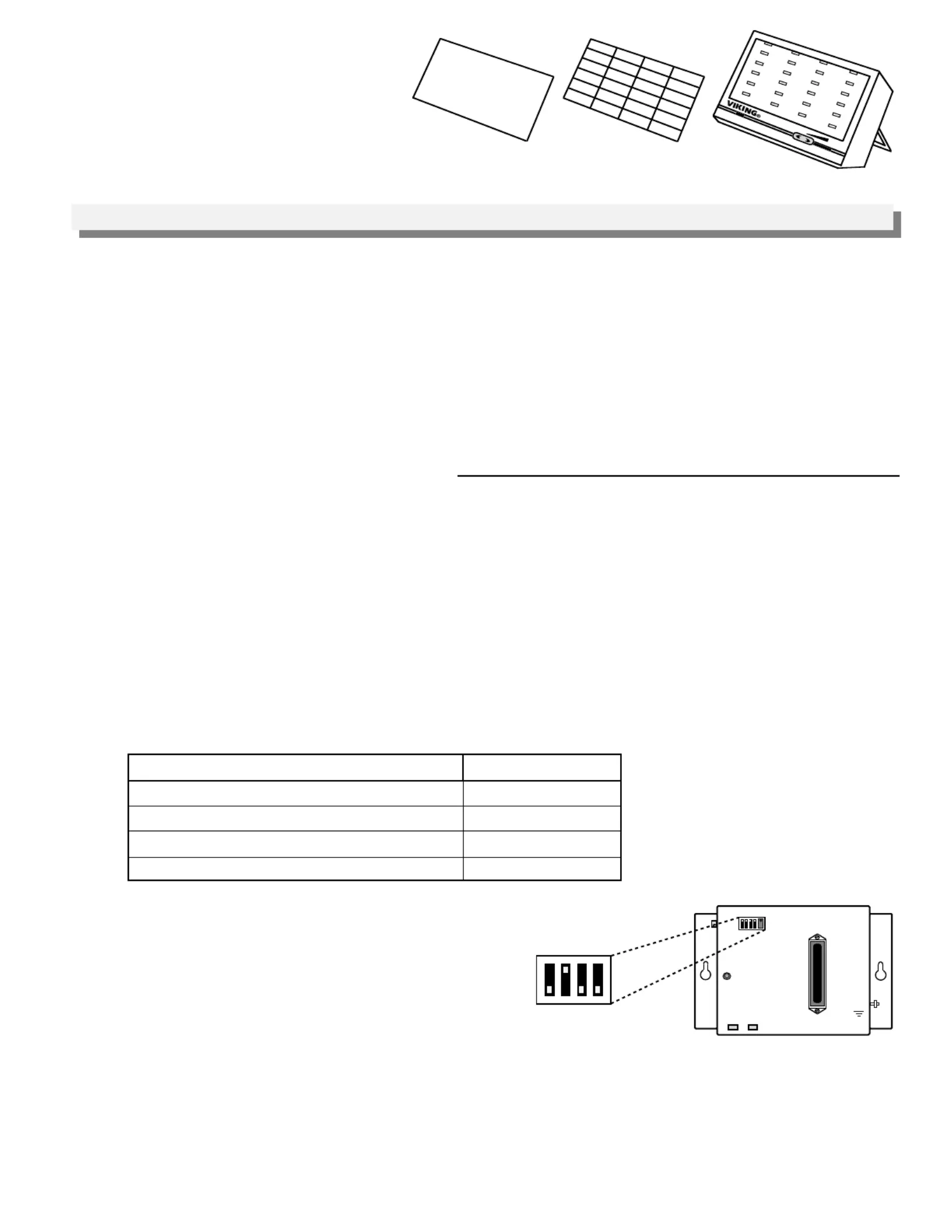

E. Station Identication Cards
After filling out the station identification
card, insert in onto the display, followed
by the plastic cover, as shown in the
diagram to the right.
Plastic Cover
Identication
Card
Display
Don S. Karen W.
Stacy R.
Dennis M.
Tom S.
Marie W. Rachel O. Bill H.
Al A.
Paul M. Carol L. Paul S.
Joanne M.
Rudy T.
Linda V.
Gail M.Shelly B. Nichole S.
Al H. Ken M.Greg Y.
Mick W
.Mike L. Tim R.
SENS
ADJUST
