Features
Specifications
www.VikingElectronics.com
Information: 715-386-8861
PRODUCT
MANUAL
Designed, Manufactured and Supported in the USA
VE-9x12 Series
Outdoor Enclosures
December 7, 2022
SECURITY & COMMUNICATION
VIKING
Add Protection to Your Viking Emergency Phone,
Entry Phone, Doorbox or Other Product
The VE-9x12 series of outdoor enclosures provide the
ultimate in weather protection for your Viking product
or other device. The enclosures are VE-9x12
constructed of durable UV stable polycarbonate / ABS
composite to provide years of outdoor service. The
heavy-duty doors are labeled “Telephone” and have a
gasket seal to keep out even the harshest weather. The
VE-9x12 allows you to choose from three panels that
allow mounting many different Viking products.

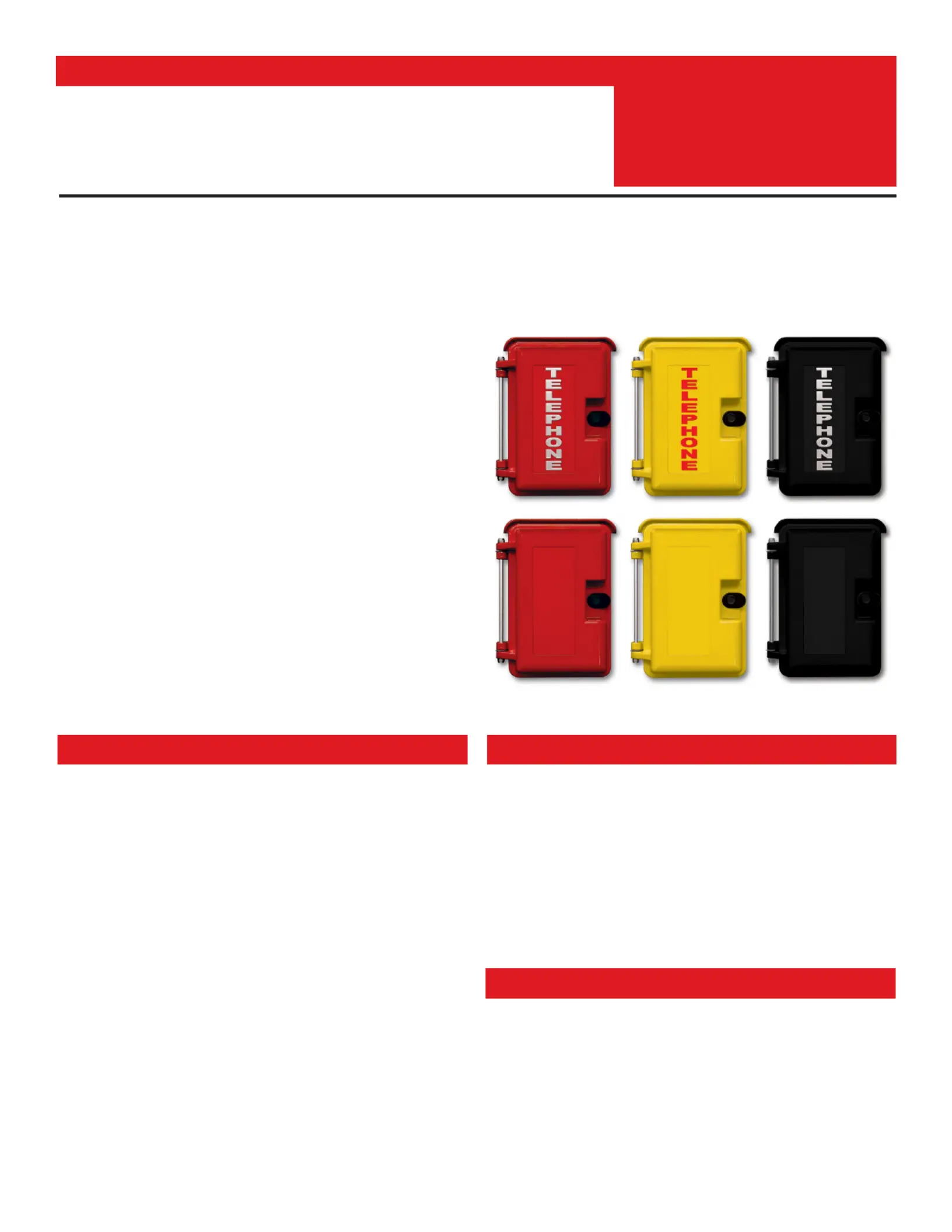

The VE-9x12 enclosures are available in three high
visibility colors: red with silver lettering, yellow with red
lettering, or black with silver lettering.
Models VE-9x12(R/Y/B)-0P come without an adapter
panel, ideal for mounting non-Viking equipment. These
enclosures are available in all three colors and include
a separate “Telephone” label.
VE-9x12Y-0PVE-9x12R-0P VE-9x12B-0P
• Designed to meet NEMA/EEMAC Type 4/4X/12
requirements
• Constructed of heavy-duty UV stable polycarbonate /
ABS composite with flame-retardant UL 94 V-0 rating
• Drip guard and gasket sealed door
• 0.020” thick stamped aluminum “Telephone” label with
scratch resistant UV stable clear coat
• All models are available in Red, Yellow, or Black
• Three internal adapter panel options, see page 3
• Models available without internal adapter panel for
mounting other (non-Viking) products and include a
separate “Telephone” label
• Mounting holes for standard RJ11 wall plate available,
see section on page 4 Installation B
• Optional door return hinge spring available VE-SPG
• Optional push button lock and key set availableVE-PBL
Dimensions: SpecificationsSee on pages 2-3
Shipping Weight: SpecificationsSee on pages 2-3
Compatible Viking Products: See pages 6-7
Material: Heavy-duty UV stable polycarbonate / ABS composite
Colors: Red with silver lettering, yellow with red lettering, or
black with silver lettering
Flame Retardancy: Meets UL 94 V-0 rating
NEMA Rating: Designed to meet NEMA/EEMAC Type 4, 4X and
12 requirements
Applications
• Parking lots
• Maintenance areas
• Building exteriors
• Gas stations
• Swimming pools
• Playgrounds
• Roadside help areas
2
Specifications
9.375
12.6
E
E
E
P
H
N
O
T
L
6.50
7.08
10.725
11.23
(4) 8-32x0.5
Brass Inserts
2.754.14
7.45
Adapter
Panel
Location
7.20
7.20
3.6
Center Line

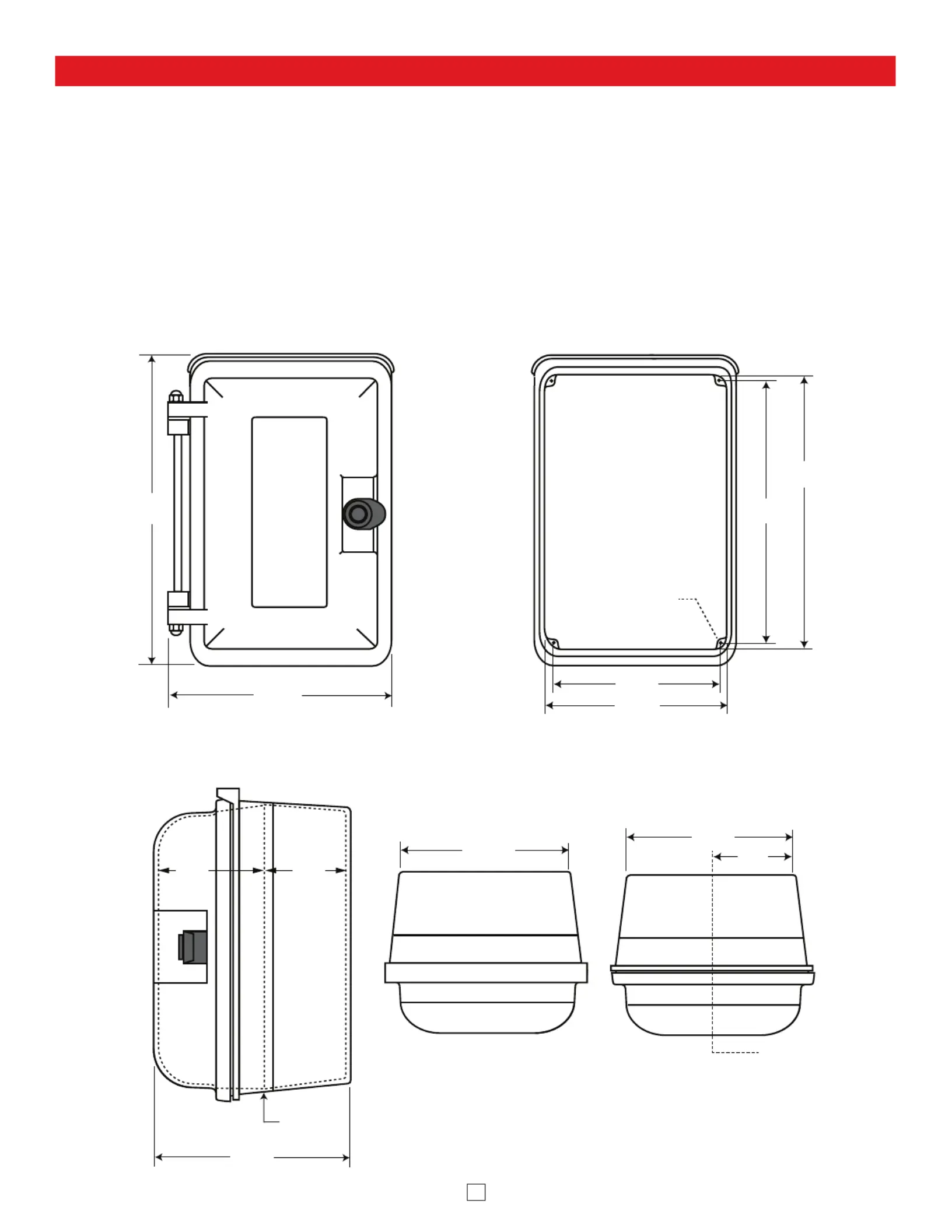

FRONT VIEW INSIDE VIEW
SIDE VIEW
TOP VIEW
BOTTOM VIEW
A. Enclosure
Material: Heavy-duty UV stable polycarbonate / ABS composite
Enclosure Shipping Weight (no adapter panel): 6.6 lbs (2.99 kg)
Mounting: Mounting holes can be drilled where needed in the back of the enclosure
*Conduit Openings: Conduit holes can be drilled where needed in the bottom of the enclosure
* CAUTION: When warm air comes in contact with cold surfaces, such as outside walls and conduits, it causes condensation. To prevent
condensation and moisture from accumulating inside the enclosure, always bring conduit into the bottom of the enclosure.VE-9x12
3
6.23
0.08
7.08
0.29
10.725
3.54
3.25
2.30
2.250
0.25
4.75
4.50
11.239.50
9.00
4.50
4.60
(4) 6-32
Clinch
Nuts
0.203
Diameter
4 Places

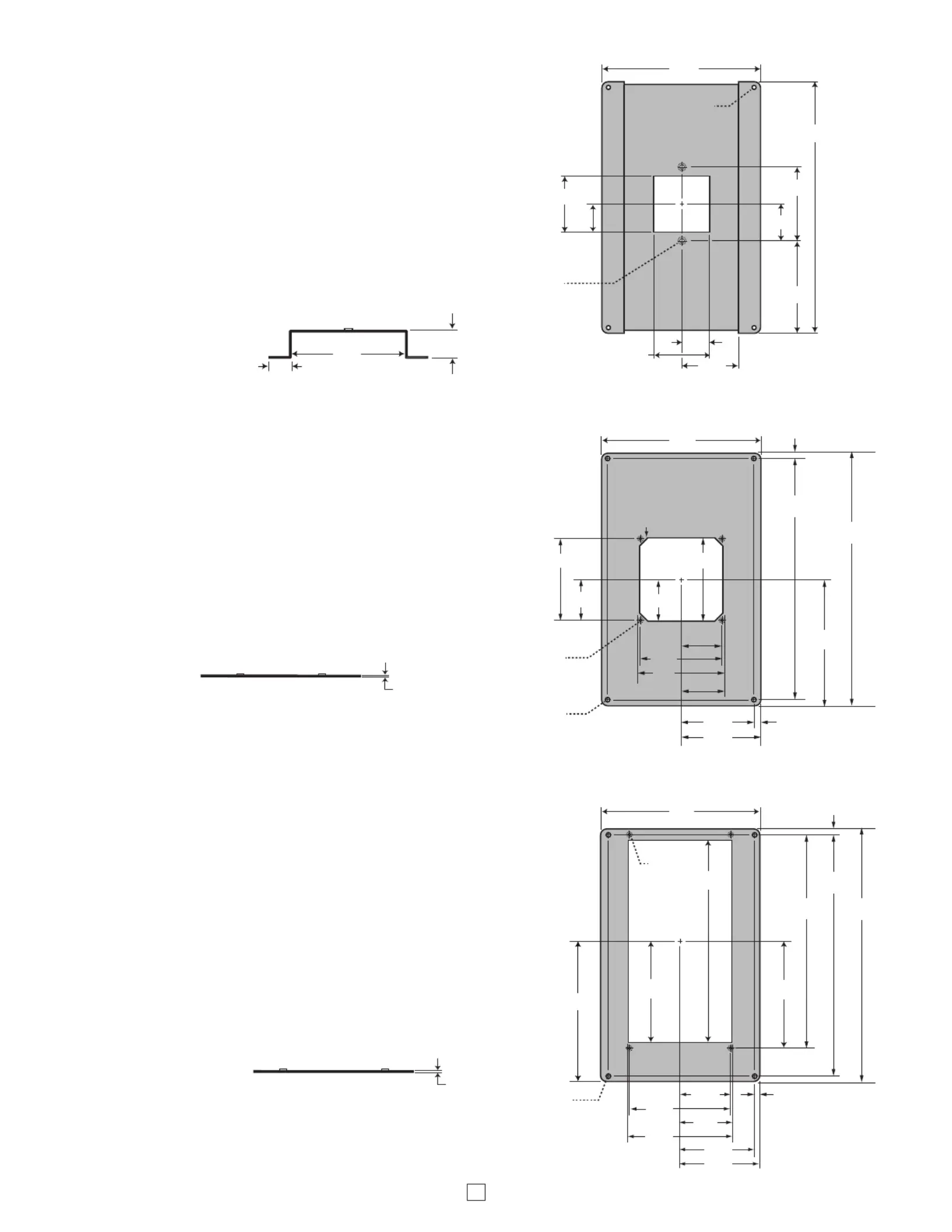

3. Adapter Panel 3
Material: 14 gauge aluminum
Finish: Black powder paint
Adapter Panel 3 Dimensions: 7.08”W x 11.23”H x 0.08”D
Adapter Panel 3 Shipping Weight: 0.3 lbs
VE-9x12(R/Y/B)-3P Shipping Weight: 6.9 lbs
Minimum Internal Clearance: 5.75”W x 10.0”H x 4.0”D
Adapter Panel 3 is also available for purchase separately, see
model on page 8.VE-9X12MK-3
2. Adapter Panel 2
Material: 12 gauge aluminum
Finish: Black powder paint
Adapter Panel 2 Dimensions: 7.08”W x 11.23”H x 0.08”D
Adapter Panel 2 Shipping Weight: 0.5 lbs
VE-9x12(R/Y/B)-2P Shipping Weight: 7.1 lbs
Minimum Internal Clearance: 5.75”W x 10.0”H x 4.0”D
Adapter Panel 2 is also available for purchase separately, see
model on page 8.VE-9X12MK-2
7.08
0.29
1.810
3.625
5.615
0.36 Typ.
3.25
3.625
3.54
3.70
1.81
(4) 6-32
Clinch Nuts
0.08
0.203
Diameter
4 Places
1.85
10.725
0.25
11.23
1.85
3.70
7.08
5.48
11.23
3.30
2.50
4.40
1.65
1.25
1.25
2.74
2.50
1.25
0.80
Typ.
(2) 8-32
Clinch Nuts
0.203
Diameter
4 Places
1. Adapter Panel 1
Material: 12 gauge aluminum
Finish: Black powder paint
Adapter Panel 1 Dimensions: 7.08”W x 11.23”H x 1.25”D
Adapter Panel 1 Shipping Weight: 0.8 lbs
VE-9x12(R/Y/B)-1P Shipping Weight: 7.4 lbs
Minimum Internal Clearance: 5.75”W x 10.0”H x 5.25”D
Adapter Panel 1 is also available for purchase separately, see
model on page 8.VE-9X12MK-1
TOP VIEW
FRONT
VIEW
B. Adapter Panels
TOP VIEW
FRONT
VIEW
TOP VIEW
FRONT
VIEW
