V20 SERIES
V20SGES3
1. Cabinet dimensions:
Height 820mm (40mm adjustable feet) Width 295mm
Depth (without handle) 575mm + 30mm spacer = 605mm
Depth (with handle) 575mm + 43mm handle + 30mm spacer = 648mm

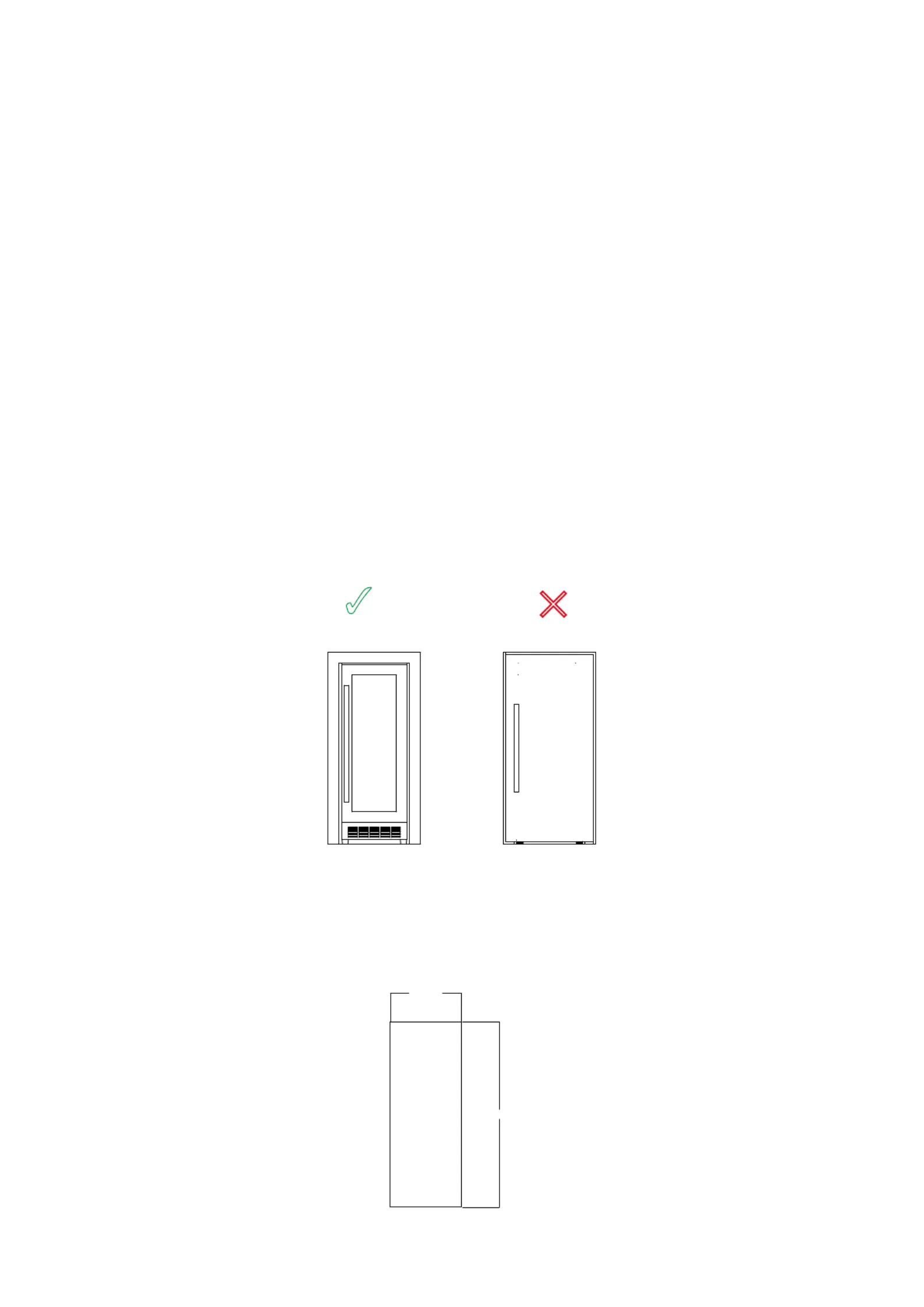

2. This cabinet is not designed to be fully integrated behind a joinery door.
3. Please note that a minimum cut out of 300mm x 825mm is required to facilitate instal-
lation, removal, ventilation and servicing.
UNDERBENCH INSTALLATION INSTRUCTIONS
These units are not designed for outdoor use – please see conditions at the end of this
information.
✓
✕
300.0
825.0
Minimum Cutout Diagram
5. This cabinet is front venting. The cabinet draws air from the rear and expels through
the grille under the door at the front. If a kick board is to be placed in front of the venti-
lation grill at the front a grill must be tted in to the kick board with a minimum air ow
allowance of 150cm2.
5mm
4. This cabinet requires 2.5mm clearance on both sides, 5mm at the top and 30mm
clearance at the rear. A ventilation grid MUST be installed in the 30mm clearance at the
rear. Because hot air rises it is imperative that a grille with a Minimum grid size of 200mm
x 40mm is installed at the top of the back wall or on either side at the rear at the top
giving cool fresh air full access to ow into the 30mm gap at the rear of the cabinet. This
means that you must not install the grille close to other appliances such as an oven or to
an area that is sealed or with out access to fresh cool air. (You MUST call the Vintec Ser-
vice Department on 1800 771 776 if you do not understand any part of this statement.
Failing to comply with the above specications could result in WARRANTY void.)
200
40
Suitable points for ventilation grille.
Note: Only one vent is required.
Benchtop
Correct power point location

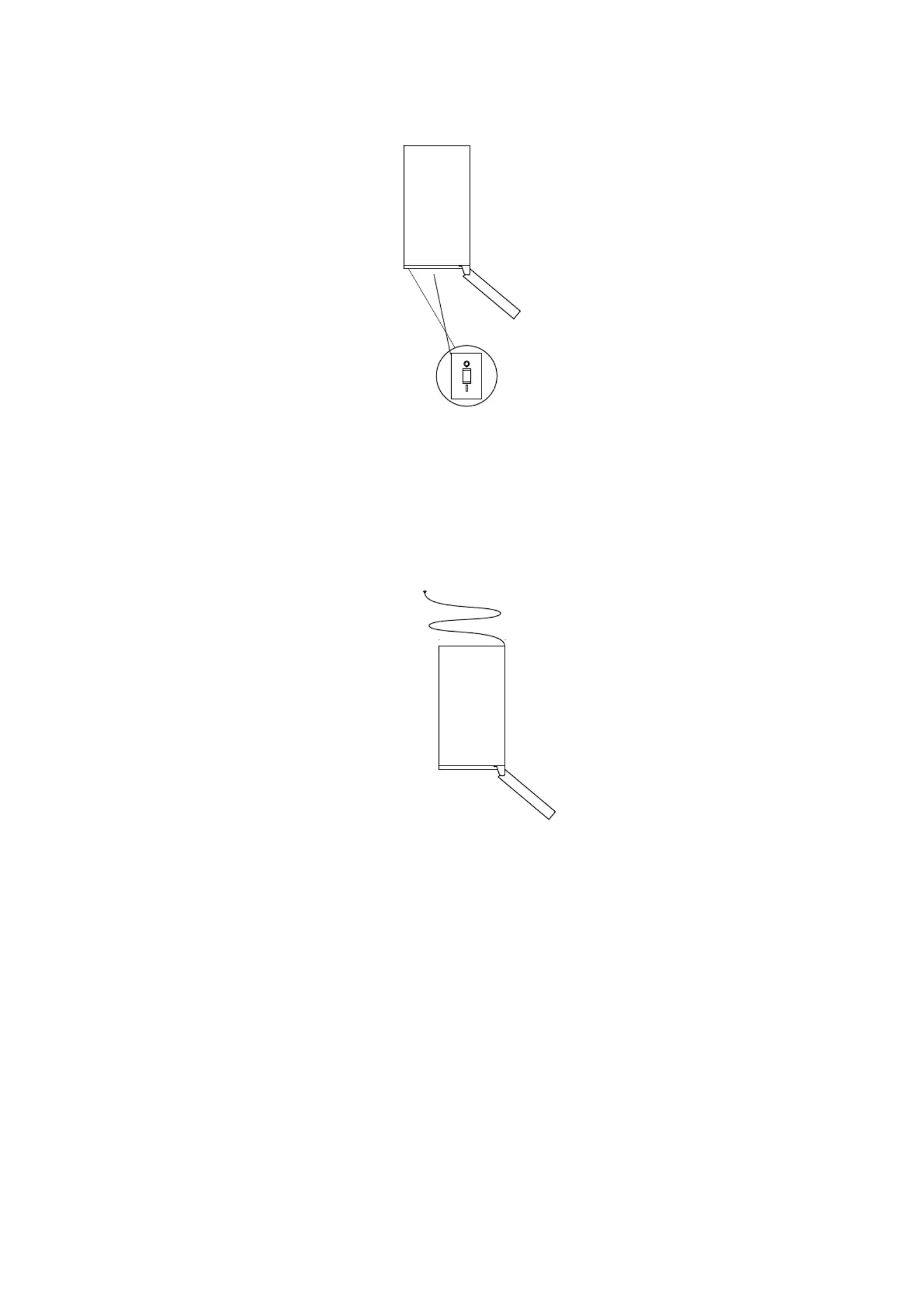

6. This cabinet has a power switch located on the control panel so powerpoint location is
not critical.
7. This cabinet requires a standard 240 volt/10 amp power point.
8. The power cord is 1.9m in length and is xed on the right side at the back when look-
ing from front of cabinet.
9. As with most appliances of today, this cabinet has sensitive electronic components
which are susceptible to damage through lightning and electricity supply faults. It is
therefore advised to use a power surge protector to avoid problems of this nature and to
avoid piggybacking with other appliances.
Further Instructions:
The location you have selected for your wine cellar should:
- be unencumbered and well ventilated;
- be well away from any heat source and direct sunlight;
- not be too damp (laundry, pantry, bathroom etc.);
- have a at oor,
- have a standard and reliable electricity supply (standard socket to country standards,
linked to the ground), it is NOT recommended to use a multi-socket or extension lead.
- have a surge protector tted to the electrical outlet away from the microwave.
Certain microwave ovens do not have wave interference shield. When placed within a 1
meter vicinity of the wine cabinet, they may aect the operation of the wine cabinet.
