Everything you need to get your TV safely on the wall, in no time

Before you start

…we just wanted to say thanks for choosing Vogel’s. Smart choice.

And you’re already making another smart choice – reading the manual! Keep reading to learn all

about safe, efficient installation, and how to use your new mount.

TVM 3210/3410/3610 Series - English

Stay safe

War

WarWarnin

nin

ninning

Always read these safety instructions carefully before installing and using this product.

Following these instructions is strictly required. Incorrect mounting and/or installation could

put you, your TV, and your family at substantial risk.

Don’t dare risk it… Read all

l

Vogel’s recommends that the mounting and/or installation of this product should be carried

out by a suitably qualified expert.

l

Vogel’s cannot be held responsible for any injury and/or damage caused by incorrect

installation.

l

Please consult the manual for your TV and ensure that the weight and size of the TV is within

the maximum weight and size limits specified for this product, and that the TV mounting bolts

used are of a suitable length and diameter. Note that not all the TV mounting accessories

provided are required for the installation of any one TV.

l

The wall mounting accessories provided are exclusively intended for installation on walls

made of solid brick, solid concrete or solid wood columns.

l

Any material covering the wall must not exceed 3 mm/ 0.12 inch.

l

For mounting on walls made of other materials, such as hollow bricks, wood panels or

plasterboard, please consult your installer and/or specialist supplier.

l

Clean the product with a dry, lint-free cloth. Do not use detergents or other solvents to clean

the product.

l

Only qualified, certified personnel may repair the product. Use only original spare parts. The

use of other parts will result in voiding the warranty, and could lead to injuries.

l

Alterations to the product and technical modifications are not permitted. This will void the

warranty, and could lead to injuries.

l

Always store the product in a dry and safe place with a temperature between -10°C to +50°C.

l

Handle and transport the product with care.

l

Repack the product when transporting or not using it for a longer period of time.

l

Lifting your TV is a two-person job. Don’t be bold!

TVM 3210/3410/3610 Series - English

What’s in your box?

l

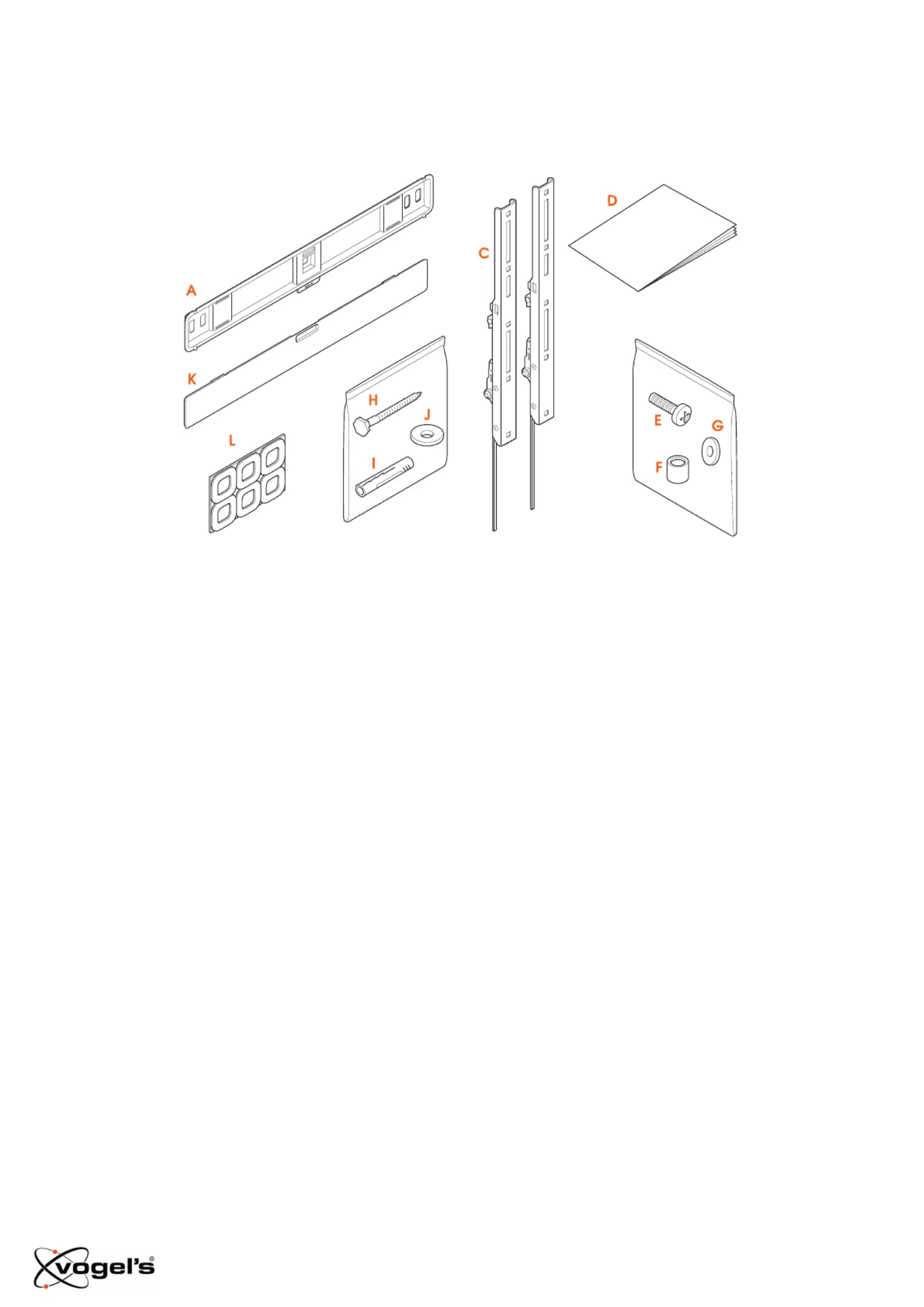

Something missing? Make sure your packaging has everything in place:

A. Wall mount

C. Strips

D. Safety instructions

E. Bolts for fastening strips on TV (see contents below)

F. Spacers

G. Washers Ø 18 mm

H. Screws

I. Plugs (fischer© DuoPower)

J. Washers Ø 22 mm

K. Cover

L. Protective TV patches

TVM 3210/3410/3610 Series - English

Produktspezifikationen

Marke:	Vogel's
Kategorie:	Wandstütze
Modell:	TVM 3615
Breite:	675 mm
Produktfarbe:	Schwarz
Höhe:	428 mm
Befestigungstyp:	Wand
Höchstgewichtskapazität:	35 kg
Neigungsverstellung:	Ja
Zertifizierung:	TUV
Warentarifnummer (HS):	85299097
Panel-Montage-Schnittstelle:	100 x 100,100 x 200,200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,500 x 200,500 x 300,500 x 400,600 x 200,600 x 300,600 x 400,200 x 300 mm
Neigungswinkelbereich:	0 - 20 °
Schnellinstallationsanleitung:	Ja
Maximale Bildschirmgröße:	77 "
Schrauben enthalten:	Ja
Anzahl der Display unterstützt:	1
Minimum Bildschirmgröße:	40 "
Minimale VESA-Halterung:	100 x 100 mm
Maximale VESA-Halterung:	600 x 400 mm
Abstand zur Wand (min):	34 mm
