RM7764HD

RM7764-2HD

7-inch Smart Wi-Fi 1080p

Pan and Tilt Monitor

What does HD Video Monitor do?

VTech 7-inch Smart Wi-Fi 1080p Pan and Tilt Monitor allows you to stay close to your baby when

you are on the move or away.

This monitor is Wi-Fi enabled, which uses your home wireless network to stream live video and

audio through the HD baby unit and 7-inch color screen parent unit. It allows you to maintain a

constant connection to your baby.

You can also monitor from your smartphone and mobile tablet.

VTech 7-inch Smart Wi-Fi 1080p Pan and Tilt Monitor uses MyVTech Baby Pro app to let you

instantly see and hear what’s happening with your baby from anywhere in the world.

The app can be downloaded from the App Store or the Google Play

TM

Store, directly from your

smartphone or mobile tablet.

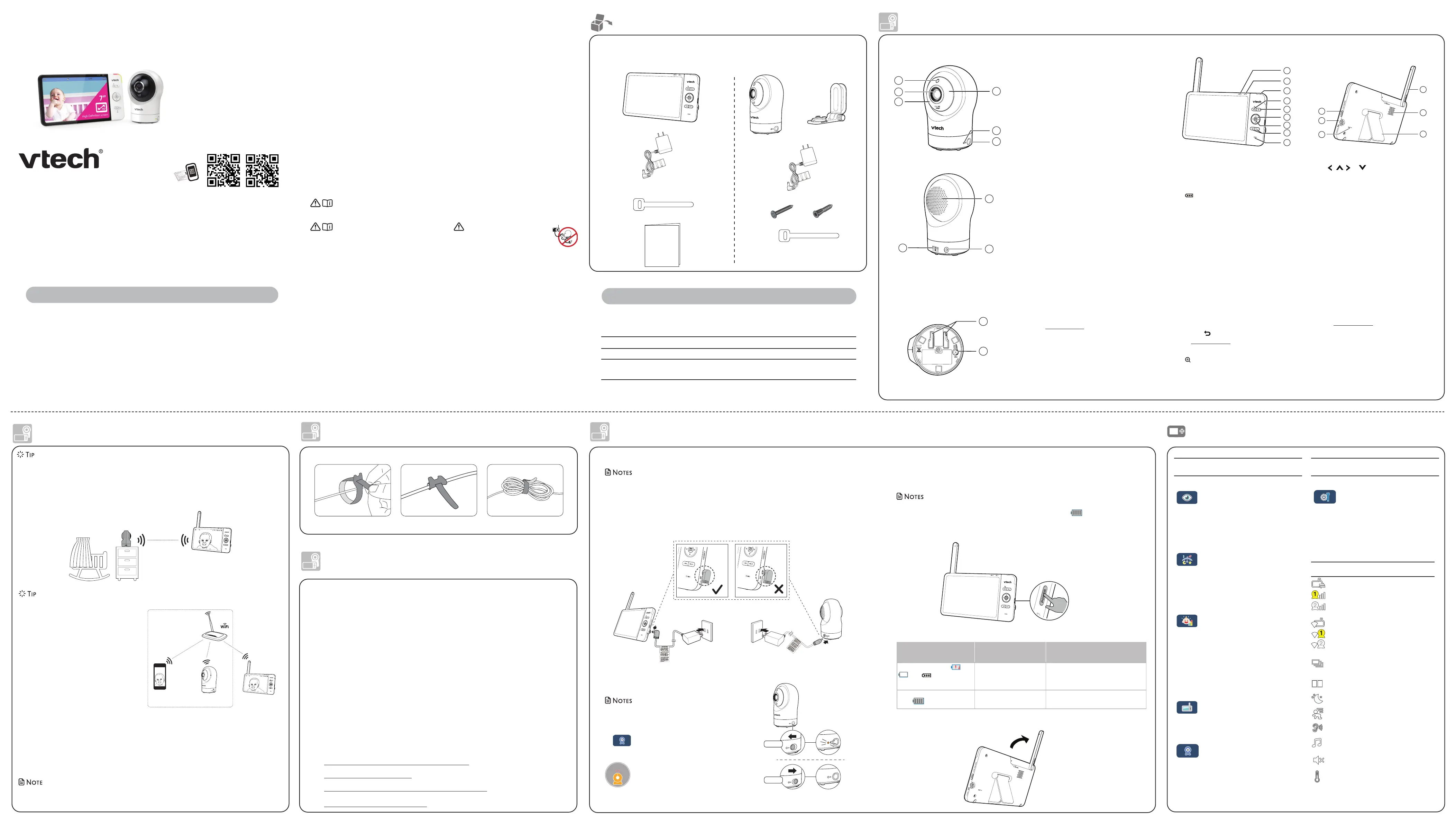

Quick start guide

Go to www.vtechphones.com

to register your product for

enhanced warranty support and

latest VTech product news.

RM7764HD

RM7764-2HD

For more support information

S

m

Congratulations

on purchasing your new VTech product.

Before using this HD video monitor, please read Important safety instructions.

For support, shopping, and everything new at VTech, visit our website at

www.vtechphones.com. In Canada, visit www.vtechcanada.com.

Direct mode

Your baby monitor parent unit and baby unit connect to each other in Direct mode by default,

which allows you to immediately stream video out of the box.

It is NOT recommended to continue using Direct Mode connection after initial installation.

You may experience reduced signal strength if your

parent unit and baby unit are far apart, or there are

obstructing factors, such as internal walls, between

them. You have to set up Router mode to connect

the units via your home Wi-Fi network to improve

the connection between your parent unit and baby

unit.

Wi-Fi Router mode

You are required to set up your monitor

in Router mode to enjoy live video

streaming via your parent unit with an

enhanced connection. Router mode

is the recommended mode for stable

connectivity.

Router mode uses your home Wi-Fi

network to connect your 2.4GHz video

monitor. It supports live video streaming through the parent unit and smartphone app.

If you want to stream live video remotely with your mobile device, download and install the

MyVTech Baby Pro mobile app. With the mobile app, your Wi-Fi router (not included) provides

Internet connectivity to your HD video monitor system. It serves as a communicating channel

between your baby unit and mobile device, allowing you to monitor and/or control your baby

unit wherever you are. For more details, see Download app for mobile access section in this

quick start guide.

• When both parent unit and app are viewing the camera simultaneously, the video quality will be optimised

to deliver the best possible viewing result.

Overview

What’s in the box

Connect, charge and power on the baby monitor

x 2

x 2

Quick start guide

Your HD video monitor package contains the following items. Save your sales receipt and

original packaging in the event warranty service is necessary.

Strangulation

Hazard

Keep this cord

out ofreach of children.

The co

r

d ne

eds to be at least three

f

ee

t

away fr

o

m the child at all times. Do

not

use with an extension

cord. Do not

re

move this ta

g.

Éloignez ce cordon des enfants. Le

cordon doit s

e t

rouver à au moins trois

pieds d’un enfant et ce, en tout temps.

N’

ut

il

isez

pas

d

e ra

llon

ge.

N

e

ret

ir

ez

pas

cette étiq

uette.

M

an

tenga este cable f

u

era de la alcance

de los niños. Este cable debe estar por

lo menos tres pies fuera de la alcance

del niño en todo momento. No lo

u

se

con

u

n

a extensión inalámbrica. N

o

quite

es

t

a etiqueta.

Risque

d’

étr

anglement

Riesgo de

est

ra

ngula

c

ión

Strangulation

Hazard

Keep this cord

out ofreachof children.

The co

r

d ne

eds to be at least three

f

ee

t

away fr

o

m the child at all times. Do

not

use with an extension cord. Do not

re

move this ta

g.

Éloignez ce cordon des enfants. Le

cordon doit se t

rouver à au moins trois

pieds d’un enfant et ce, en tout temps.

N’

ut

il

isez

pas

d

e

ra

llon

ge.

N

e

ret

ir

ez

pas

cette étiq

uette.

M

an

tenga este cable f

u

era de la alcance

de los niños. Este cable debe estar por

lo menos tres pies fuera de la alcance

del niño en todo momento. No lo

u

se

con

u

n

a extensión inalámbrica. N

o

quite

es

t

a etiqueta.

Risque

d’

étr

anglement

Riesgo de

est

ra

ngula

c

ión

Parent unit icons

For mobile access:

MyVTech Baby Pro mobile app

NetworkWi-Fi

Wi-Fi router2.4GHz 802.11 b/g/n

Internet connection

1.5 Mbps @ 720p or 2.5 Mbps @1080p upload

bandwidth per baby unit

Requirements

Main

Menu

Options

Monitoring mode (* For RM7764-2HD only)

• View baby unit 1 or 2 in Single

mode.

• View both baby units in Patrol

mode.

• View both baby units in Split

screen.

Melodies and soothing sounds

• Select play all melodies, or play

one of the five melodies and

four soothing sounds.

• You can also set the timer to

stop playing after 15, 30 or 60

minutes, or playing non-stop.

Alerts - Sound, motion and temperature

• Select the sound and motion

sensitivity level.

• Turn on/off sound and motion

detection alerts.

• Select maximum and minimum

temperature for alert range.

• Turn on/off temperature alert.

• Turn on/off Auto Wake Up

function.

Parent unit settings

• Adjust parent unit screen

brightness.

• Turn on/off dim mode.

Baby unit settings

• Turn on/off Night Vision.

• Turn on/off baby unit’s status LED.

• Adjust baby unit’s speaker

volume.

• Update baby unit’s security key.

Main

Menu

Options

General settings

• Connect to home Wi-Fi network.

• Turn on/off Parent unit Wi-Fi

Connection.

• Connect mobile phone.

• Turn on/off Low Battery Alert Tone.

• Turn on/off No Link Alert Tone.

Parent unit overview

1LINK LED light

• On when the parent unit is linked to the

baby unit.

• Flashes when the link to the baby unit

is lost.

2

LED light

• On when the parent unit is connected to

AC power, and the battery is charging.

• Off when the parent unit is

disconnected from AC power, or when

the parent unit is connected to AC

power and the battery is fully-charged.

• Flashes when the parent unit battery is

low and needs charging.

33- level sound indicator light

• Green on when low sound level is

detected by the baby unit.

• Green and amber on when moderate

sound level is detected by the baby

unit.

• Green, amber and red on when high

sound level is detected by the baby

unit.

4

TALK /

• Press and hold to talk to the baby unit.

• While in a submenu, press to exit.

5

• Press to zoom in/out.

6Arrow keys

, , or

• Press to navigate leftward, upward,

rightward or downward, within the

main menu and submenus.

• While viewing image from the

baby unit, press to pan the baby

unit leftward, upward, rightward or

downward.

• While viewing zoomed image, press

to move the zoomed image leftward,

upward, rightward or downward.

7MENU/SELECT

• Press to enter the main menu.

• While in a menu, press to choose an

item, or save a setting.

8- VOL/ VOL +

• Increase or decrease parent unit’s

volume.

9Microphone

10POWER / LCD ON/OFF

• Press and hold to power on or off.

• Press to turn on or off the LCD screen.

11Power jack

12RESET

• Force reboot the parent unit.

13Antenna

14Speaker

15Stand

Connect the baby monitor

• The rechargeable battery in the parent unit is built-in.

• Use only the power adapters supplied with this product.

• Make sure the parent unit and the baby unit are not connected to the switch controlled electric outlets.

• Connect the power adapters in a vertical or floor mount position only. The adapters’ prongs are not

designed to hold the weight of the parent unit and the baby unit, so do not connect them to any ceiling,

under-the-table, or cabinet outlets. Otherwise, the adapters may not properly connect to the outlets.

• Make sure the parent unit, the baby unit and the power adapter cords are out of reach of children.

Charge the parent unit battery before use

The parent unit runs on rechargeable battery or AC power. To continuously monitor your

baby, keep the parent unit connected to AC power. With the battery alone, the parent unit

can cordlessly run for a short time only.

• Before using the baby monitor for the first time, charge the parent unit battery for 12 hours. When

the parent unit battery is fully charged, the battery icon becomes solid .

• The standby time varies depending on your actual use.

After the parent unit is fully charged, press POWER until the welcoming screen appears.

The battery icon indicates the battery status (see the following table).

Battery indicatorsBattery statusAction

The screen displays and

. The light flashes.

The battery has very little

charge and may be used

for only a short time.

Charge

without interruption

(about

30 minutes).

The battery icon becomes

solid .

The battery is fully

charged.

To keep the battery charged, connect

it to AC power when not in use.

Raise the parent unit antenna for better reception

Slide the switch to ON to power on your baby unit.

• When powering up, the baby unit’s status LED turns on.

It will turn off after a while and keeps off.

• The status LED is set to off by default. If you want to

keep the LED on, press MENU, then go to

> Status LED and turn it on.

1 set for RM7764HD

2 sets for RM7764-2HD

Status icons

Direct mode

Parent unit, baby unit 1 and baby unit 2

(*For RM7764-2HD only) are connected

to each others directly.

Router mode

Parent unit, baby unit 1 and baby unit 2

(*For RM7764-2HD only) are connected

to home Wi-Fi network.

Baby unit 1 and 2 are being viewed in

Patrol mode (*For RM7764-2HD only).

Baby unit 1 and 2 are being viewed in

Split mode (*For RM7764-2HD only).

Night vision is turned on.

Motion alert is turned on.

Sound detection alert is turned on.

Melodies and soothing sounds are

turned on.

Parent unit speaker is muted.

Temperature alert is turned on.

How the system works

Mobile access

Enhanced local access

NOTE:

Camera lens and surface may get

warm during normal operation.

WARM

WARM

Baby unit overview

1Light sensor

2Camera lens

3Microphone

4Infrared LEDs

• Allow you to see clearly in a dark

surrounding.

5LED indicator

• Orange is steady on when the baby unit

is connecting to the parent unit directly

in local mode.

• Green is steady on when the baby unit

and parent unit are connecting to your

home Wi-Fi network via the Wi-Fi router.

• Flashes orange slowly during video

streaming in local mode.

• Flashes green slowly during video

streaming via home Wi-Fi network.

6ON

• Power on/off switch.

7Speaker

8Power jack

9Temperature sensor

10Slots for wall mounting

• Wall mount bracket is included in your

package.

11PAIR

• Reset the baby unit to factory default.

1. Press and hold PAIR key until you

hear a beep sound.

2. Release the PAIR key, and then

press the PAIR key again five times

until you hear another beep sound.

3. The baby unit will sound another

beep when the reset completes.

Then, the baby unit will reboot.

1

2

3

5

6

4

7

8

9

10

11

1

2

3

5

6

4

7

8

9

10

11

1

2

3

5

6

4

7

8

9

10

11

2

1

3

4

5

6

7

8

9

12

13

14

15

11

10

Power on

Power o

Protect your privacy and online security

VTech cares about your privacy and peace of mind. That’s why we’ve put together a list of industry-

recommended best practices to help keep your wireless connection private and your devices protected

when online. We recommend you carefully review and consider complying with the following tips.

Ensure your wireless connection is secure.

• Before installing a device, ensure your router’s wireless signal is encrypted by selecting the “WPA2-

PSK with AES” setting in your router’s wireless security menu.

Change default settings.

• Change your wireless router’s default wireless network name (SSID) to something unique.

• Change default passwords to unique, strong passwords. A strong password:

- Is at least 10 characters long.

- Is complex.

- Does not contain dictionary words or personal information.

- Contains a mix of uppercase letters, lowercase letters, special characters and numbers.

Keep your devices up to date.

• Download security patches from manufacturers as soon as they become available. This will ensure

you always have the latest security updates.

• If the feature is available, enable automatic updates for future releases.

Disable Universal Plug and Play (UPnP) on your router.

• UPnP enabled on a router can limit the effectiveness of your firewall by allowing other network

devices to open inbound ports without any intervention or approval from you. A virus or other

malware program could use this function to compromise security for the entire network.

For more information on wireless connections and protecting your data, please review the following

resources from industry experts:

1. Federal Communications Commission: Wireless Connections and Bluetooth Security Tips –

www.fcc.gov/consumers/guides/how-protect-yourself-online.

2. U.S. Department of Homeland Security: Before You Connect a New Computer to the Internet –

www.us-cert.gov/ncas/tips/ST15-003.

3. Federal Trade Commission: Using IP Cameras Safely –

https://www.consumer.ftc.gov/articles/0382-using-ip-cameras-safely.

4. Wi-Fi Alliance: Discover Wi-Fi Security –

http://www.wi-fi.org/discover-wi-fi/security.

CABLE MANAGEMENT

123

The applied nameplate is located at the bottom of the baby

unit’s base.

When using your equipment, basic safety precautions

should always be followed to reduce the risk of fire, electric

shock and injury, including the following:

1. Follow all warnings and instructions marked on the

product.

2. Adult setup is required.

3. CAUTION: Do not install the baby unit at a height above

2 meters.

4. This product is not a substitute for adult supervision of the

infant. Supervising the infant is the parent’s or caregiver’s

responsibility. This product could cease operating, and

therefore you should not assume it will continue working

properly for any given period of time. Further, this is not a

medical device and should not be used as such. This product

is intended to assist you in supervising your baby.

5. Do not use this product near water. For example, do not

use it next to a bath tub, wash bowl, kitchen sink, laundry

tub or swimming pool, or in a wet basement or shower.

6. CAUTION: Use only the battery provided. There may be a risk

of explosion if a wrong type of battery is used for the parent

unit. The battery cannot be subjected to high or low extreme

temperature and low air pressure at high altitude during use,

storage or transportation. Disposal of battery into fire or a hot

oven, or mechanically crushing or cutting or the battery can

result in an explosion. Leaving the battery in an extremely

high temperature surrounding environment can result in an

explosion or the leakage of flammable liquid of gas. Battery

subjected to extremely low air pressure may result in an

explosion or the leakage of flammable liquid or gas. Dispose of

used battery according to the information in The RBRC seal.

7. Use only the adapters included with this product.

Incorrect adapter polarity or voltage can seriously

damage the product.

Power adapter information:

Parent unit and baby unit output: 5V DC 2A

VTech Telecommunications Ltd.

Model: VT07EUS05200

Rechargeable battery information:

3.8V 5000mAh Lithium-ion Polymer battery

Zhongshan Tianmao Battery Co., Ltd.

Model Number: BP1763

8. The power adapters are intended to be correctly oriented

in a vertical or floor mount position. The prongs are not

designed to hold the plug in place if it is plugged into a

ceiling, under-the-table or cabinet outlet.

9. For pluggable equipment, the socket-outlet shall

be installed near the equipment and shall be easily

accessible.

10. Unplug this product from the wall outlet before cleaning.

Do not use liquid or aerosol cleaners. Use a damp cloth for

cleaning.

11. Do not cut off the power adapters to replace them with

other plugs, as this causes a hazardous situation.

12. Do not allow anything to rest on the power cords. Do not

install this product where the cords may be walked on or

crimped.

13. This product should be operated only from the type

of power source indicated on the marking label. If you

are not sure of the type of power supply in your home,

consult your dealer or local power company.

14. The equipment is to be supplied from an identified USB

port complying with the requirements of Limited Power

Source.

15. Do not overload wall outlets or use an extension cord.

16. Do not place this product on an unstable table, shelf, stand

or other unstable surfaces.

17. This product should not be placed in any area where

proper ventilation is not provided. Slots and openings

in the back or bottom of this product are provided for

ventilation. To protect them from overheating, these

openings must not be blocked by placing the product

on a soft surface such as a bed, sofa or rug. This product

should never be placed near or over a radiator or heat

register.

18. Never push objects of any kind into this product through

the slots because they may touch dangerous voltage

points or create a short circuit. Never spill liquid of any

kind on the product.

19. To reduce the risk of electric shock, do not disassemble

this product, but take it to an authorized service facility.

Opening or removing parts of the product other than

specified access doors may expose you to dangerous

voltages or other risks. Incorrect reassembling can

cause electric shock when the product is subsequently

used.

20. You should test the sound reception every time you turn

on the units or move one of the components.

21. Periodically examine all components for damage.

22. There is a very low risk of privacy loss when using certain

electronic devices, such as baby monitors, cordless

telephones, etc. To protect your privacy, make sure the

product has never been used before purchase, reset

the baby monitor periodically by powering off and then

powering on the units, and power off the baby monitor

if you will not use it for some time.

23. Children should be supervised to ensure that they do not

play with the product.

24. The product is not intended for use by persons (including

children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning

use of the appliance by a person responsible for their

safety.

SAVE THESE INSTRUCTIONS

Cautions

1. Use and store the product at a temperature between 0

o

C

and 40

o

C.

2. Do not expose the product to extreme cold, heat or direct

sunlight. Do not put the product close to a heating source.

3. Batteries should not be exposed to excessive heat such as

bright sunshine or fire.

4. Warning—Strangulation Hazard—

Children have STRANGLED in cords. Keep

this cord out of the reach of children (more

than 0.9m away. Do not remove this tag.

5. Never place the baby unit(s) inside the

baby’s crib or playpen. Never cover the baby unit(s) or

parent unit with anything such as a towel or a blanket.

6. Other electronic products may cause interference

with your baby monitor. Try installing your baby

monitor as far away from these electronic devices

as possible: wireless routers, radios, cellular

telephones, intercoms, room monitors, televisions,

personal computers, kitchen appliances and cordless

telephones.

Precautions for users of implanted cardiac pacemakers

Cardiac pacemakers (applies only to digital cordless devices):

Wireless Technology Research, LLC (WTR), an independent

research entity, led a multidisciplinary evaluation of the

interference between portable wireless devices and

implanted cardiac pacemakers. Supported by the U.S. Food

and Drug Administration, WTR recommends to physicians that:

Pacemaker patients

• Should keep wireless devices at least six inches from the

pacemaker.

• Should NOT place wireless devices directly over the

pacemaker, such as in a breast pocket, when it is turned ON.

WTR’s evaluation did not identify any risk to bystanders with

pacemakers from other persons using wireless devices.

Electromagnetic elds (EMF)

This VTech product complies with all standards regarding

electromagnetic fields (EMF). If handled properly and

according to the instructions in this user’s manual, the product

is safe to be used based on scientific evidence available today.

Important safety instructions

For better security and more stable connectivity, this baby monitor requires connecting

to a 2.4GHz home Wi-Fi network and operating in Router mode connection.

Local access

Local access, for

start up quick view

and setup stage.

Produktspezifikationen
