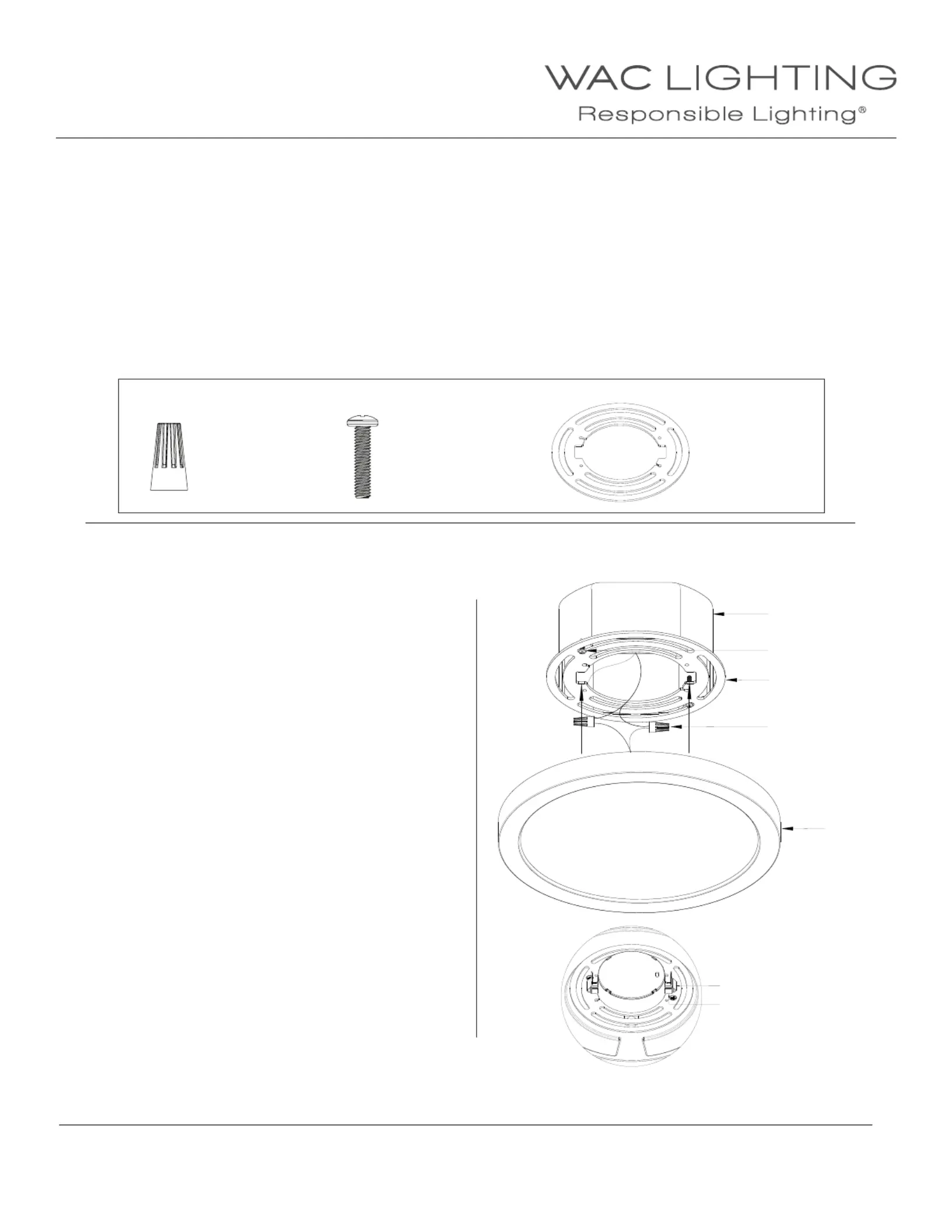

INSTALLATION INSTRUCTION
ROUND
FM-0RN5
WARNING
IMPORTANT: NEVER attempt any work without shutting o the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or
switch ”OFF” the circuit breaker switch(es) that control the power to the xture or room that you are working on.
- Place the wall switch in the “OFF” position.
- Supply conductors (Power Wires) Connecting the xture must be rated minimum 90°C. If uncertain, consult an electrician.
CAUTIONS
- These luminaires (xtures) are designed to meet the latest NEC requirements and are listed in full compliance with UL 1598.
- Before attempting installation, check your local electrical code, as it sets the wiring standards for your locality.
Fig. 1
Fig. 2(back of the fixture once clipped into the mounting plate)
1.
Install plate the the provided mounting to junction box using
the junction box screw provided s.
2. Provide electrical service according to the “National Electrical
Code” or your local electrical code to the outlet box.
3
. Connect supply wires to fixture wires and insulate with
proper wire nuts:
Connect incoming ground wire to ground wire mounting plate
(green or bare).
Connect incoming common wire to xture common (white).
Connect incoming hot wire to xture black wire.
4.
Raise the fixture to the junction box, guide the spring clips into
the slots in the mounting plate and press the front of the
fixture firmly at the clip locationsto lock the fixture in place.
Note: To ensure an easier installation, press one side of the
fixture in first until you hear a click, then repeat with the other
side.
Wire Connector
Qty: 3 pcs
P3
INCLUDED ACCESSORIES BAG
Junction Box Screw
Qty: 2 pcs
#8-32, * 3/4”
Stainless Steel
3", 4" or electrical 3/0-4/0
box, (by others)
Fixture
INSTALLATION
Uses ” junction box or a combination 3, 4" junction box
3/0-4/0 electrical box.
Wire Connector
Spring Clip
Spring Clip Slot
Mounting Plate
Qty: pc1
Junction Box Mounting Screw
Mounting Plate
5.
For outdoor wall installation, use clear caulking
(i.e. indoor/outdoor silicone sealant) to outline the outside of
the fixture where it meets the wall to prevent moisture from
entering
the outlet box and causing a short. Leave a space
at the bottom to allow moisture to escape.
