INSTALLATION INSTRUCTION
LED DISC
FM-309-9CSJB
WARNING
IMPORTANT: NEVER attempt any work without shutting off the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualified electrician in accordance with the National Electrical Code and local regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or
switch ”OFF” the circuit breaker switch(es) that control the power to the fixture or room that you are working on.
- Place the wall switch in the “OFF” position.
- Supply conductors (Power Wires) Connecting the fixture must be rated minimum 90°C. If uncertain, consult an electrician.
CAUTIONS
- These luminaires (fixtures) are designed to meet the latest NEC requirements and are listed in full compliance with UL 1598.
- Before attempting installation, check your local electrical code, as it sets the wiring standards for your locality.

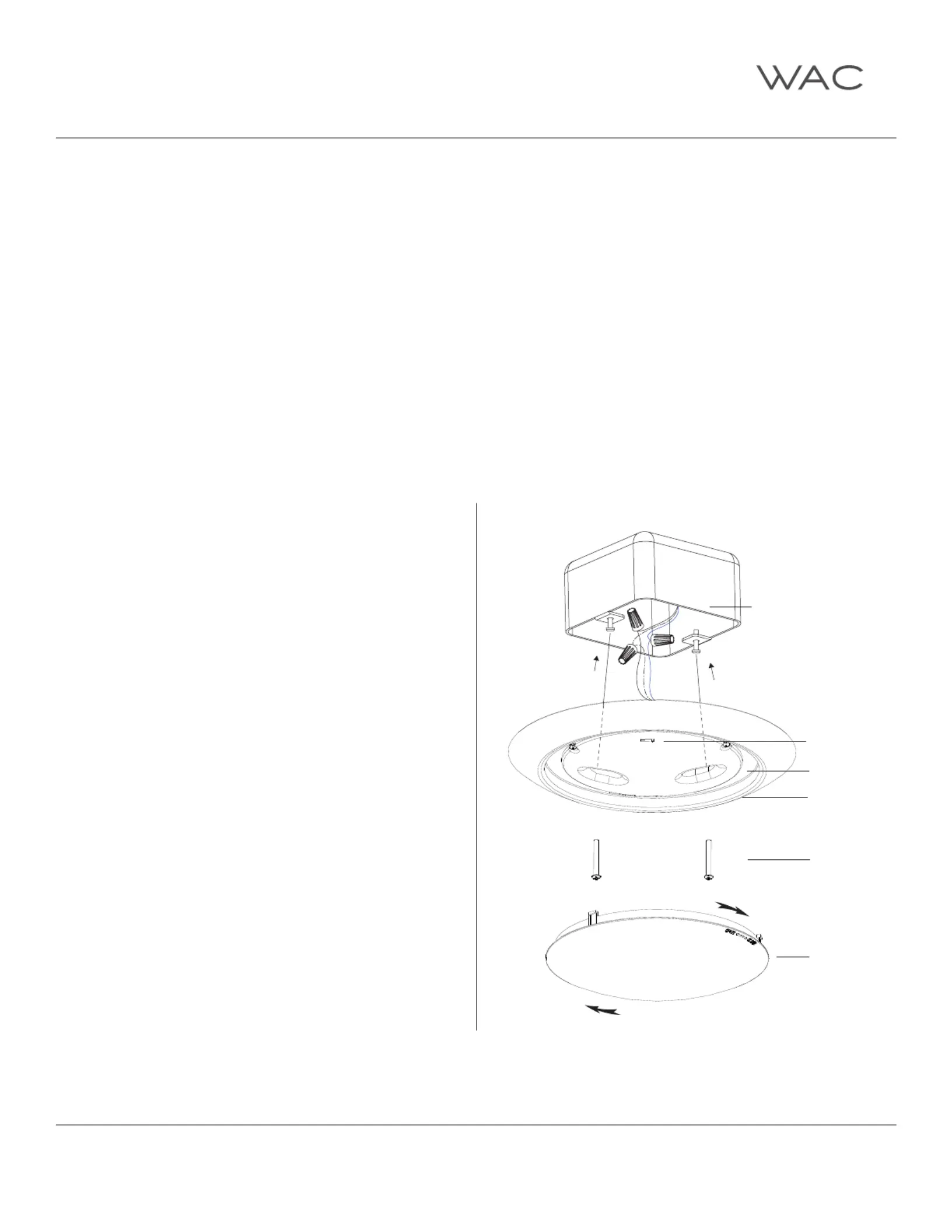

Fig. 1
1.Provide electrical service according to the “National Electrical
Code” or your local electrical code to the outlet box.
2.Connect supply wires to fixture wires and insulate with proper
size wire nuts ().Fig. 1
3.Connect incoming ground wire (green or bare) to fixture ground
wire (green or bare).
4.Connect incoming common (white) wire to fixture common
(white).
5.Connect incoming hot (typically black) wire to fixture black wire.
6.fasten in place with Raise the disc light to the junction box and
mounting screw.
LENS INSTALLATION
Twist the lens clockwise on disc light metal enclosure and lock the
lens in place.
Outlet Box (not included)
Mount Screwing
Mounting Holes
Disc Light
Ground
Lens
INSTALLATION
Over standard 3", 4" or 3/0-4/0
combination electrical junction box
SETTING COLOR TEMPERATURE
Once the fixture is fastened, use the switch on the front of the
fixture to selected desired color temperature.
CCTSwitch
