WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JULY, 2014
INSTALLATION INSTRUCTION
Impulse LEDme® Track Luminaires
H-LED810, L-LED810, J-LED810
CAUTION
• For Use with WAC “J”, “J2”,”L”, & ”H” track systems. Fixture may also be used on other manufacturers’ brands of track. (Consult
factory for compatibility)
• Read all instructions before installing.

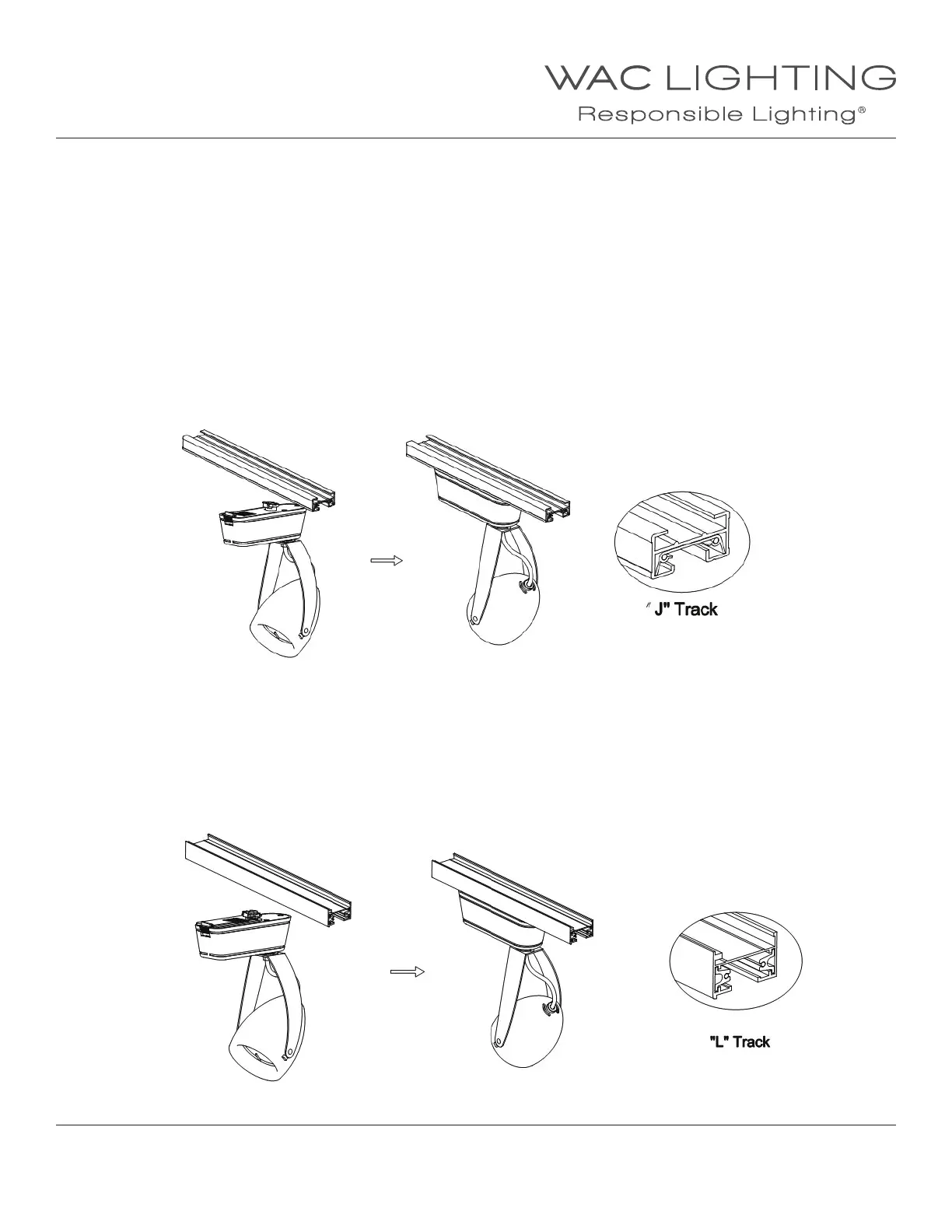

INSTALLATION ON TRACK:
Fixture Installation for J-LED810
1. Fixtures are designed for use on “J” series WAC Lighting track only. They may also be used on other manufacturers’
brands of track. (Consult factory for compatibility)
Note:The track has a groove running its length to indicate polarity, and the locking tab has a slant for easy installation.
2. Insert adapter into track slot and rotate it 90°, The “P” contact and low side of the locking tab should point
to the grooved side of the tack.
3. Make sure the locking tab seat properly in the track slot.
4. Reverse procedure to remove. Track heads may be positioned anywhere along the track.
FIXTURE INSTALLATION FOR LLED810
1. Fixtures are designed for use on “L” series WAC Lighting track only. They may also be used on other manufacturers’ brands of
track. (Consult factory for compatibility)
Note: The track has a ridge running its length to indicate polarity, and the locking tab has a slant for easy installation.
2. Insert adapter into track slot and rotate it 90, so that the low side of the locking tab faces the ridged side of the track.
3. Make sure the locking tabs seat properly in the track slot.
4. Reverse procedure to remove. Track heads may be positioned anywhere along the track.
