INSTALLATION INSTRUCTION

160 Low Voltage Track Luminaires

HHT-160, LHT-160, JHT-160 (Available in LED)

CAUTION:

Read all instructions before installing.

Switch o power before installing or re-lamping.

Do not attempt to energize anything other than a track light xture.

All installation shall be in accordance with NEC and all local codes.

OVERVIEW:

Fixtures are designed for use on on WAC “L” , “H” , “J” series track.

They may also be used on other manufacturer’s brand of track

(consult factory for compatibility).

LAMPING:

1.Use dimmable MR16 Lamp (LED Lamp included when

purchased as LED).

2. Insert lamp into the shade so the lamp pins protrude

through the back.

3.Place pins in the socket holes and twist 1/4” to the right.

The lamp should feel firmly seated.

4.Seat the lamp under the “V” spring of the gimbal ring.

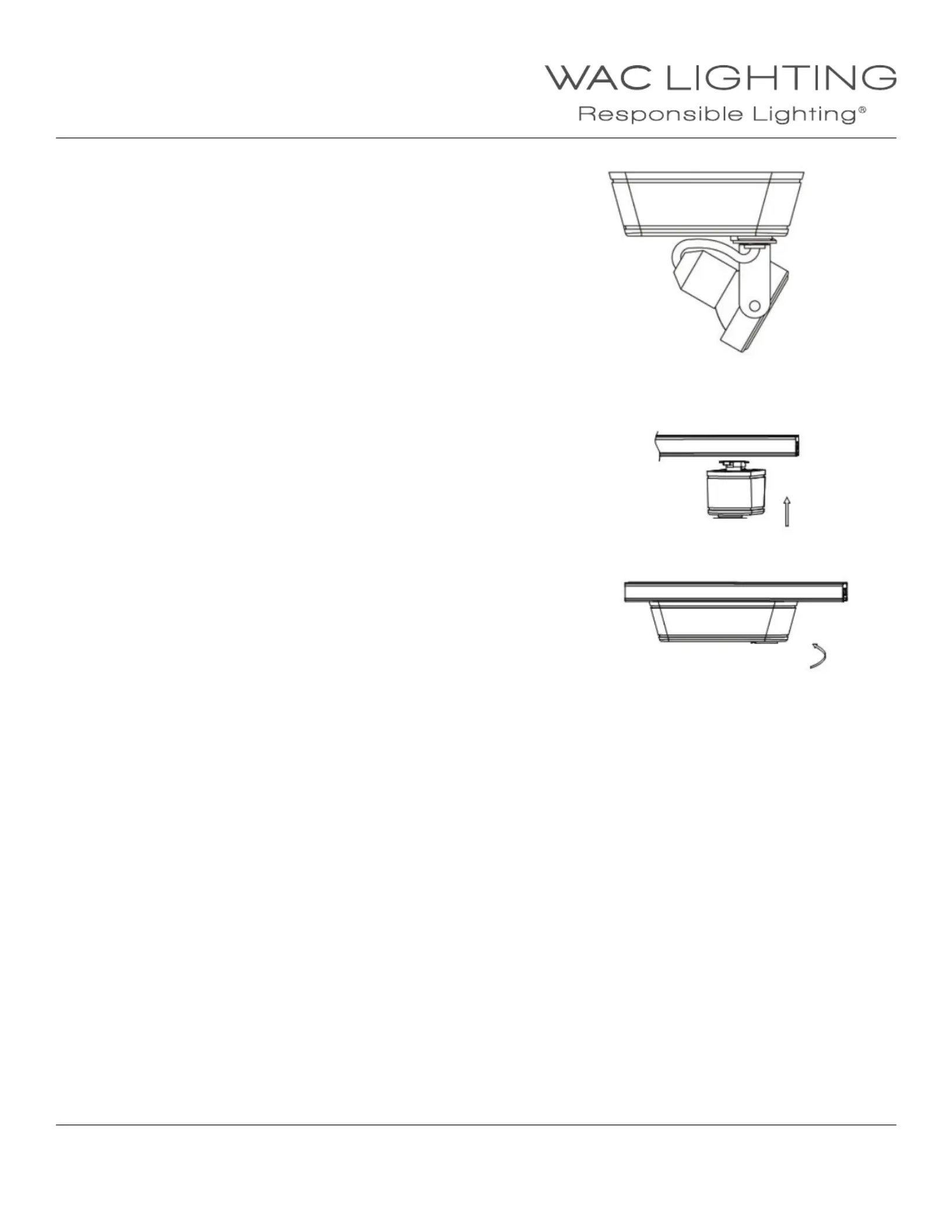

FIXTURE INSTALLATION

1.Note the track has a groove running it’s length to indicate polarity.

2.Note the arrow on the locking tab.

3.Insert adapter into track slot and rotate it 90°. The arrow should

point to the grooved side of the track.

4.Make sure the locking tab seats in the track slot.

5.Removal is the reverse procedure. Track heads may be positioned

anywhere along the track length.
