WARNING
IMPORTANT: NEVER attempt to do any work without shutting o the electricity.
• Read all instructions before installing.
• System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.
• Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch “OFF” the
circuit breaker switch(es) that control the power to the xture or room that you are working on.
• Place the wall switch in the “OFF” position.
AVERTISSEMENT
IMPORTANT: Coupez l’électricité avant TOUTE manipulation.
• Lisez toutes les instructions avant d’installer.
• Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les règlements locaux.
• Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt (« OFF »).
• Placez l’interrupteur mural en position d’arrêt (« OFF »).
CAUTION
All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out or
broken. Failure to follow this instruction could invalidate the ETL/cETL listing of this xture.
OVERVIEW:
Housing models below are New Construction, Airtight IC:
Trimmed: R1GNT02 / R1GNTA02, R1GNT04 / R1GNTA04, R1GNT06 / R1GNTA06, R1GNT08 / R1GNTA08
Trimless: R1GNL02 / R1GNLA02, R1GNL04 / R1GNLA04, R1GNL06 / R1GNLA06, R1GNL08 / R1GNLA08
Housing models below are New Construction, Airtight Non-IC:
Trimmed: R1GNT12 / R1GNTA12
Trimless: R1GNL12 / R1GNLA12
Each housing requires a trim for a nished look. Refer to specication sheets for compatible trim options.
SPECIFICATIONS
Input:120-277V, 50/60Hz
Dimming:ELV/TRIAC (120V Only) / 0-10V
Ceiling Thickness:
½” up to 1½” for Compatible Trims
INSTALLATION INSTRUCTION

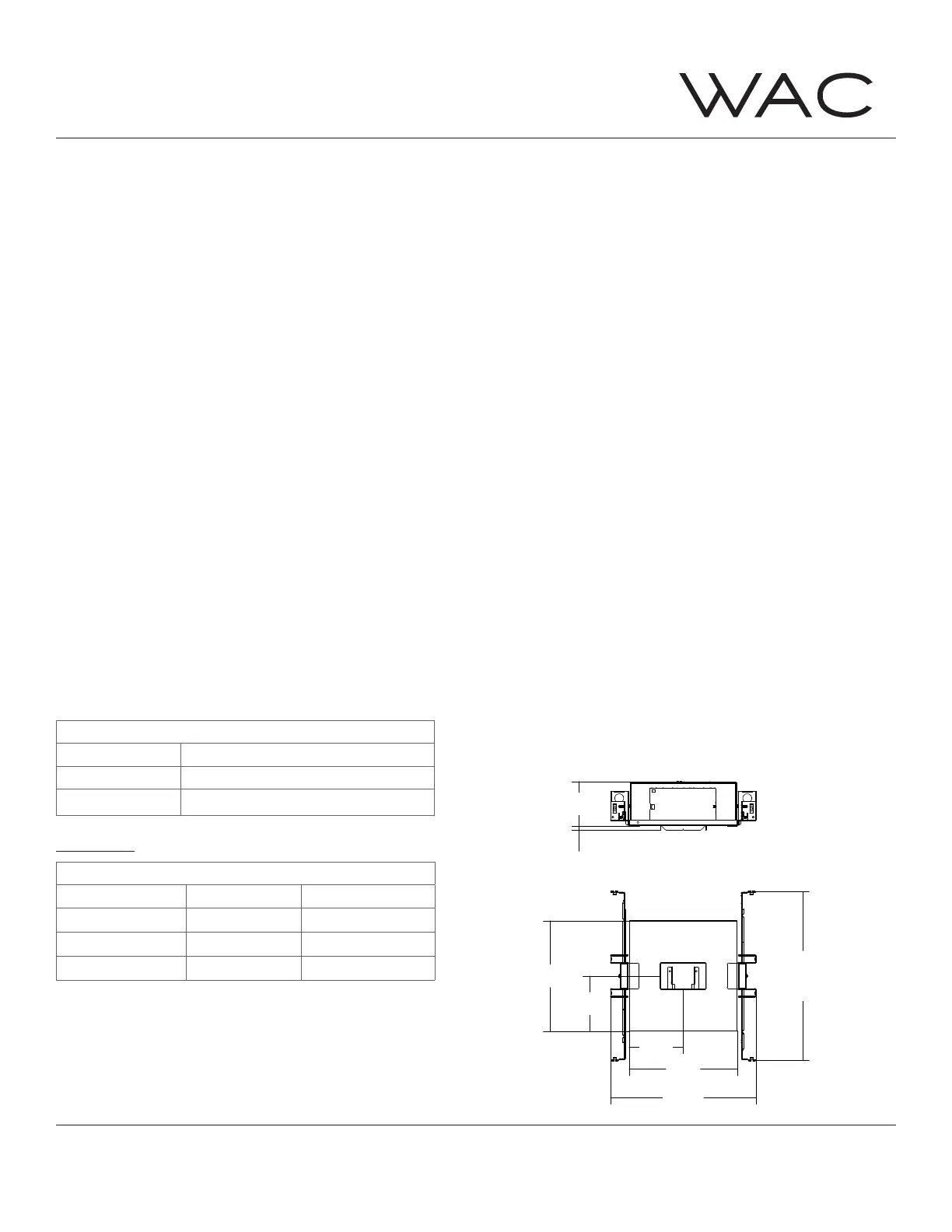

Multi Stealth Recessed – New Construction HSG
R1GNT, R1GNTA, R1GNL, R1GNLA
R1GNT02 / R1GNTA02 & R1GNL02 / R1GNLA02
4”
5”
10”
9w”
Min 10”
Max 242”
4d”
138”
a”
IMPORTANT:
R1GNTA/R1GNLA housings have a larger aperture than R1GNT/
R1GNL models to accomodate adjustable trims. Be sure to locate the
housing installation appropriately.
Reference TABLE. 1 on PAGE 5 to conrm the appropriate cut out
detail associated with respective housings.
HOUSING-TRIM COMPATIBILITY
TRIM TYPER1GNT/R1GNLR1GNTA/R1GNLA
Downlight (R1GD)
YesNo
Wall Wash (R1GW)
YesNo
Adjustable (R1GA)No
Yes
