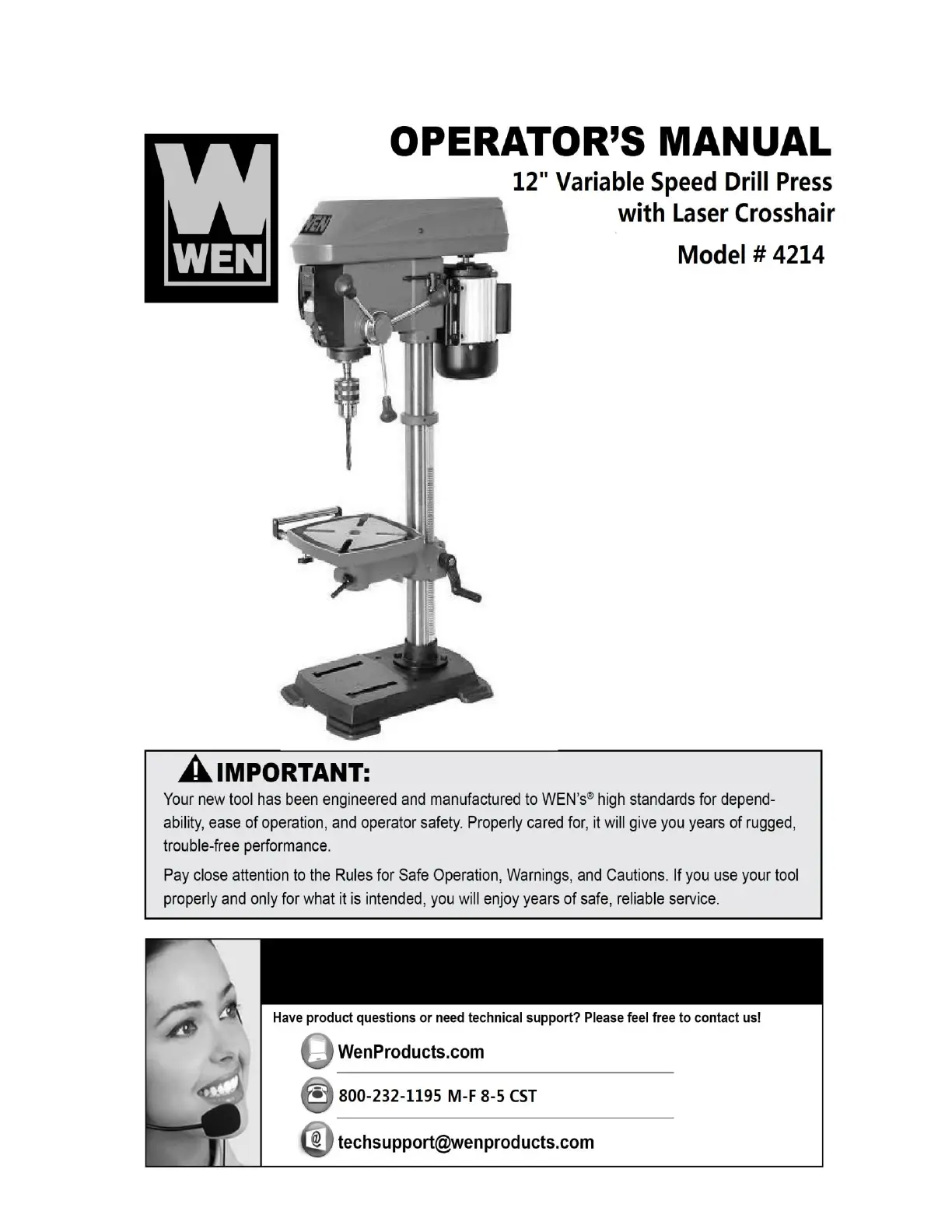

Seite 1/32
4214 WENPRODUCTS.COM
2
Table
of
Contents
Technical data………………………………………………………………………………. 2
General safety rules………………………………………………………………………... 3
Specic safety rules for the drill press…………………………………………………… 5
Electrical information………………………………………………………………………. 6
Know drill pressyour ………………………………………………………………………. 8
Assembly and adjustments……………………………………………………………….. 9
Operation……………………………………………………………………………………. 19
Maintenance………………………………………………………………………………… 24
Troubleshooting…………………………………………………………………………….. 25
Replacement parts……………………………………………………………………… 27
Part List…………………………………………………………………………………………... 28
Exploded view……………………………………………………………………………… 30
One year limited warranty…………………………………………………………………….. 31
Technical
data
12" Variable Speed Drill Press with Laser Crosshair Model # 4214
Motor: 120 V, Hz, 4.8 60 A
Horsepower: 2/3 (single phase) Speed:HP
530–3100 RPM (no load)
Chuck capacity: 1/32 5/8" (0.8– –16 mm) Quill
diameter: 2 3/16" (55 mm)
Stroke: 3 1/8" (80 mm)
Capacity: 6" (152 (chuck column) mm) to
19 1/2" (495 (chuck mm) to base)
Table tilt: 0 to 45° left and right
Laser: Class III, transformer powered
Weight: 85 lb
4214 WENPRODUCTS.COM
3
General
safety
r
ules
Safety is a combination common sense, staying alert, and knowing your drill press works. of how
SAVE THESE SAFETY INSTRUCTIONS.
WARNING: To avoid mistakes that could cause serious injury, do plug not in the drill press
until the following steps have been read and understood.
1. READ and become familiar with this entire instruction manual. LEARN the tool s applications, limitations, ’
and possible hazards.
2. AVOID DANGEROUS CONDITIONS. use power tools wet damp areas expose them Do not in or or to
rain. Keep work areas well-lit.
3. DO NOT use power tools the presence in of ammable liquids gases. or
4. ALWAYS keep work area clean, uncluttered, and well-lit. work oor surfaces that are your DO NOT on
slippery.
5. KEEP BYSTANDERS AT A SAFE DISTANCE from the work area, especially when the tool is
operating. NEVER allow children pets near the tool. or
6. DO FORCE THE TNOT OOL to do a job that was designed it not to do.
7. DRESS FOR SAFETY. wear loose clothing, gloves, neckties, Do not or jewelry (rings, watches, etc.)
when operating the tool. Inappropriate clothing and items get caught in moving parts and draw can
you in. ALWAYS wear -slip footwear and tie back long hair. non
8. WEAR A FACE MASK DUST MASK OR as the drilling operation produces dust.
WARNING: Dust generated from certain materials can be hazardous to your health. Always operate
this tool in a well-ventilated area and provide for proper dust removal. Use dust collection systems
whenever possible.
9. ALWAYS remove the power cord plug from the electrical outlet when making adjustments, changing parts,
cleaning, working the tool. or on
10. KEEP GUARDS PLACE IN AND WORKING ORDER. IN
11. AVOID ACCIDENTAL START-UPS. Make sure the power switch is the OFF position before in
plugging in the power cord.
12. REMOVE ADJUSTMENT TOOLS. Always make sure all adjustment tools are removed from the drill
press before turning it on.
