2160p 4:4:4/60 In-Line HDMI Scaler with Audio Breakout

CON-H2-SCL Quickstart Guide

CON-H2-SCL Quickstart Guide | 190617

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

1 of 4

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the

installation process.

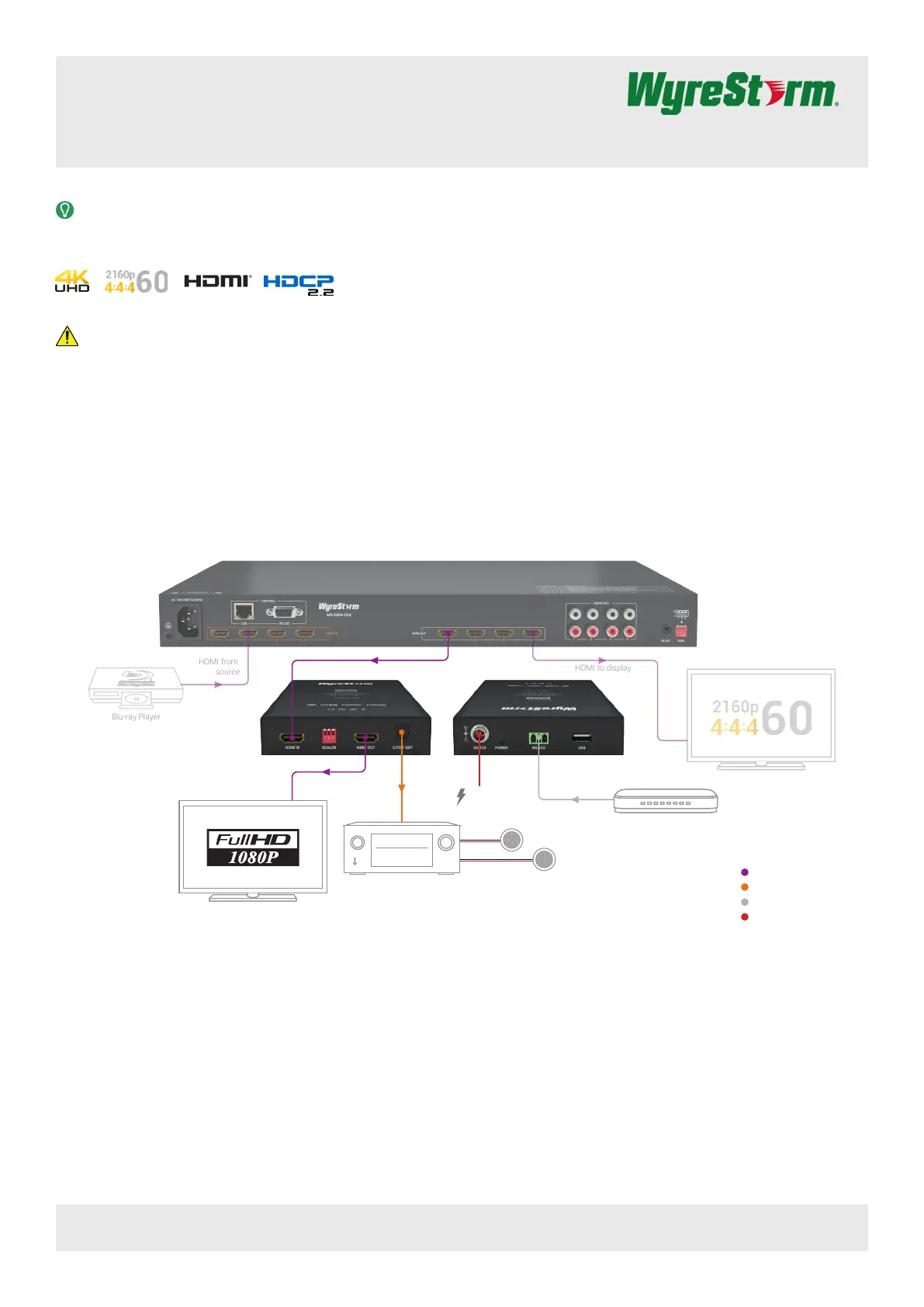

Basic Wiring Diagram

IMPORTANT! Installation Requirements

• Advanced conguration of this product requires the use of the use of the

WyreStorm Management Suite v1.6 or higher conguration tool. Download

the latest version from the product page before continuing with the

installation.

• Visit the product page to download the latest rmware, document version,

additional documentation, and conguration tools.

• Read through the section for important wiring Wiring and Connections

guidelines before creating or choosing premade cables.

In the Box

1x CON-H2-SCL

1x DC 12V 2A Power Supply (US/UK/EU/AU)

3x 3-Pin Terminal Block

2x Mounting Brackets

1x Quickstart Guide (This Document)

MX-0404-H2A

Matrix

KEY

Passive HDMI

Control

Power

Digital Audio

CON-H2-SCL

Rear

CON-H2-SCL

Front

AC Mains

Audio Video

Receiver

HDMI to display

Control System

HDMI from

source

Blu-ray Player

CON-H2-SCL Quickstart Guide | 190617

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

2 of 4

Wiring and Connections

WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in its

entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.

IMPORTANT! Wiring Guidelines

• The use of patch panels, wall plates, cable extenders, kinks in cables, and

electrical or environmental interference will have an adverse effect on

signal transmission which may limit performance. Steps should be taken

to minimize or remove these factors completely during installation for best

results.

• WyreStorm recommends using pre-terminated HDMI cables due to the

complexity of these connector types. Using pre-terminated cables will

ensure that these connections are accurate and will not interfere with the

performance of the product.

RS-232 Guidelines

This product uses a 3-pin RS-232 with no hardware ow control. Most control

systems and computers are DTE where pin 2 is RX, this can vary from device

to device. Refer to the documentation for the connected device for pin

functionally to ensure that the correct connections can be made.

3rd Party Device

Pin 1 TX (Transmit) > To > RX (Receive)--- ---

Pin 2 RX (Receive) > To > TX (Transmit)--- ---

Pin 3 G (Gro d) > To > G (Gro d)un --- --- un

WyreStorm Co ectornn

Troubleshooting

No or Poor Quality Picture (snow or noisy image)

• Verify that the output resolution of the source and display is supported by

this product.

• If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K rated.

• Verify that all source and display connections are not loose and are

functioning properly.

No or Intermittent 3rd party Device Control

• Verify that the RS-232 and Relay cables are properly terminated.

Refer to sections for pinout RS-232 Guidelines and/or Relay Wiring

information.

CON-H2-SCL Quickstart Guide | 190617

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

3 of 4

Setup and Conguration

Scaler Settings

This device can be set to scale the video output when required by the system using the dip switches on the front of the device.

Auto Scaling (Default) 123

1920x1080@60Hz

1024x768@60Hz 123

1920x1200@60Hz

1280x720@60Hz 3840x2160@30Hz

1280x800@60Hz 3840x2160@60Hz

Advanced Conguration

The following steps require the use of the use of the WyreStorm Management Suite v1.6 or higher. Download the latest version from the product page before

continuing with the installation.

Initial Conguration Tool Setup

1. for pinout.Connect the converter to a PC using the RS-232 port. Refer to RS-232 Guidelines

2. Open the WyreStorm Management Suite and select the CON-H2-xxxx Conguration Tool from the menu.

3. Under RS-232 Port Conguration select the COM port for the PC and set the baud rate to 57600.

4. Select the Connect button to connect the PC to the converter.

EDID Write from a File

If an EDID le is available it can be uploaded into the converter for setting the desired EDID.

1. Under RS-232 Port Conguration select the COM port for the PC and set the baud rate to 57600.

2. Under EDID Write select Choose File to select the le to upload.

3. Once the selection dialog closes, select Import to upload the le to the converter.
