User Guide

USB AUDIO INTERFACE

URX44C

Main Features

URX44C User Guide2

Contents

Main Features...........................................2

Panel Controls and Terminals................3

Front Panel..........................................................3

Rear Panel...........................................................5

Software....................................................6

Yamaha Steinberg USB Driver............................6

Using with a Computer............................8

Connection Example............................................8

Computer Settings...............................................9

Configuring Audio Driver Settings on the DAW

Software.............................................................10

Recording/Playback...........................................11

Using with an iOS Device......................13

Connection Example..........................................13

Recording/Playback...........................................14

Troubleshooting.....................................16

Appendix.................................................19

Limitations on the Use of Effects.......................19

Computer Connector Types...............................19

Signal Flows.......................................................20

Block Diagrams..................................................21

Technical Specifications....................................22

General Specifications.......................................23

Uninstalling TOOLS for UR-C............................24

Main Features

6 x 4 USB3.0 Audio Interface with 4 x

D-PRE and 32-bit/192 kHz support

The URX44C is a 6-in and 4-out USB3.0 audio interface,

featuring four world-renowned D-PRE microphone

preamps and supporting 192kHz and 32-bit audio quality

to capture all the subtleties and expressiveness of any

audio source.

True 32-bit resolution

The URX44C and the Yamaha Steinberg USB Driver

support the 32-bit Integer format which can represent

audio data in higher resolution compared to Float format.

Together with a DAW (such as Cubase) which can fully

utilize the 32-bit Integer data, they enable unprecedented

audio resolution in your music production.

USB3.0 and USB Type-C™

The URX44C is equipped with a USB Type-C port and

features USB3.0 (USB3.1 Gen1) SuperSpeed mode

while providing full compatibility with the USB2.0 High-

Speed mode. The USB Type-C connection provides

enough bus power to operate the URX44C.

dspMixFx

The dspMixFx technology is powered by the latest SSP3

DSP chip and offers latency-free monitoring with highly

acclaimed DSP effects, including REV-X reverb, for users

of any DAW software.

NOTICE

To avoid the possibility of malfunction/damage to the

product, damage to data, or damage to other property,　

follow the notices below.

Handling

•Do not expose the product to rain, use it near water or in

damp or wet conditions, or place on it any containers　

(such as vases, bottles or glasses) containing liquids

which might spill into any openings.

Panel Controls and Terminals

URX44C User Guide3

Panel Controls and Terminals

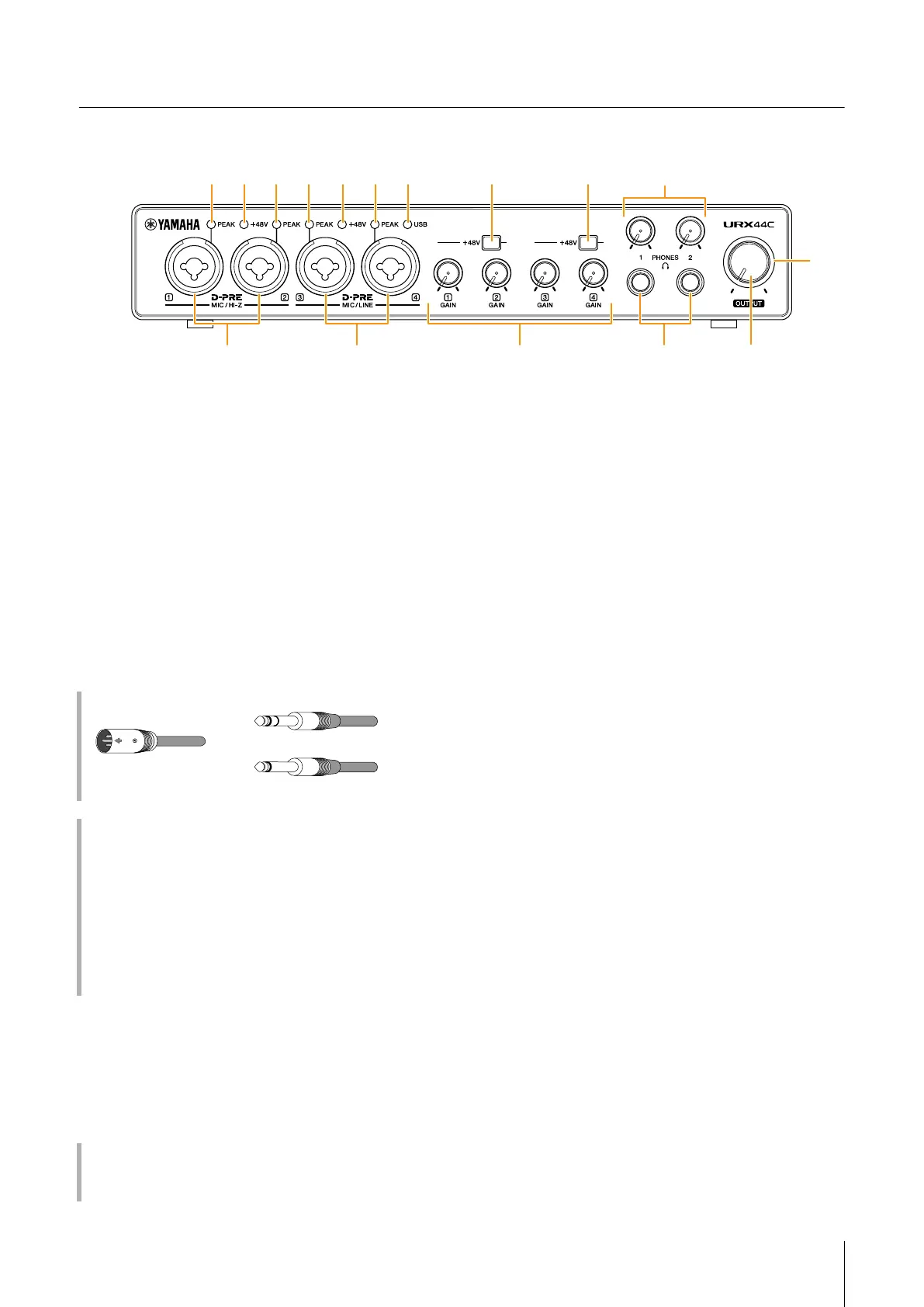

Front Panel

1[MIC/HI-Z 1/2] connectors

For connection to a microphone, electric guitar, or electric

bass. This connector can be connected to both XLR-type

and phone-type (unbalanced only) plugs. The XLR-type is

MIC only and the phone type is HI-Z only.

NOTE

•The signal is not input when connecting balanced phone-type

plugs.

•The phantom power will be supplied to the XLR connector

connected to the [MIC/HI-Z 1/2] connectors

2[MIC/LINE 3/4] connectors

For connection to a microphone or digital instrument. This

connector can be connected to both XLR-type and

phonetype (balanced/unbalanced) plugs. The XLR type is

MIC only and the phone type is LINE only.

NOTE

The phantom power will be supplied to the XLR connector

connected to the [MIC/LINE 3/4] connectors.

3[PEAK] indicator

Lights up according to the input signal. Lights up when

the input signal is 3 dB below the clipping level.

4[+48V] indicator

Lights up when the [+48V] switch (phantom power) is

turned on.

5[USB] indicator

This lights up when the unit is turned on and can

communicate with your computer or iOS device.

The indicator flashes continuously when the computer or

iOS device does not recognize the device.

6[INPUT 1 to 4 GAIN] knob

Adjusts the input signal level of the [MIC/HI-Z 1/2]

connectors and [MIC/LINE 3/4] connectors.

7[+48V] switch

Turns the phantom power on and off. When you turn this

switch on, phantom power will be supplied to the XLR

connector connected to the [MIC/HI-Z 1/2] connectors.

Turn this switch on if you are using a condenser

microphone.

8[+48V] switch

Turns the phantom power on and off. When you turn this

switch on, phantom power will be supplied to the XLR

connector connected to the [MIC/LINE 3/4] connectors.

Turn this switch on if you are using a condenser

microphone.

NOTICE

When using phantom power, observe the following to prevent

noise and possible damage to URX44C or connected

equipment.

•Do not connect or disconnect any devices while the

phantom power switch is turned to ON.

•Turn the 9 [PHONES] knob and ! [OUTPUT] knob down

all the way before turning phantom power on/off.

•When connecting devices not requiring phantom power to

the [MIC/HI-Z 1/2] and [MIC/LINE 3/4] connectors, make

sure to turn the phantom power switch to OFF.

NOTE

When you turn phantom power on/off, the input signal for the

connector that’s turned on/off is muted for several seconds.

!

@

1

433

2

433578

6)

9

Plug types

Proper use of the HI-Z or LINE inputs

HI-Z

Guitar and bass with passive pickups (not battery

powered)

LINE

•Effect device, preamp, direct box

•Guitar and bass with active pickups (battery

powered)

•Digital instruments, such as synthesizer

Setting optimum recording levels

Adjust the [INPUT GAIN] knobs so that the [PEAK]

indicator flashes briefly at the loudest input volume.

XLR-type (balanced)

Phone-type (balanced)

Phone-type (unbalanced)
