Technical Specifi cations:

Image device: ⅓" / 8.5 mm Sharp CCD sensor

Lens focal length: f2.3

TV system: NTSC / 60 Hz

View angles: 150°(D) x 105°(H) x 80°(V)

Native sensor resolution: 811 (H) x 507 (V) pixels

Resolution of video-out: > 600 TV lines

Signal to noise ratio: > 51 dB

Light sensitivity: 0.3 Lux (IR On)

Video output: 1,0 Vp-p, 75 ohms

White balance: Auto

Gain control: Auto

Sync system: Auto

Power supply: DC 12 V (10 V - 16 V)

Current consumption: 130mA (DC12V) / ≤ 1.5W

IP protection rating: IP69K

Operating temperature: -20°C~+70°C, RH 95% max.

Dimensions w/short bracket (HxWxD):74 x 85 x 65 mm

Dimensions w/long bracket (HxWxD):101 x 85 x 65 mm

Weight:333 g

KEY FEATURES

• Compact high resolution rear view camera

• LDR controlled day / night mode with 9 night vision IR-LED’s

• User switchable picture inversion (mirror image)

• 3 m main wire harness length with 6PIN connector system – incl. 15m

extension cable

• Mounting brackets for 38 mm or 60 mm mounting clearance included

in the set

• Powder-coated aluminum die cast housing

DESCRIPTION:

This ZENEC rear view camera model has been developed for use with

motorhomes, camper vans and trailers. The use of high quality parts and

materials for best weather resistance and longevity, as well as the clever

construction according to IP69K protection class allow for a perfect

operation in the afore mentioned target vehicles.

The ZE-RVSC90 offers a large horizontal viewing angle and can be

operated in inverted or non-inverted picture mode to comply with a great

variety of RVC monitors and head units.

This product is compatible with a wide variety of 2-DIN A/V receivers of

the aftermarket and the ZENEC E>GO product line up, including ZENEC

2-DIN infotainers and naviceivers.

NOTES:

■Following the latest trend in vehicle electronics, newer cars mainly use a pulse width modulated power feed for outer

hull lights, which is unsuitable for imaging/video electronics, as it causes considerable picture distortion.

■Use the included connection cable exclusively. Altering or replacing it will void your warranty.

■The camera is 100% water- and dustproof and has been tested according to international standard IP69K. However, cleaning

your vehicle with a high pressure washer, may damage the housing sealings.

Keep a distance of at least one meter between water nozzle and camera housing.

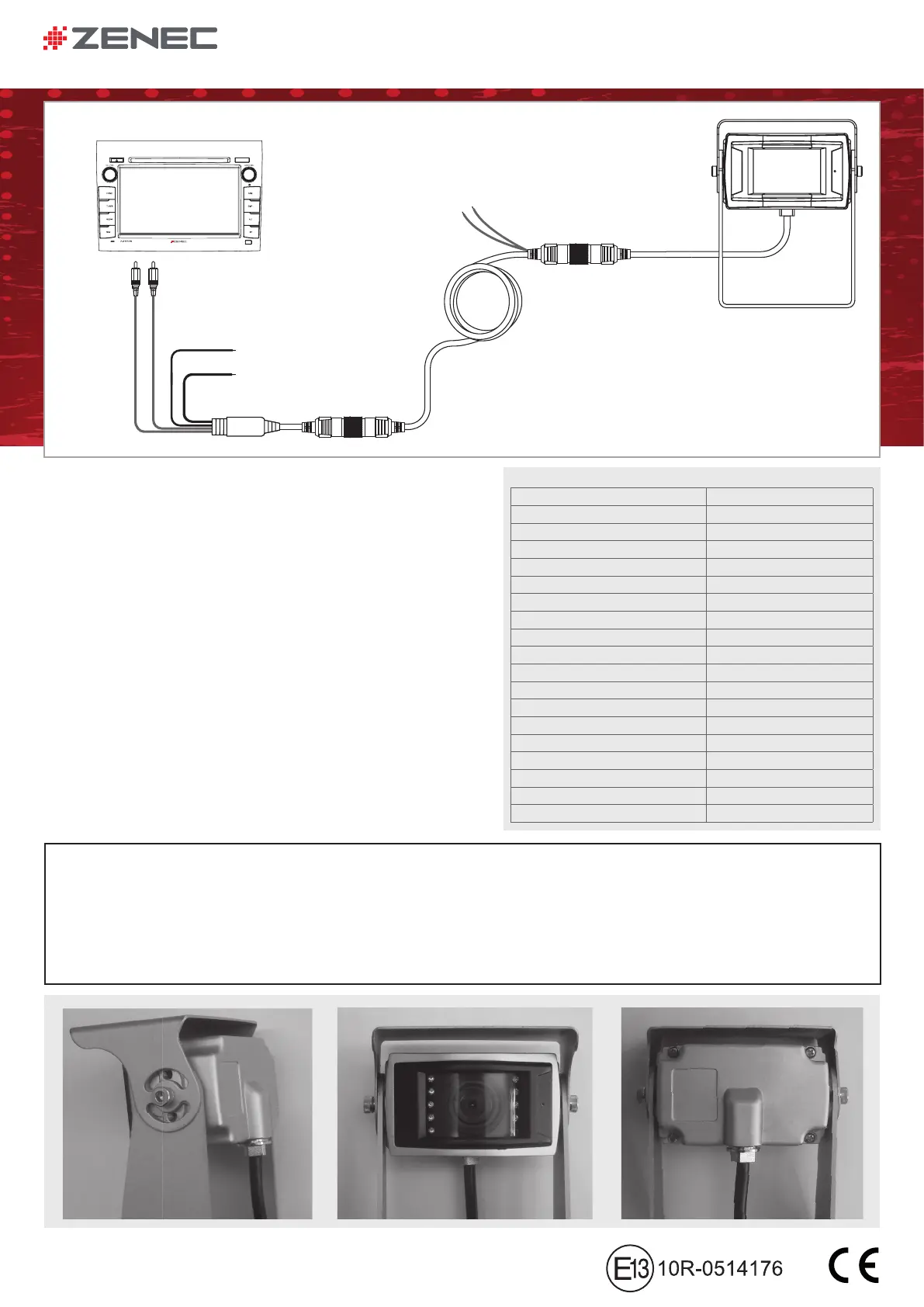

Head unit

ZE-RVSC90

6 PIN connector

Yellow: video signal to head unit

Red: audio signal from microphone to head unit

Black: GND

Red: CAMERA PWR (+12V)

15 m

3 m

Connect the bare ends of

the two green wires for

inverted picture.

ZE-RVSC90

ZE-RVSC90

MOUNTING INSTRUCTIONS

REAR VIEW CAMERA

REAR VIEW CAMERA

ZENEC by ACR AG ∙ Bohrturmweg 1 ∙ CH-5330 Bad Zurzach ∙ Switzerland

EU Legal Representative:

ACR S & V GmbH∙Industriestr. 35∙D-79787 Lauchringen∙ Germany

www.zenec.com

Rev. G
