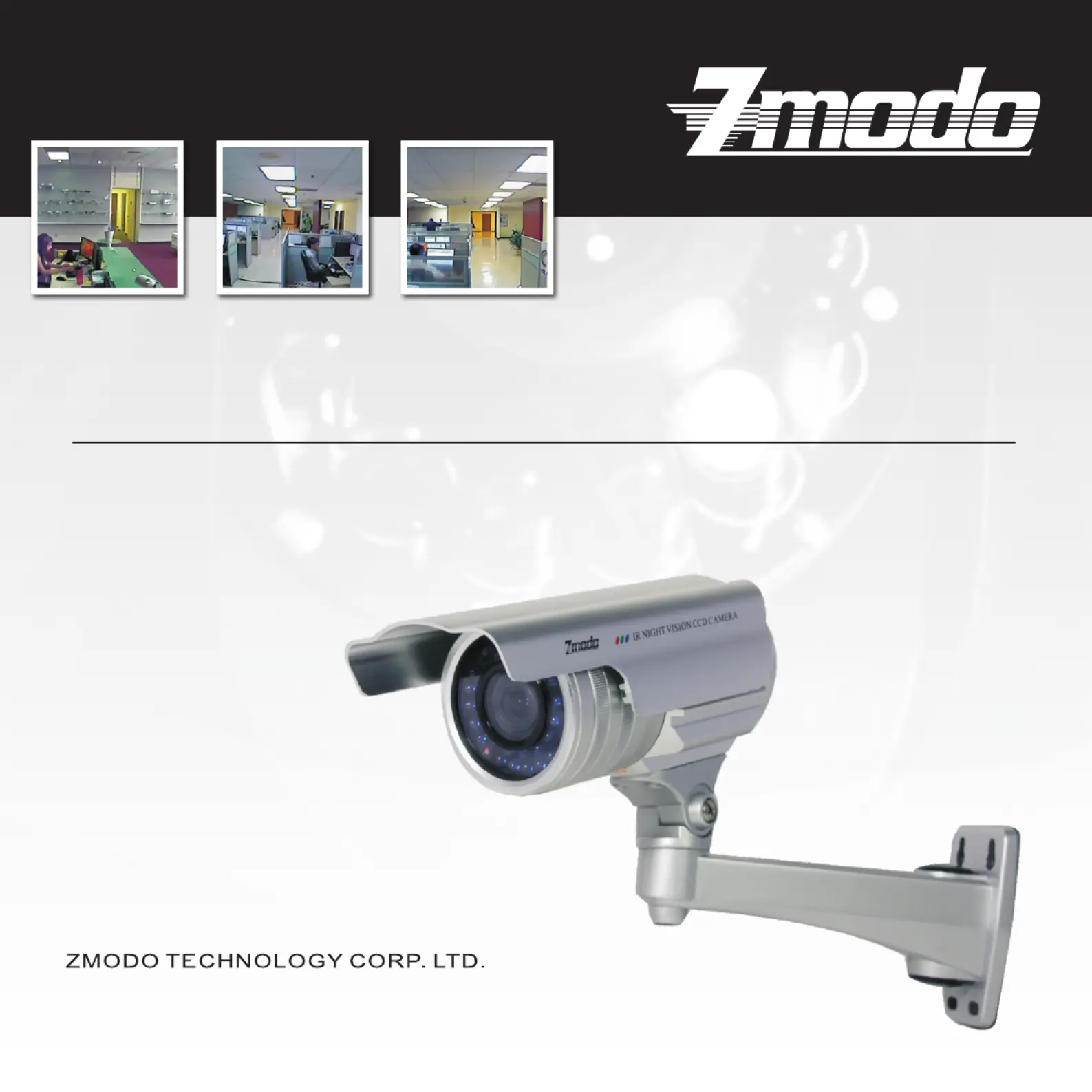

Vari-Focal Outdoor Audio Camera

User s Guide’

CM-S23349SV-AD

Building NO.5, Shaer Bluesky Science and Technology Park,

Shajing,Baoan District,Shenzhen

Fax: Tel: 0755-3392-6029 0755-3392-5683

SAFETY PRECAUTIONS

CAUTION

1. Do not drop objects on the product or apply strong

shock to it. Keep away from a location subject to

excessive vibration or magnetic interference.

2. Do not install in a location subject to high

temperature (over 120F), low temperature (below

-5F), or high humidity. Doing so may cause fire or

electric shock.

3. If you want to relocate the already installed

product, be sure to turn off the power and then

move or reinstall it.

4. Remove the power plug from the outlet when then

there is a lightning. Neglecting to do so may cause

fire or damage to the product .

5. Keep out of direct sunlight and heat radiation

sources. It may cause fire.

6. Install it in a place with good ventilation.

7. Avoid aiming the camera directly towards

extremely bright objects such as sun, as this may

damage the CCD image sensor.

8. Apparatus shall not be exposed to dripping or

splashing and no objects filled with liquids, such as

vases, shall be placed on the apparatus.

9. The Mains plug is used as a disconnect device and

shall stay readily operable at any time.

CAUTI ON: TO REDUCE THE RISK OF ELECT RIC SHOCK, DO

NOT REMOVE REAR COVE R. NO USER SERVICEAB LE PARTS

INSIDE. REFE R TO QUALI FIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC

SHOCK DO NOT OPEN

This symbol indica tes high voltage is present inside. It i s

dangerous to make an y kind of contact with any inside part

of this product.

This symbol alerts you that important literature concerning

operation and maintenance has been included with this

product.

WARNING

1. Be sure to use only the standard adapter that is

specified in the specification sheet. Using any

other adapter could cause fire, electrical shock, or

damage to the product

2. Incorrectly connecting the power supply or

replacing battery may cause explosion, fire,

electric shock, or damage to the product.

3. Do not connect multiple cameras to a single

adapter. Exceeding the capacity may cause

abnormal heat generation or fire .

4. Securely plug the power cord into the power

receptacle. Insecure connection may cause fire.

5. When installing the camera, fasten it securely and

firmly. A falling camera may cause personal injury

6. Do not place conductive objects (e.g.screwdrivers,

coins, metal things, etc.) or containers filled with

water on top of the camera. Doing so may cause

personal injury due to fire, electric shock, or falling

objects.

7. Do not install the unit in humid, dusty, or sooty

locations. Doing so may cause fire or electric

shock.

8. If any unusual smells or smoke come from the unit,

stop using the product. In such case, immediately

disconnect the power source and contact the

service center. Continued use in such a condition

may cause fire or electric shock.

9. If this product fails to operate normally, contact the

nearest service center. Never attempt to modify

this product in any way. (ZMODO is not liable for

problems caused by unauthorized modifications or

attempted repair.)

10. When cleaning, do not spray water directly onto

parts of the product. Doing so may cause fire or

electric shock.

Building NO.5, Shaer Bluesky Science and Technology Park,

Shajing,Baoan District,Shenzhen

Fax: Tel: 0755-3392-6029 0755-3392-5683

PRODUCT OVERVIEW

Product Overview

Main Features

1/3" Sony Color CCD Image Sensor

Built-in Audio

420 TV Lines, Horizontal

4~9mm Vari-focal Lens

Weatherproof: Yes

Signal: NTSC

Iris: Auto

Night Vision Min. Light: 0 Lux (IR On)

IR Irradiation Distance: 99’ (30m)

Operation Temperature: -5F ~ 120F

Mount: Wall

Video Connector: BNC

Power Connector: RCA 12V DC

Keep an eye on the people and places you care

about most with this color CCD bullet camera.

Featuring imaging provided by a 1/3” Sony Color

CCD, it delivers great video quality at 420 TV

Lines, reliable operation, a long operating life,

and premium performance at an affordable price.

With 36 built in IR LEDs, this camera can capture

video in night vision mode up to 99’ away. With

4~9mm vari-focal lens, it allows you to have a wider

or further view angle. This bullet camera is designed

for indoor or outdoor use, and can easily be mounted

for the perfect viewing angle. BNC and RCA connections

are used for video and power. Installation is easy and

hassle free, just plug and play.

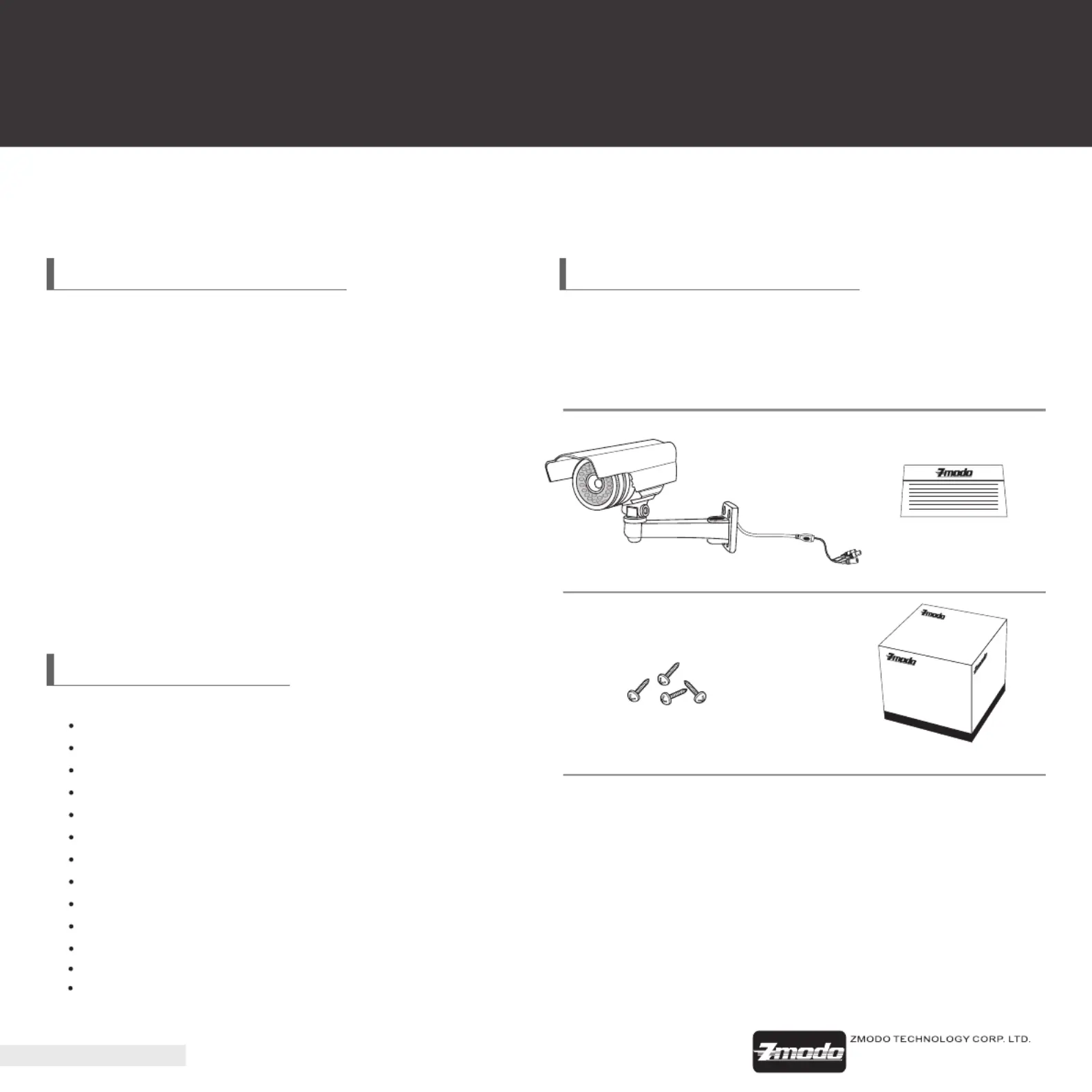

1) CM- Vari-Focal IR Audio Camera

1) A Card

4) Screws

1) Package Box

S23349SV-AD

Package includes

Please check your camera and accessories

included in the package. Those components are

as shown below:

WW W Z MO.DO.C O M

CCD C AMERA

CCD CA MERA

W.Z

MODO

.CO

CC D CAMERA

Camera Card

Screws Package Box

Building NO.5, Shaer Bluesky Science and Technology Park,

Shajing,Baoan District,Shenzhen

Fax: Tel: 0755-3392-6029 0755-3392-5683

Produktspezifikationen

Marke:	Zmodo
Kategorie:	Sicherheitskamera
Modell:	CM-S23349SV-AD
Eingebautes Mikrofon:	Ja
WLAN:	Nein
Breite:	15.49 mm
Tiefe:	8.89 mm
Gewicht:	930 g
Produktfarbe:	Weiß
Übertragungstechnik:	Kabelgebunden
Höhe:	8.89 mm
Befestigungstyp:	Wand
Betriebstemperatur:	-10 - 50 °C
Typ:	CCTV Sicherheitskamera
Gehäusematerial:	Aluminium
Plug & Play:	Ja
Analoges Signalformatsystem:	NTSC, PAL
Rauschverhältnis (SNR):	48 dB
Schnittstelle:	BNC
Größe des Bildsensors:	1/3 "
Formfaktor:	Bullet
Maximale Auflösung:	- Pixel
DC-Ausgang Volt:	+12V
Montageblöcke enthalten:	Ja
Brennweitenbereich:	4 - 9 mm
Tag/ Nachtmodus:	Ja
Mindestbeleuchtung:	0 Lux
Nachtsichtdistanz:	30 m
LED Typ:	IR
Sensor-Typ:	CCD
Optischer Zoom:	- x
Belichtungstyp:	Auto
Weißabgleich:	Auto
Nachtsicht:	Ja
Anzahl der Beleuchtungs-LEDs:	36
Audio-Entdeckung:	Ja
Anzahl der TV-Linien:	420
NTSC Auflösung:	512 x 492 Pixel
PAL Auflösung:	512 x 582 Pixel
Ethernet/LAN:	Nein
Unterstützte Positionierung:	Innen & Außen
