Seite 1/20

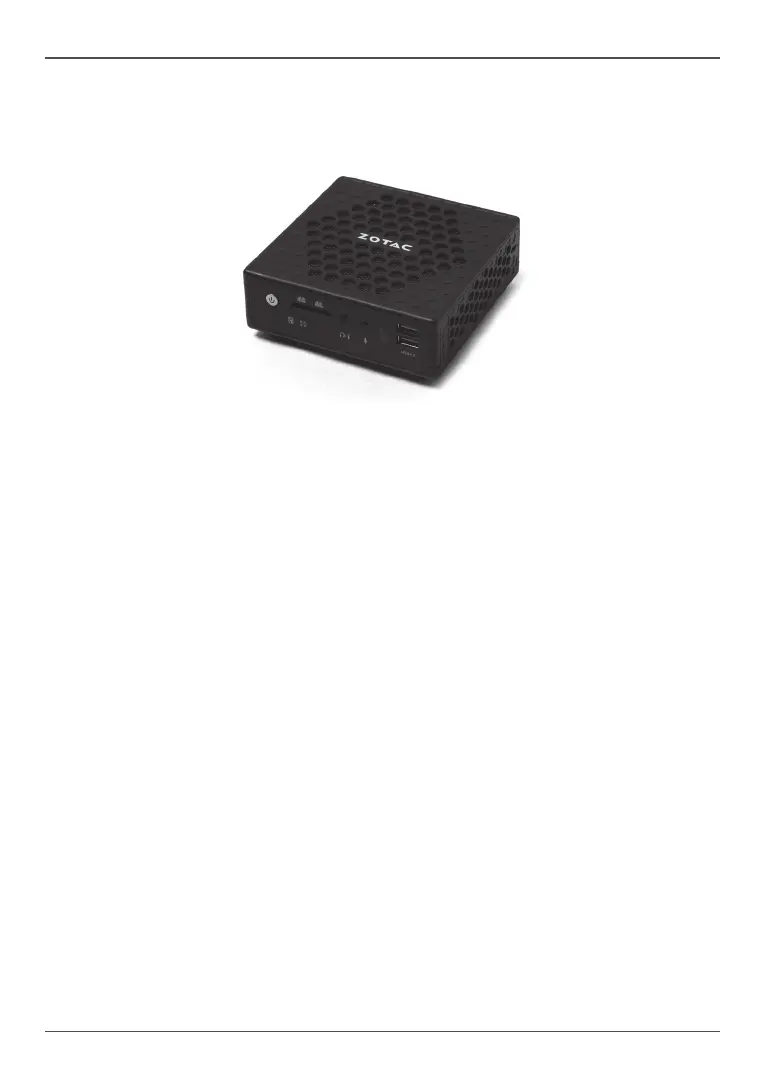

1
ZOTAC ZBOX nano
ZOTAC ZBOX nano
User’s Manual
No part of this manual, including the products and software described in it,
may be reproduced, transmitted, transcribed, stored in a retrieval system,
or translated into any language in any form or by any means, except
documentation kept by the purchaser for backup purposes, without the
express written permission of ZOTAC.
Products and corporate names mentioned in this manual may not be
registered trademarks or copyrights of their respective companies, and are
used for identication purposes only. All trademarks are the property of their
respective owners.
Every effort has been made to ensure that the contents of this manual are
correct and up to date. However, the manufacturer makes no guarantee
regarding the accuracy of its contents, and reserves the right to make
changes without prior notice.
CAUTION:
Risk of explosion if the battery is replaced with an incorrect type. Batteries
should be recycled where possible. Disposal of used batteries must be in
accordance with local environmental regulations.
2
ZOTAC ZBOX nano
Table of Contents
Product specications -------------------------------------------------------------------------- 3
Safety information -------------------------------------------------------------------------------- 4
Setting up your system 4 -----------------------------------------------------------------------
Care during use 4 --------------------------------------------------------------------------------
Welcome --------------------------------------------------------------------------------------------- 5
Package contents 5 ------------------------------------------------------------------------------
Getting to know your ZOTAC ZBOX nano ------------------------------------------------ 6
Front view 6 ----------------------------------------------------------------------------------------
Rear view----------------------------------------------------------------------------------------- 7
Customizing the ZOTAC ZBOX nano ------------------------------------------------------- 8
Installing a memory module 9 -----------------------------------------------------------------
Installing a hard disk 10 --------------------------------------------------------------------------
Connecting a S/PDIF cable 12 ------------------------------------------------------------------
Setting up the ZOTAC ZBOX nano ---------------------------------------------------------- 13
Positioning the ZOTAC ZBOX nano --------------------------------------------------------- 15
Mounting the ZOTAC ZBOX nano to an LCD monitor 15 --------------------------------
Installing drivers and software --------------------------------------------------------------- 17
Installing an operating system 17 --------------------------------------------------------------
Installing system drivers 17 ----------------------------------------------------------------------
Using your ZOTAC ZBOX nano --------------------------------------------------------------- 18
Conguring wireless connection ----------------------------------------------------------- 18
Conguring wired connection --------------------------------------------------------------- 18
Using a static IP 18 ----------------------------------------------------------------------------
Using a dynamic IP (PPPoE connection) 19 --------------------------------------------
Conguring audio output via an HDMI device ------------------------------------------ 19
3
ZOTAC ZBOX nano
Product specications
Processor
• Intel Processor 2961Y (dual core, 1.1 GHz)
Onboard graphics
• Intel HD Graphics
• HDMI 1.4a (max resolutions: 1920×1200 @60Hz)
• DP 1.2 (max resolutions: 2560x1600 @60Hz)
Memory support
• 2 204-pin DDR3L-1600/1333 SO-DIMM slots
• Up to 16 GB of memory
USB ports
• 4 USB 3.0 ports & 1 USB 2.0 port
Storage support
• SATA 6.0 Gb/s transfer rates
• Supports one 2.5-inch SATA HDD/SSD (9.5mm max height)
Network support
• Dual Gigabit (10/100/1000Mbps) LAN
• IEEE 802.3 compatible
Wi-Fi support
• 802.11ac Wi-Fi (dual-band)
• Bluetooth 4.0
Audio
• Digital 8 Channel Audio (LPCM/bitstream via HDMI)
• SPDIF output
Operating System support
• Windows 7 32bit/64bit, Windows 8 32bit/64bit and Windows 8.1 32bit/64bit
Product Dimensions
• 127mm x 127mm x 45mm
