Seite 1/11
October.2024
USER’S GUIDE . REV01

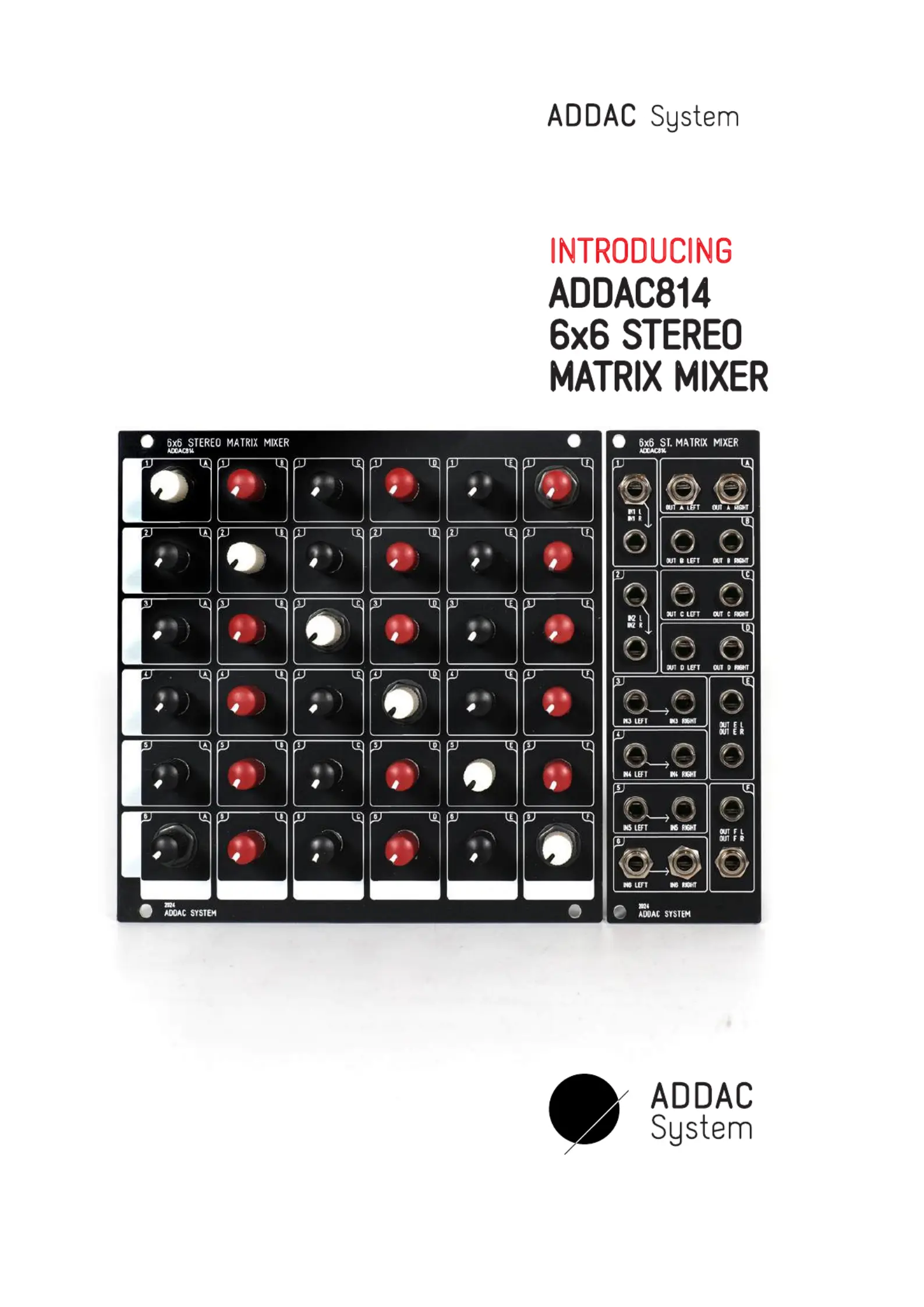

ADDAC814
6x6 STEREO
MATRIX MIXER
INTRODUCING
From Portugal with Love!
Instruments for Sonic Expression
Est.2009
Lorem ipsum
ADDAC814
6x6 STEREO MATRIX MIXER USER’S GUIDE
October.2024Revision.01
Welcome to:
page 2ADDAC SYSTEM
WELCOME
We’re pleased to announce our take on matrix
mixers, a 6x6 stereo matrix easily expandable
to larger configurations.
Matrix mixers may need some time to get used
to but they are very much self explanatory,
each knob controls the volume of a matrix point
routing the respective input to the desired
output.
The flexibility of a matrix mixer is far superior to
a standard mixer, the possibility to route any
input to any single or multiple outputs allow for
very complex chains, combining parallel and
series processing while easily reconfigurable
without any extra patching.
All Inputs Left channels are normalled to the
Right Inputs.
Blank areas on the left and bottom edges of the
panel allow for the user to write all the inputs
and outputs sources that each channel is
connected to.
Different colored knobs for faster visual recall-
ing: Black for A,C,E Outputs
Dark Red for B,D,F Outputs
Cream knobs for potential feedback diagonal: 1A,
2B, 3C, 4D, 5E, 6F.
DC coupled circuitry, can be used to mix both
audio or cv signals.
Jumpers on the back of both modules allow the
user to set each channel independently to Line
or Synth Level, making it easier to integrate
with external sources, sound processors or guitar
pedals.

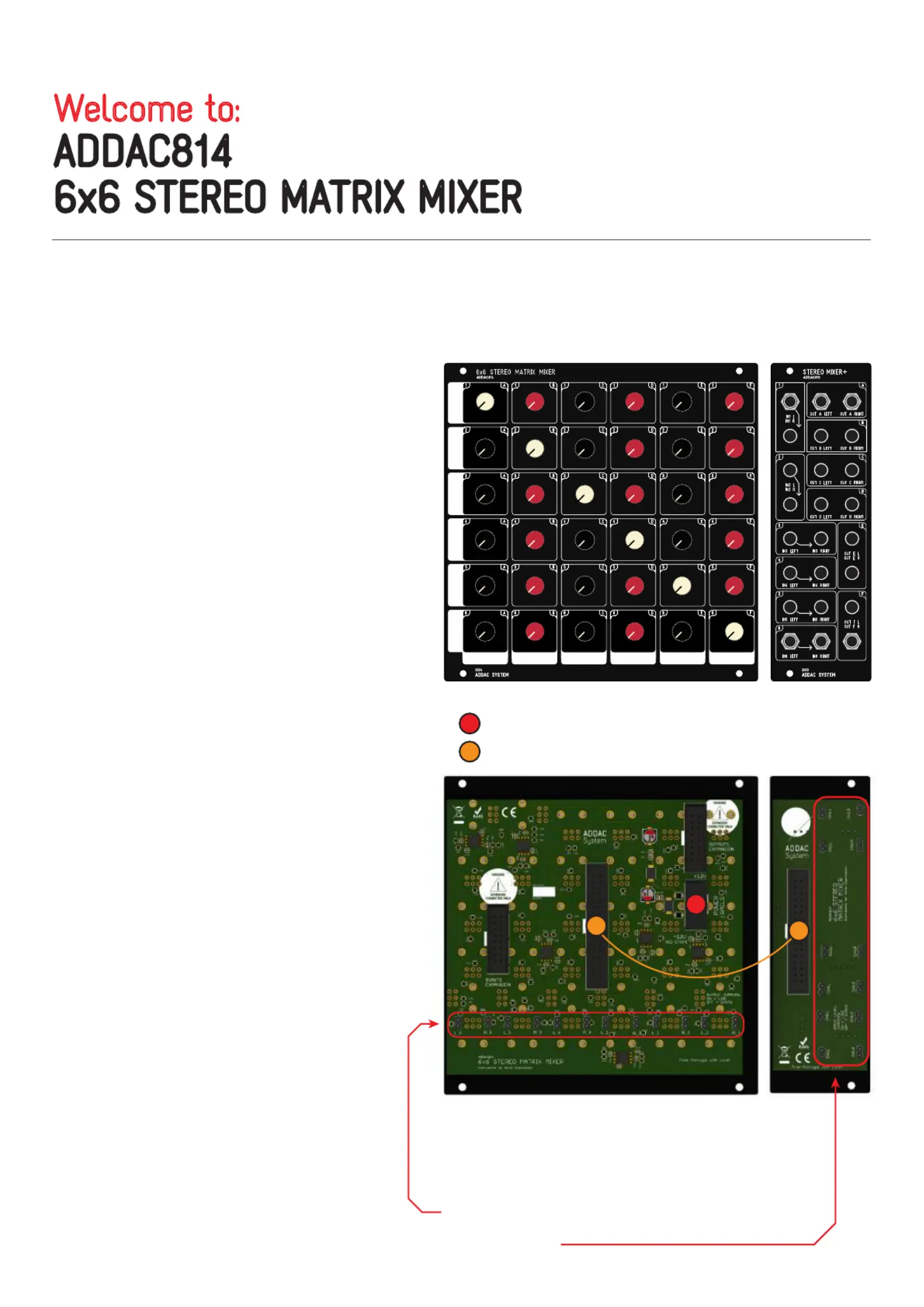

INTERNAL CONNECTIONS
The control and input modules are connected
via a large 36 wire ribbon cable, only the control
module needs to be connected to the Busboard.
Extra IDC sockets are used for connecting larger
configurations like 12x12 or 18x18.
Other configurations are also possible: 6x12,
12x6, 18x6, etc...
Up to 12x12 all ribbon cables are provided, for
larger matrixes custom ones will be necessary,
contact us directly if planning to go BIG.
Tech Specs:
25HP + 8HP
(33HP total)
4.5cm deep
140mA +12V
140mA -12V
A
B
POWER RAILS RIBBON CABLE (Red Stripe Down)
INS/OUTS RIBBON CABLE (2x17 Connectors)
A
B
B
SYNTH / LINE LEVEL JUMPERS:
Jumpers set the Output level of each channel:.
No jumper = Synth level
With jumper = Line level
OUTPUTS JUMPERS
INPUTS JUMPERS
25HP 8HP
page 3ADDAC SYSTEM

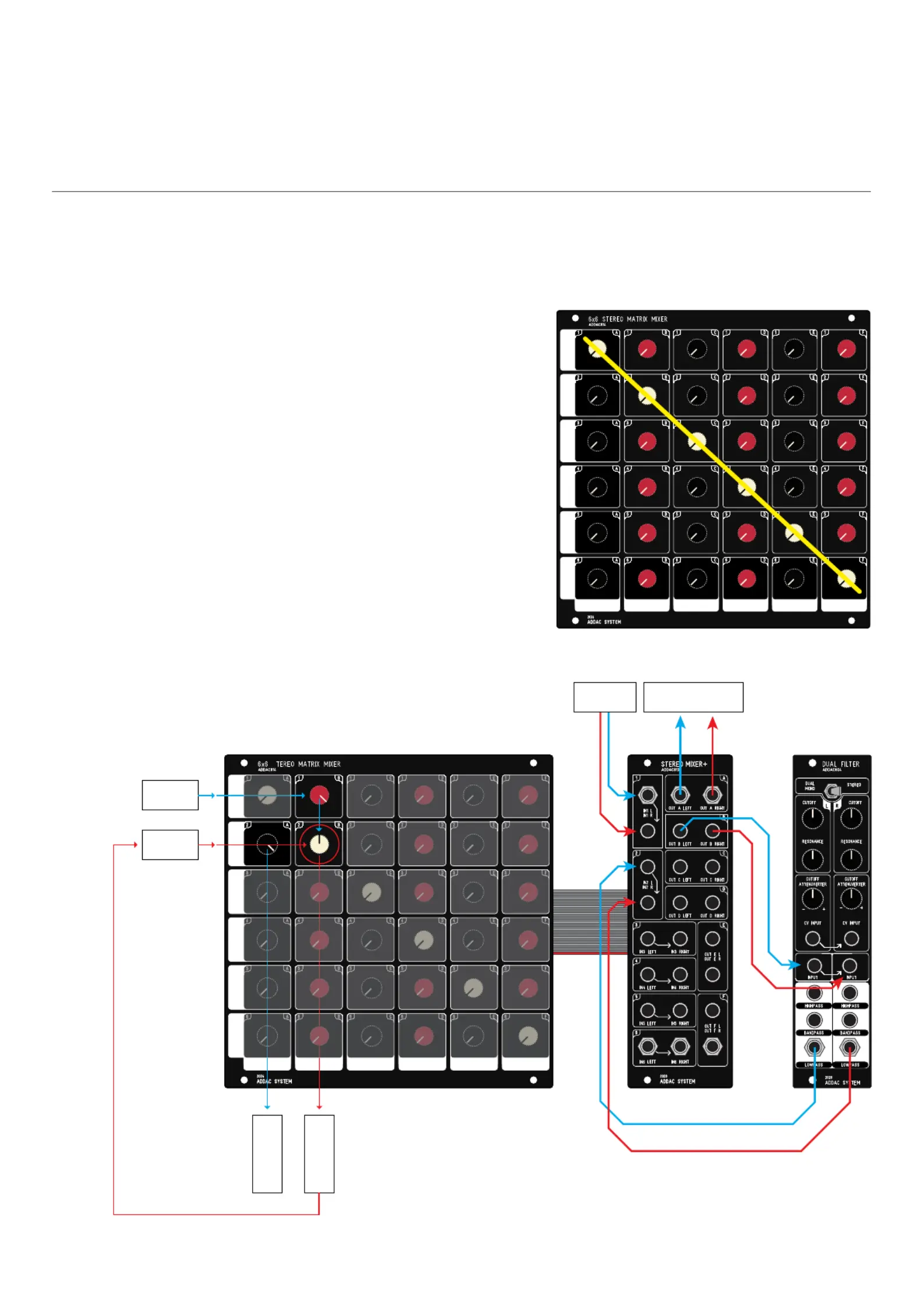

This diagonal in matrix mixers routes the input X to the same X
output. Depending on what is connected in those Ins/Outs it has
the potential to generate feedbacks.
For ex: if we plug a VCO into input 1 and use the output A as the
mixer output then when raising the level of input 1 to output A this
will simply act as a volume control of the VCO into the output.
If we add a Filter in In 2/Out B, patching the output of a Filter
module into input 2 and the Matrix output B to the Filter input.
Then we can route the VCO through the Filter using the 1B Knob
and forward the filter output to the master output using the 2A
Knob.
In this setup whenever we raise the level of knob 2B we’ll be
routing the output of the Filter module into it’s input generating a
feedback in the Filter module (similar as increasing the filter’s
resonance). This can be used as a feature but also requires atten-
tion as it can lead to a drastic result.
We decided to use a different color for these knobs to highlight
these special cases.
ADDAC814 User’s Guide
FEEDBACK
Feedback diagonal
FILTER
VCO
FILTER
MASTER OUTPUT
FILTEROUTPUT
FILTERVCO
VCO OUTPUT
