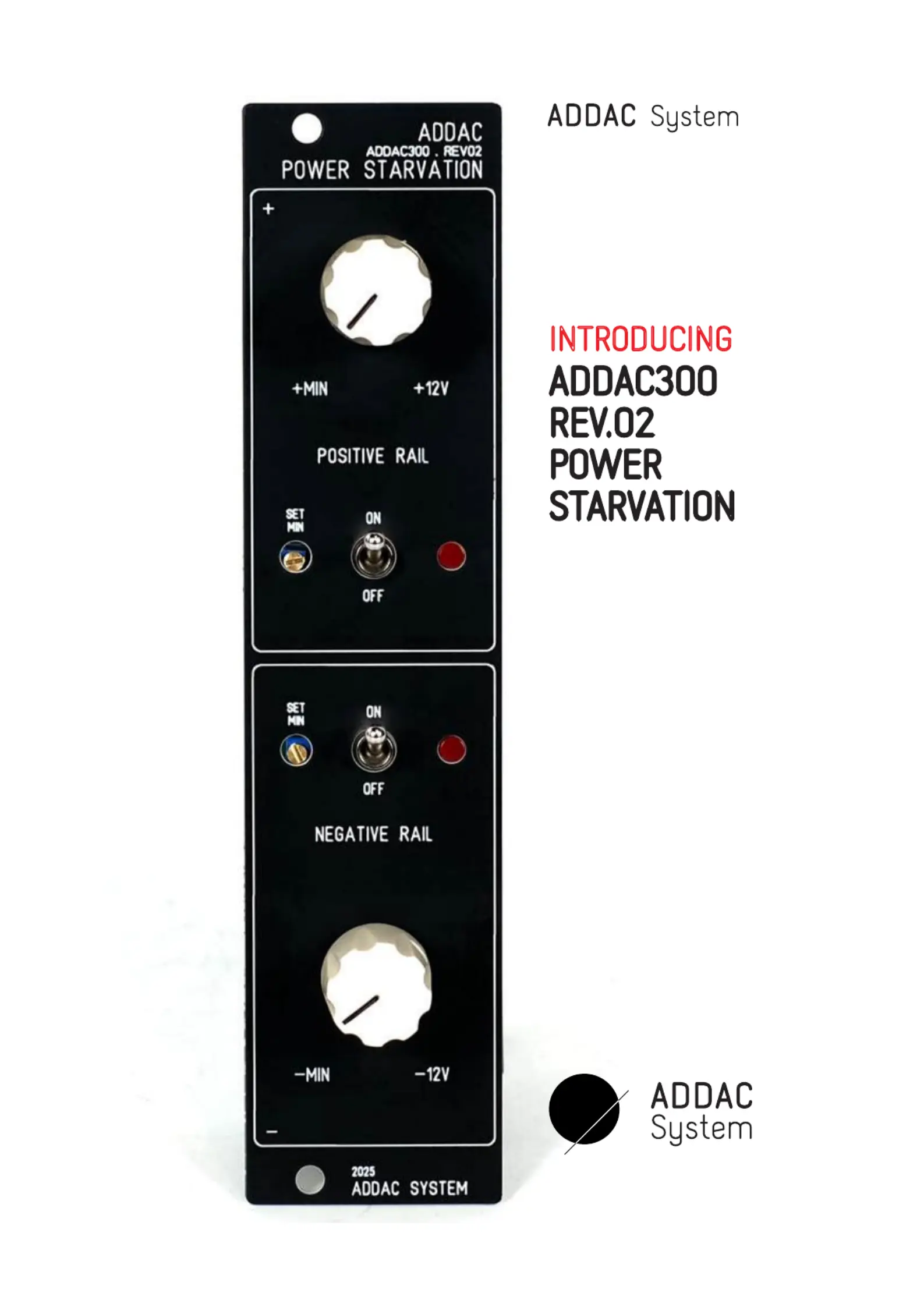

INTRODUCING
From Portugal with Love!
Instruments for Sonic Expression
Est.2009
ADDAC300
POWER STARVATION REV.02 USER’S GUIDE
February.2025Revision.01

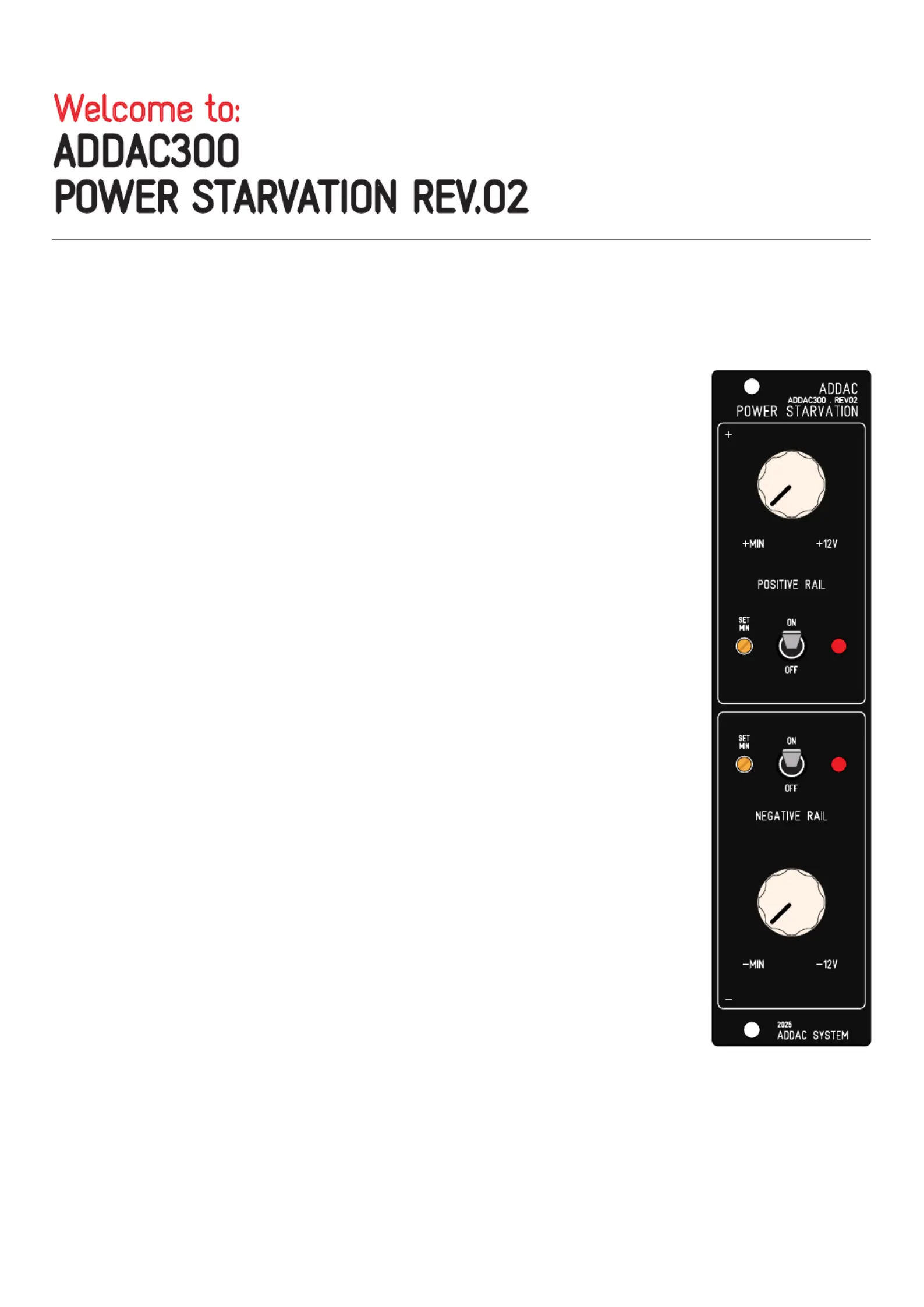

Welcome to:
page 2ADDAC SYSTEM
WELCOME
This is revision 02 of our Power Starvation module.
It provides an “ideal” way to power starve other modules, starving modules means the
modules will receive less voltage than the standard ±12V supply.
Power starvation is the first hack that any "DIY'er" learns. It's also one of the hacks
that can generate some of the most interesting sonic effects in circuit bending.
Plug any module below ±200mA through it and independently tune it's supply power.
This will have most interesting effects in analog modules: filters, delays, mixers... They
can either go silent or start screaming at your ears, going berserk with the lack of
current to behaving normally, making them cough, choke, go spastic... Something like
a safely induced heart attack...
While revision 01 was a simple circuit with pot working as a voltage divider, this
upgraded version uses a DC to DC converter that receives its input from the +12V
power rail and outputs a bipolar 15V supply.
This DC-DC converter also offers short circuit and overcurrent protection.
The ±15V lines are then sent through variable analog voltage regulators that can
output a range of 2.5V to 13.5V.
In other words, the module features a ±200mA PSU with variable voltage outputs.
SAFETY DISCLAIMER:
WHILE USING ADDAC300 SHOULD BE SAFE FOR ANY MODULE THERE MAY BE
SPECIFIC MODULES WHERE ITS USE MAY NOT BE ADVISED
!! USE AT YOUR OWN RISK !!
ADDAC SYSTEM WON’T BE RESPONSIBLE FOR ANY ISSUE THAT MAY ARISE WHILE
USING ADDAC300 POWER STARVATION.
IF IN DOUBT CONTACT US PRIOR TO ANY CONNECTION.
Tech Specs:
6HP
4.5cm deep
UP TO 600mA +12V
(Depending on the module connected)
0mA -12V
[POSITIVE RAIL] Sets the positive voltage output,
from the minimum to the maximum voltage set.
[ON / OFF] On engages power starving, Off
bypasses to the busboard power.
[SET MIN] Sets minimum output
[POSITIVE LED] Shows signal presence, the led
dims slightly when power is starved.
[NEGATIVE LED] Shows signal presence, the led
dims slightly when power is starved.
[SET MIN] Sets minimum output
[ON / OFF] On engages power starving, Off
bypasses to the busboard.
[NEGATIVE RAIL] Sets the negative voltage output,
from the minimum to the maximum voltage set.
page 3ADDAC SYSTEM

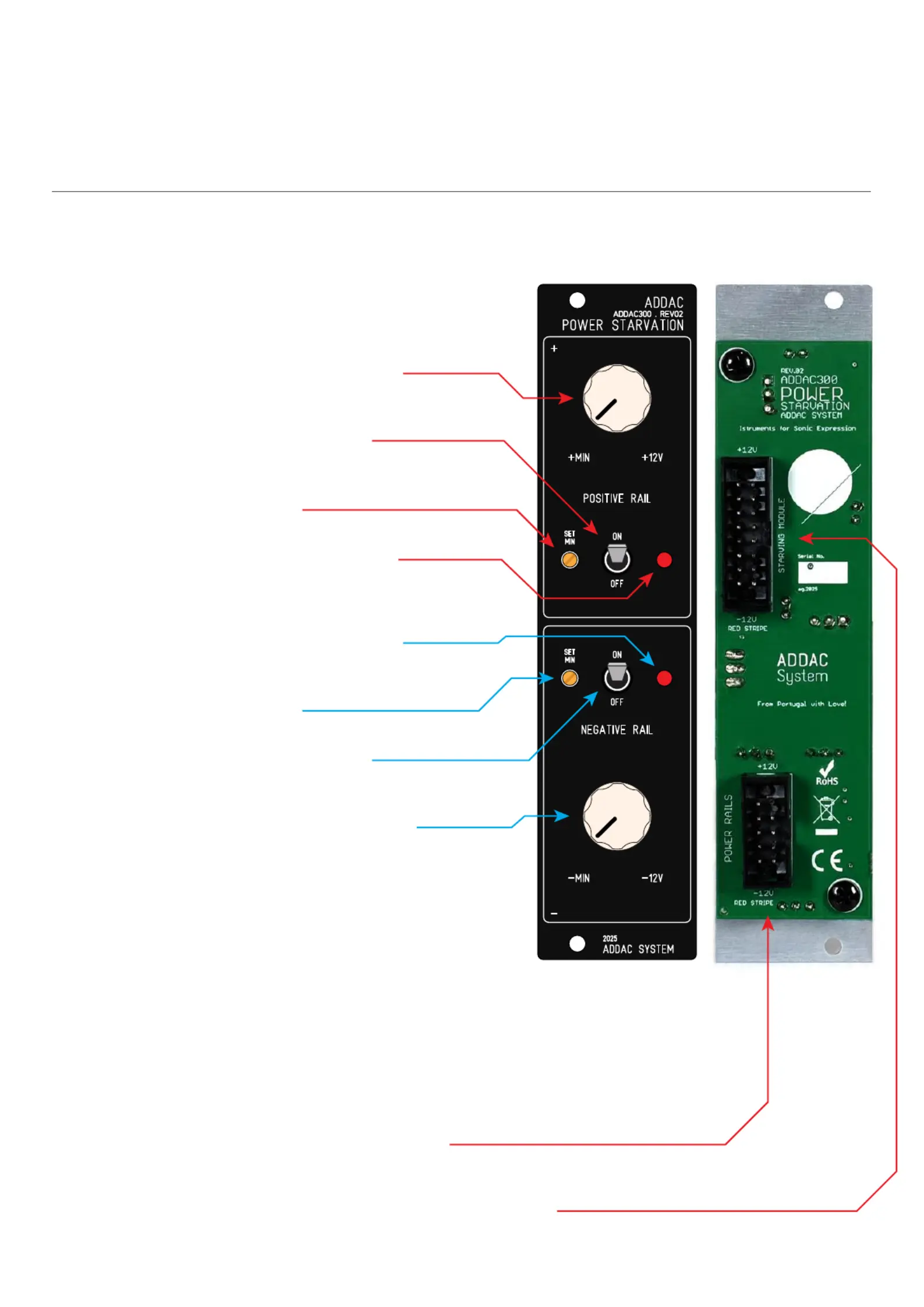

CONTROLS DESCRIPTION
RIBBON CONNECTIONS
ADDAC300 User’s Guide
[POWER RAILS] Ribbon cable connects to the Busboard
[STARVING MODULE] Ribbon cable connects to the module to be starved
There are two main sections, the top to control the Positive Rail (+)
and the bottom to control the Negative Rail (-)
The ADDAC300’s 2x5 IDC connector is connected to the busboard via a standard ribbon cable.
The module to be starved is then connected to the 2x8 IDC connector, this module will then
use ADDAC300’s built in psu to power the module allowing to starve its voltage rails.
