Zone Line Out Controller

(ZONE-LO)

Advanced Network Devices • 3820 Ventura Drive Arlington Heights, IL 60004

Support: te[email protected]m• 847-463-2237 • www.anetd.com/user-support/

1v1.3

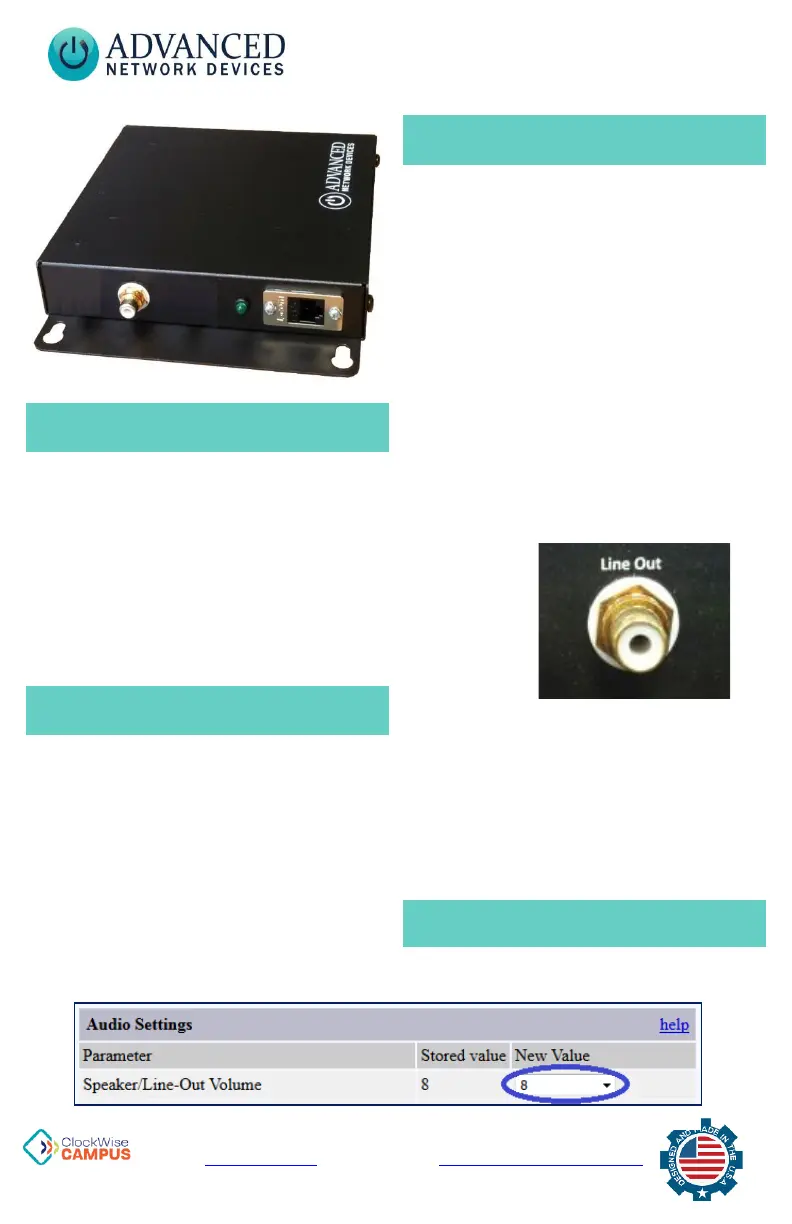

Figure 1

OVERVIEW

The ZONE-LO provides access to a line-

level audio output signal*. You can

access the signal via a front panel RCA

connector, typically used to connect to

analog amplifiers.

*10k Ohm, unbalanced, 2Vpp, Dynamic Range:

93dB. THD+N: 0.008%

INSTALLATION

The device can mount to a wall using the

four keyhole features located at the

corners of the device, with wall anchors

appropriate to the installation surface.

Power the device with PoE or PoE+,

connected via an Ethernet cable to the

PoE input. With power applied, the

green Power LED on the front panel will

illuminate.

SETUP AND USE

WARNING: Make sure to turn off

equipment when making connections,

and to set audio equipment volume to a

low value before powering on to avoid

any audio “pop” in the output.

The ANetD ZONE-LO works with a wide

variety of amplifiers. Please refer to the

technical documentation for your

speaker product when connecting to the

audio input.

Line Level Output

The RCA

connection

provides an

unbalanced

line-level

output,

typically used to connect to analog

amplifiers. This output activates

automatically any time the ZONE-LO

receives audio streams. More detailed

specifications include: 10k Ohm,

unbalanced, 2Vpp line-level output.

AMPLIFIER INTERFACE
