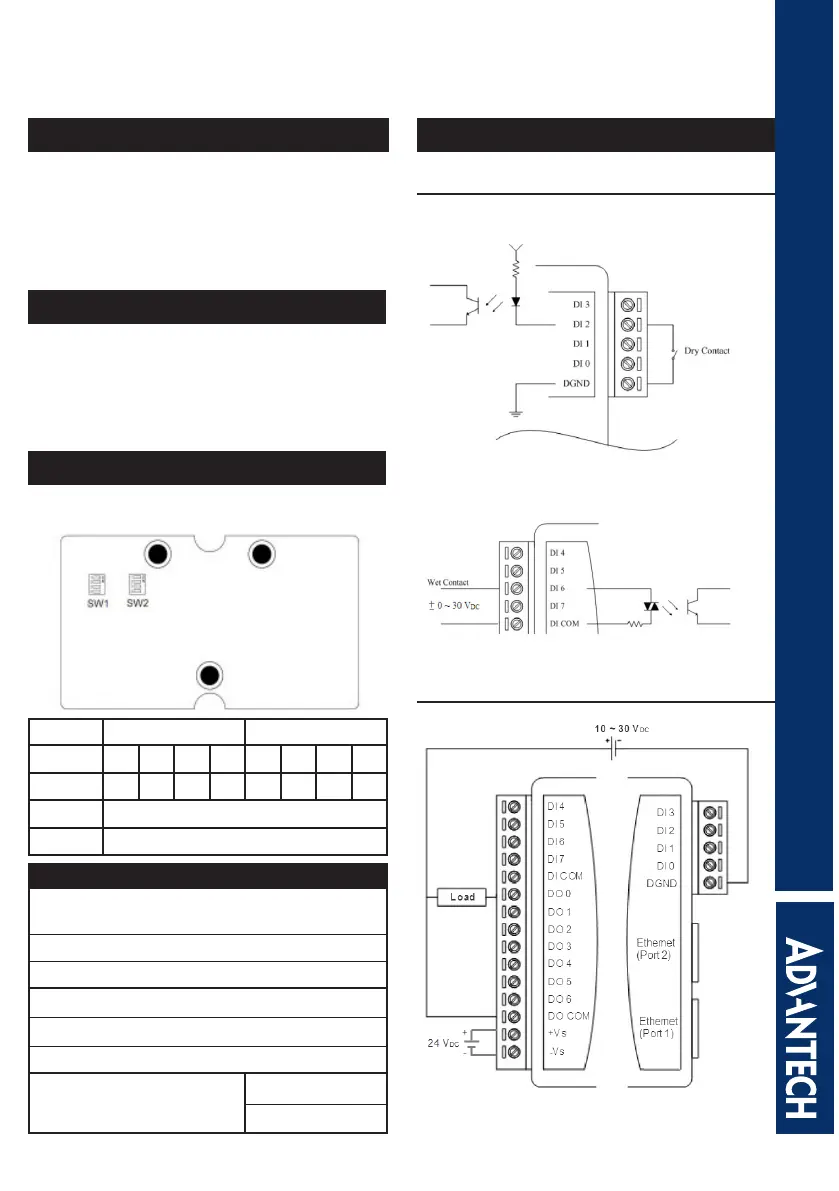

1 Startup Manual

ADAM-6250

15-ch Digital I/O Modbus TCP Module

Notes

For more information on this and other Advantech

products, please visit our websites at:

http://www.advantech.com

http://www.advantech.com/eAutomation

For technical support and service:

http://www.advantech.com.tw/eservice

This startup manual is for the ADAM-6250

Part No: 20036250001st Edition

February 2013

Switch Settings

It mainly presents the switch conguration for Dry Contact

and Wet Contact wiring in Digital Input interface.

SwitchSW1SW2

Position

12341234

DI Channel

Ch3Ch2Ch1Ch0Ch7Ch6Ch5Ch4

ON

Dry Contact (Default)

OFF

Wet Contact

Input Power Requirements

The ADAM-6200 system is designed for a standard

industrial unregulated 24 V

DC

power supply. For further

applications, it can also accept +10 to +30 V

DC

of power

input, 200mV peak to peak of power ripple, and the

immediate ripple voltage should be maintained between

+10 and +30 V

DC

.

Application Wiring

Isolated Digital Input

Dry Contact

Wet Contact

Isolated Digital Output

Overview

Thank you for purchasing this ADAM-6200 series

module.This is a quick guide to help you deploy the

ADAM-6200 series module in your application eld. It

will include power and application wiring. If you need a

more complicated or specic installation, you could try

to contact ADVANTECH for advanced technical support

or suggestions.

STARTUP MANUAL
