ASMB-818 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

•1 x ASMB-818 Startup Manual

•1 x SATA data cables

•1 x SATA power cables

•2 x CPU power cables (8P)

•1 x CPU carrier - E2A (XCC)

•1 x CPU carrier - E2B (MCC)

•1 x PCIe I/O support

•1 x front panel converter cable

•1 x I/O port bracket

•1 x M.2 screw

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Standard M/B Functions

•CPU: LGA4710 6th Gen Intel® Xeon® Scalable proces-

sor

•BIOS:AMI 512 Mbit SPI BIOS

•System Memory: 8 x DDR5 6400 MT/s registered ECC

DIMM, Max. capacity 2TB

ASMB-818 Series LGA 4710 6th Gen Intel® Xeon®

Scalable ATX Server Board with 8 DDR5, 3 PCIe x16,

5 SATA3, 4 USB 3.2 (Gen1), 1 M.2, Dual 10GbE, IPMI

Startup Manual

Note: Due to the inherent limitations of older PC ar-

chitectures, the system may not fully detect 2TB

RAM when 2TB RAM is installed.

•SATA Interface: Asmedia ASM1165: 4 x SATA 3.0 (6

Gb/s) via Slim-SAS HD, 1 x SATA 3.0 (6Gb/s)

•Serial Ports: One at the rear I/O, only supporting RS-232

•Watchdog Timer: 255-level timer intervals

•USB Port: Supports up to 4 x USB 3.2 (Gen1) ports (2

rear ports, 2 ports from the onboard 20-pin header) and 5

x USB 2.0 ports (1 x Type-A, 4 rear ports)

VGA Interface

•Chipset: ASPEED AST2600

•Display Memory: 64 MB

•Resolution: Supports VGA, resolution up to 1920 x 1200

@ 60 Hz refresh

Ethernet Interface

•Interface: 10/100/1000/2500 Mbps & 10 GbE Base-T

•Controller: LAN1/2: Intel I226; LAN3/4: Intel X710

Mechanical and Environmental

•Dimensions (L x W): 244x304mm(9.6″x12″)

•Power Supply Voltage: +3.3 V, +5 V, +12 V, +5 Vsb

•Power Consumption (mainboard only, excluding I/O

device): Max. load: +3.3 V @ 0.59 A, +5 V@ 1.92 A,

+12 V @ 6.65 A,+5 Vsb @ 0.01 A, +12V_8P_1 @ 17.22

A, +12V_8P_2 @ 15.91 A

•Operating Temperature: 0 ~ 60°C (depending on CPU)

•Net Weight: 0.97 kg

Theboardhasanumberofjumpersthatallowyoutocongure

your system to suit your application. The table below lists the

function of each of the jumpers and connectors.

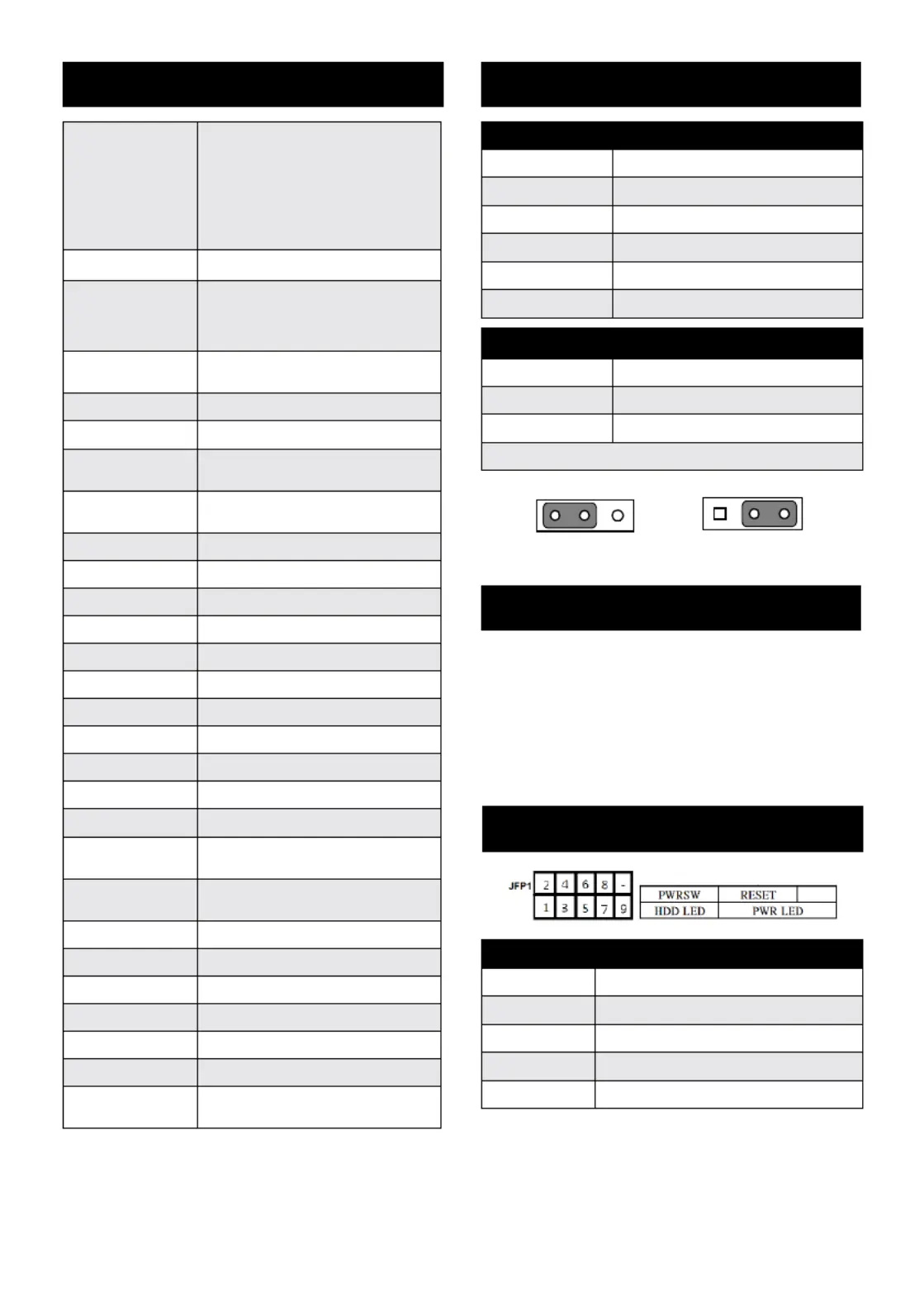

Connectors

LabelFunction

ATXPWR1

ATX 24-pin main power connector

ATX12V1, ATX12V2Processor power connector (for CPU0)

BH2For optional battery kit

BIOS_SKT1BIOS SPI ROM

COM1Serial port: RS-232

CPUFAN0CPU FAN connector

Specications

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our

support website at:

http://support.advantech.com

Register your products on our website and get 2

months extra warranty for free at:

http://www.register.advantech.com

This manual is for the ASMB-818 Series Rev. A1.

Part No. 2042081800

Printed in China

1st Edition

May 2025

Specications(Cont.)

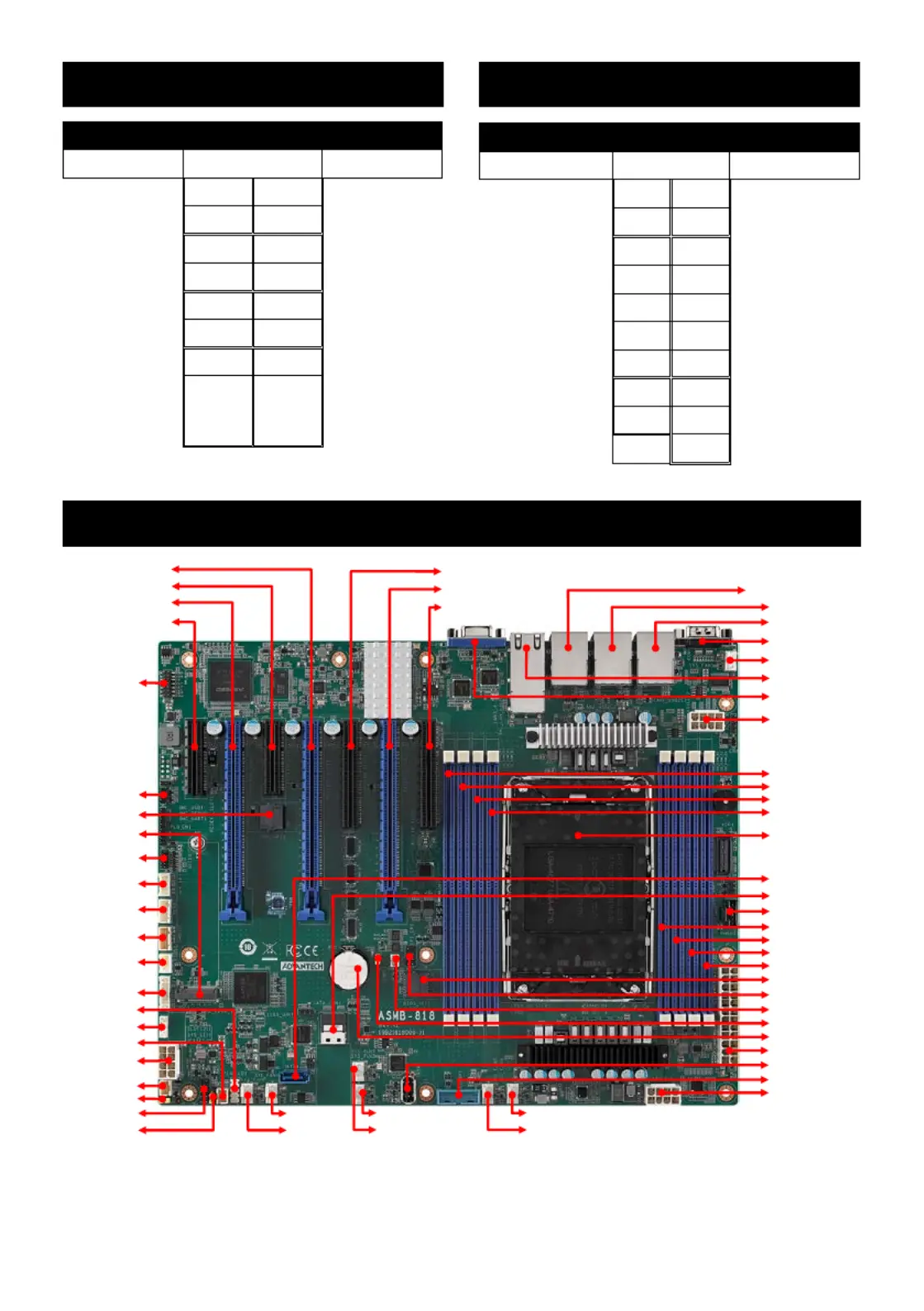

Jumpers and Connectors
