PCIE-1674/72E-BE Startup Manual 1
Before you begin installing your card, please make sure
that switch PoE o if you are not connect to PoE device and
check the following items have been shipped:
1. PCIE-1674/72E-BE ports PCI Express PoE+ GigE Vi-
sion Frame Grabber
2. 170304015K Power cable
3. Startup manual
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
General
• Chipset:
Intel I350 1G Ethernet Controller
Compliant with IEEE 802.3, IEEE 802.3u, IEEE802.3ab,
IEEE802.3x, IEEE802.3af, IEEE802.3at
* Windows 10 & 11 already build in the driver for the
Ethernet controller
• Interface:PCIE Gen 2 x 4
• DataTransferRate:1,000 Mbps
• Protection:
ESD: 8KV(Air), 6KV(Contact)
EFT: 2KV
Surge protection: 1KV
MechanicalandEnvironmental
• Dimensions(LxW):165 x 110 mm (5.8” x 3.9”)
• PowerRequirements:
12 VDC direct from PCIe slot, or with optional 12 V
DC
AT/ATX power jack input
54 VDC PoE+ power output IEEE802.3af support, total
power budge 60W with maximum 25.4W per port and
protect by recoverable eFuse.
* The efuse will recover and card will back to functional
once disconnect the overload defect PoE device
• NetWeight: 256 g
PCIE-1674/72E-BE 4/2 ports PCI Express PoE+ GigE
Vision Frame Grabber
Startup Manual
MainBoardConnectors
Ports Function
RJ Port 1~4 (PICE-1674E-BE)
RJ Port 1~2 (PCIE-1672E-BE)
1 GigE ports 1~4
1 GigE ports 1~2
LEDindicatorsofRJ45(Lan)connector
LEDs Description
Lan LED (In the left of RJ45
connector)
Green: Ethernet con-
nected
Link LED (In the right of RJ45
connector)
Green: 1G
Yellow: 100 Mbps
BracketLEDindicators
LEDs Description
POE 1~4 (PCIE-1674E-BE)
POE 1~2 (PCIE-1674E-BE)
on : PoE power on
o : PoE power o

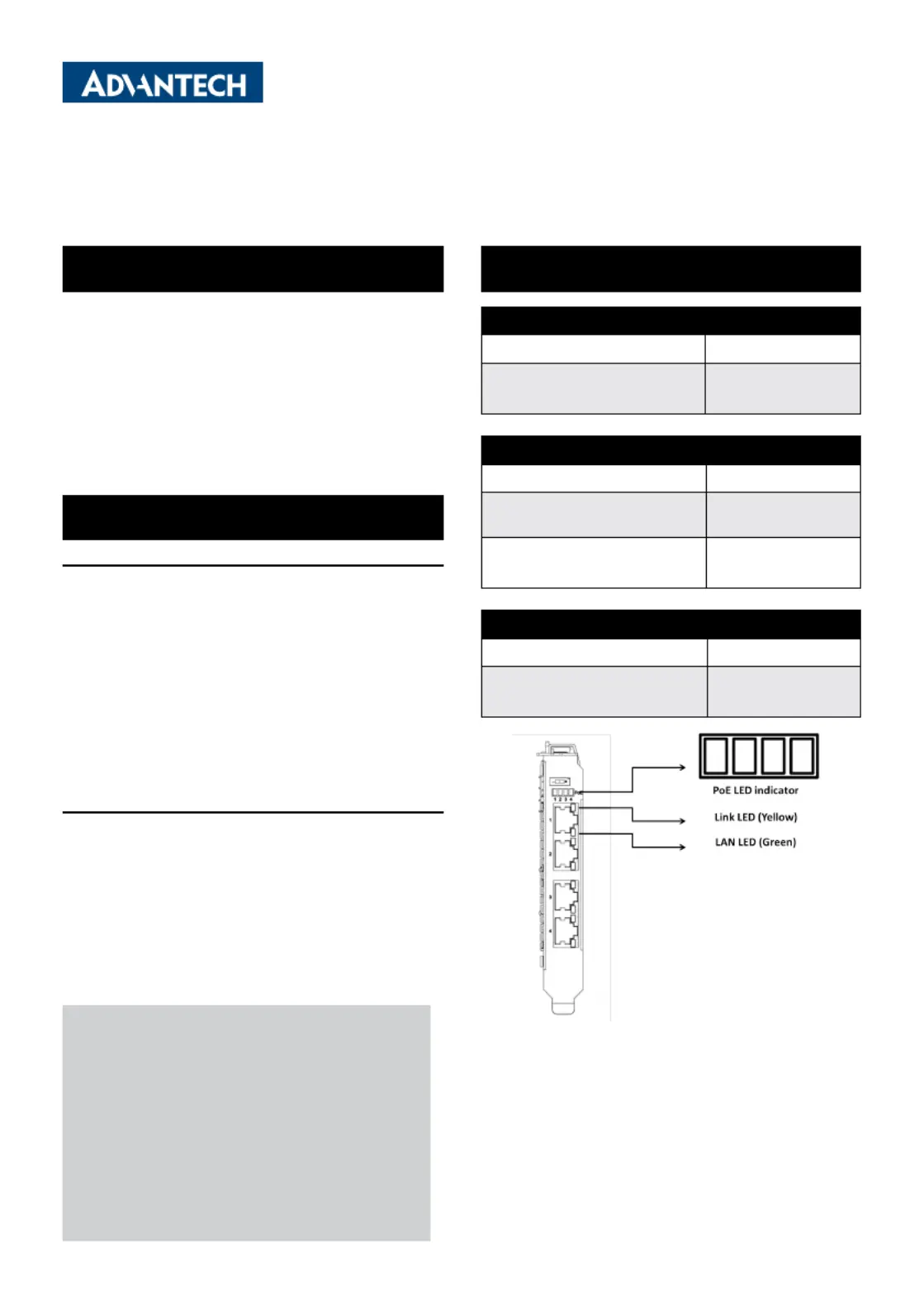

Figure 1: Bracket LED Indicators
ConnectorsPackingList
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
https://www.advantech.com/en/contact/service-
request-form?subject=technical%2bsupport
This manual is for the PCIE-1674/72E-BE.
Part No. 2042167400
Printed in China
1st Edition
August 2023
Specications
2 PCIE-1674/72E-BE Startup Manual
AT/ATX12VDCinput4-pinpowerconnector
Pin Function
Pin 1 GND
Pin 2 GND
Pin 3 +12V
Pin 4 +12V
Figure 2: AT/ATX 12V DC input 4-pin Power Connector
PoEPowerSwitch
Pin Function
On PoE power On
1PoE power O
* Default is PoE on.(position on)
** Switch o PoE (position 1) before system boot up
***Don’t switch PoE on or o during system running
Figure 3 PoE Power Switch
BoardIDSwitch
Pin Function
1
Congure dierent on/o position to set-
up the board ID in multi-card scenario
2
3
4
Figure 4 Board ID Switch
FCCClassA
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio fre-
quency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference
to radio communications. Operation of this equipment in
a residential area is likely to cause interference in which
case the user is required to correct interference at his own
expense.
CE
This product has passed the CE test for environmental
specications when shielded cables are used for external
wiring. We recommend the use of shielded cables. This kind
of cable is available from Advantech. Please contact your
local supplier for ordering information.
Connector(Cont.) Connector(Cont.)
DeclarationofConformity
PCIE-1674/72E-BE Startup Manual 3
BoardLayout

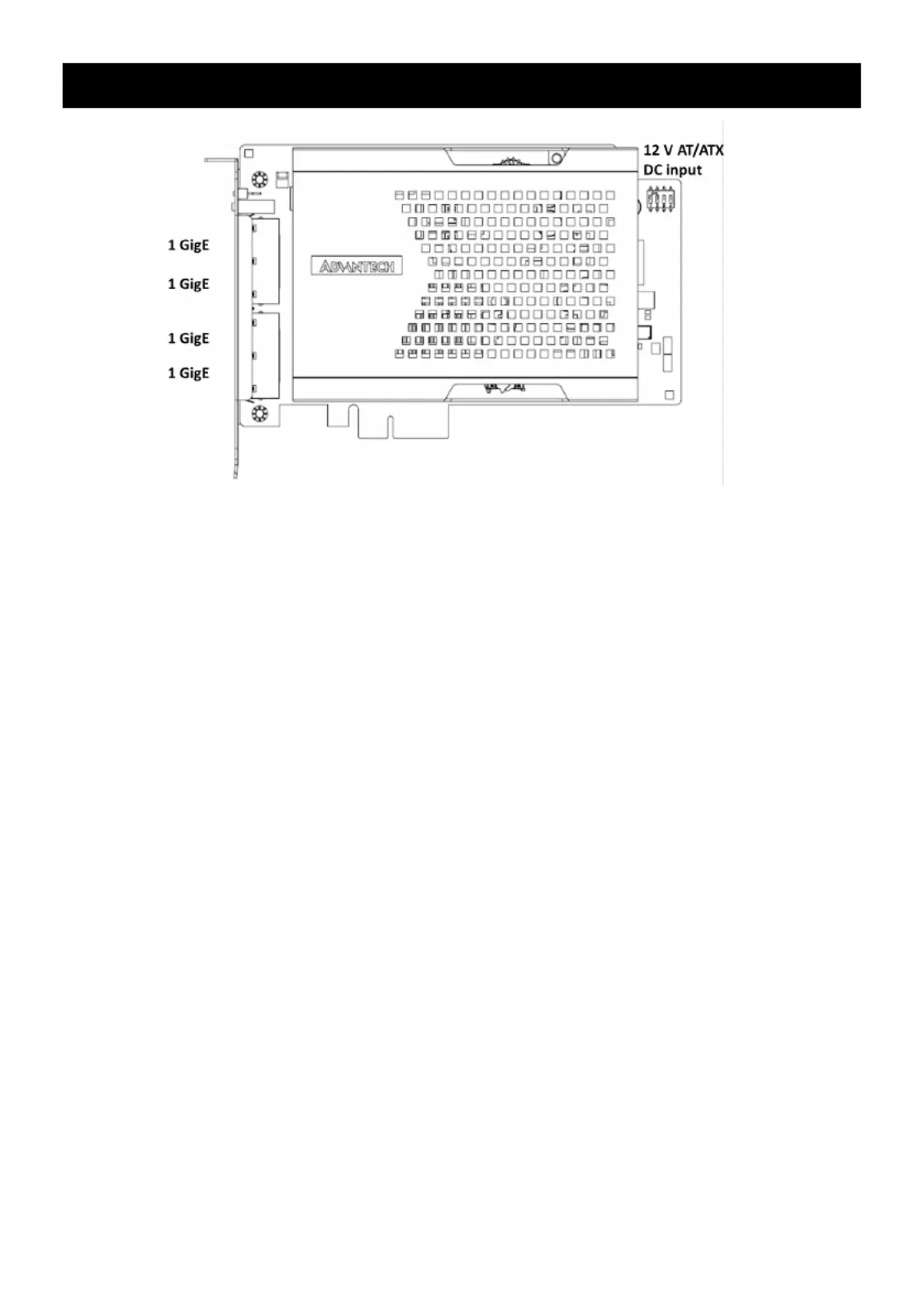

Figure 5: Board Layout
