Seite 1/19
UNO-137 V2 Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
1. UNO-137 V2 (with DIN-rail mount)
2. 1 x 2x5 Plug-in block for COM port
3. 1 x 2x1 Plug-in block for power wiring
4. 1 x 2x10 Plug-in block for digital I/O wiring
5. 1 x M2x4L screws for mPCIe card installation
6. 1 x Earth-ground cable
7. Startup Manual
8. China RoHs sheet
9. Warranty card
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note: AcrobatReaderisrequiredtoviewanyPDFle.
Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe)
UNO-137 V2
Small-Size Integrated DIN-Rail IPC with Intel®
Atom® x6413E and x6425RE
Startup Manual
Caution: DANGER OF EXPLOSION IF BATTERY IS
INCORRECTLY REPLACED. REPLACE ONLY
WITH THE SAME OR EQUIVALENT TYPE
RECOMMENDED BY THE MANUFACTURER,
DISCARD USED BATTERIES ACCORDING TO
THE MANUFACTURER’S INSTRUCTIONS.
Attention: DANGER D’EXPLOSION SI LA BATTERIE EST
INEXACTEMENT REMPLACÉE. REMPLACEZ
SEULEMENT AVEC LA MÊME CHOSE OU
LE TYPE ÉQUIVALENT RECOMMANDÉ PAR
LE FABRICANT, JETTENT LES BATTERIES
UTILISÉES INSTRUCTIONS DE S SELON
FABRICANT DES’.
Processor System
• Intel® Atom® x6413E, 1.5 GHz (up to 3.0 GHz)
• Intel® Atom® x6425RE, 1.9 GHz
Memory
• Built-in 8 GB DDR4, 3200 MHz (Up to 32 GB)
Graphics
• Intel® UHD Graphics for 10th Gen
Serial Ports
• 2 x RS-232/422/485 (terminal block)
50 bps ~115.2 kbps (isolation protection: 2500 VDC)
Ethernet
• Intel® i226-ITGbE, IEEE802.1AS, 802.3az
Storage
• 1 x M.2 M-Key 2242 SSD (PCIe p1-x2 / SATA signal)
Expansion
• 1 x Full-size mPCIe (PCIe/USB 2.0/SATA signal)
• 1 x M.2 (E-Key) 2230 Wi-Fi modules (PCIe 2x signal/
USB 2.0)
• 1 x Nano SIM card slot
External I/O
• Display: 2 x DP 1.2, up to 4096 x 2160 @ 60 Hz
• USB: 3 x USB 3.2 Gen2 (Type A), 1 x USB 2.0 (Type A)
• Serial: 2 x RS-232/422/485 (terminal block)
50 bps ~115.2 kbps (isolation protection: 2500 V
DC
)
Power Requirement
• Power Type: ATX
• Power Input Voltage: 10 V ~ 36 V
DC
• Power Connector: 1 x 2-pin terminal block
• Minimum Power Input: 12 V
DC
5 A, 24 V
DC
2.5 A
Specications
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our sup-
port website for UNO-137 V2 at:
Register your products on our website and get 2
months extra warranty for free at:
http://www.register.advantech.com
Part No. 2044013700 1st Edition
Printed in China August 2023
Packing List (Cont.)
2 UNO-137 V2 Startup Manual
ThisproductisintendedtobesuppliedbyaUL-certied
powersupplyorUL-certiedDCsourcerated19Vdc,4.74
Aminimum,TMA50°Cminimum(safetycerticateoperation
temperature 40°C), if you need further assistance, please
contact Advantech for further information.
Environment
• Operation Temperature:
CPU x6413e: -40°C ~ 70°C/-40°F ~ 158°F with 0.7m/s
airow,withwide-temperature(-40°C~85°C/-40°F~
185°F) peripherals
CPU x6425RE: -40°C ~ 60°C/-40°F ~ 140°F with 0.7m/s
airow,withwide-temperature(-40°C~85°C/-40°F~
185°F) peripherals
• Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)
• Relative Humidity: 95% RH @ 40°C/104°F, non-
condensing
Physical Characteristics
• Dimensions (W x H x D): 35 mm x 105 mm x 150 mm
(1.4 in x 4.1 in x 5.9 in)
• Weight: 0.8 kg (1.7 lb)
The computer is supplied with a battery-powered realtime
clock circuit. There is a danger of explosion if the battery is
incorrectly replaced. Replace only with the same or equiva-
lent type recommended by the manufacturer. Discard used
batteries according to the manufacturer’s instructions.
This device complies with the requirements in Part 15 of
the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired opera-
tion.
Specications(Cont.)
Declaration of Conformity

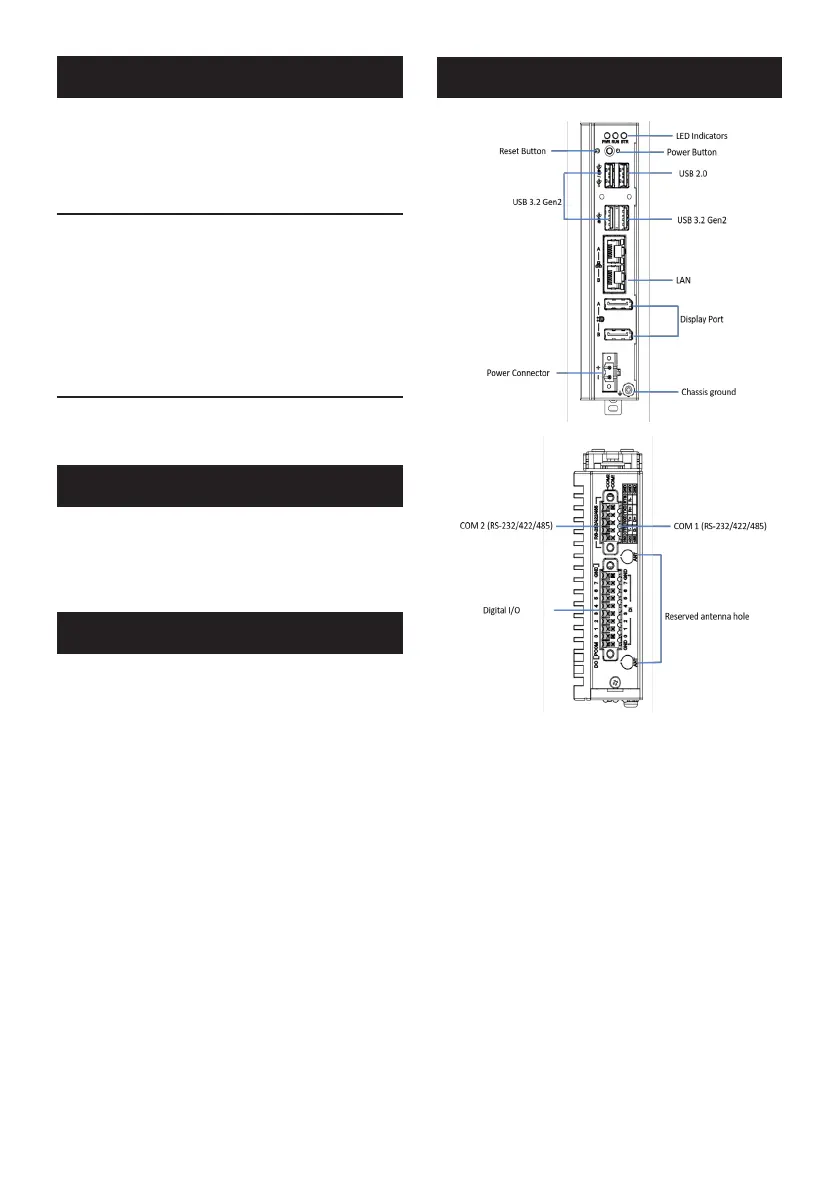

System I/O Interface
Battery
Produktspezifikationen
