Seite 1/13

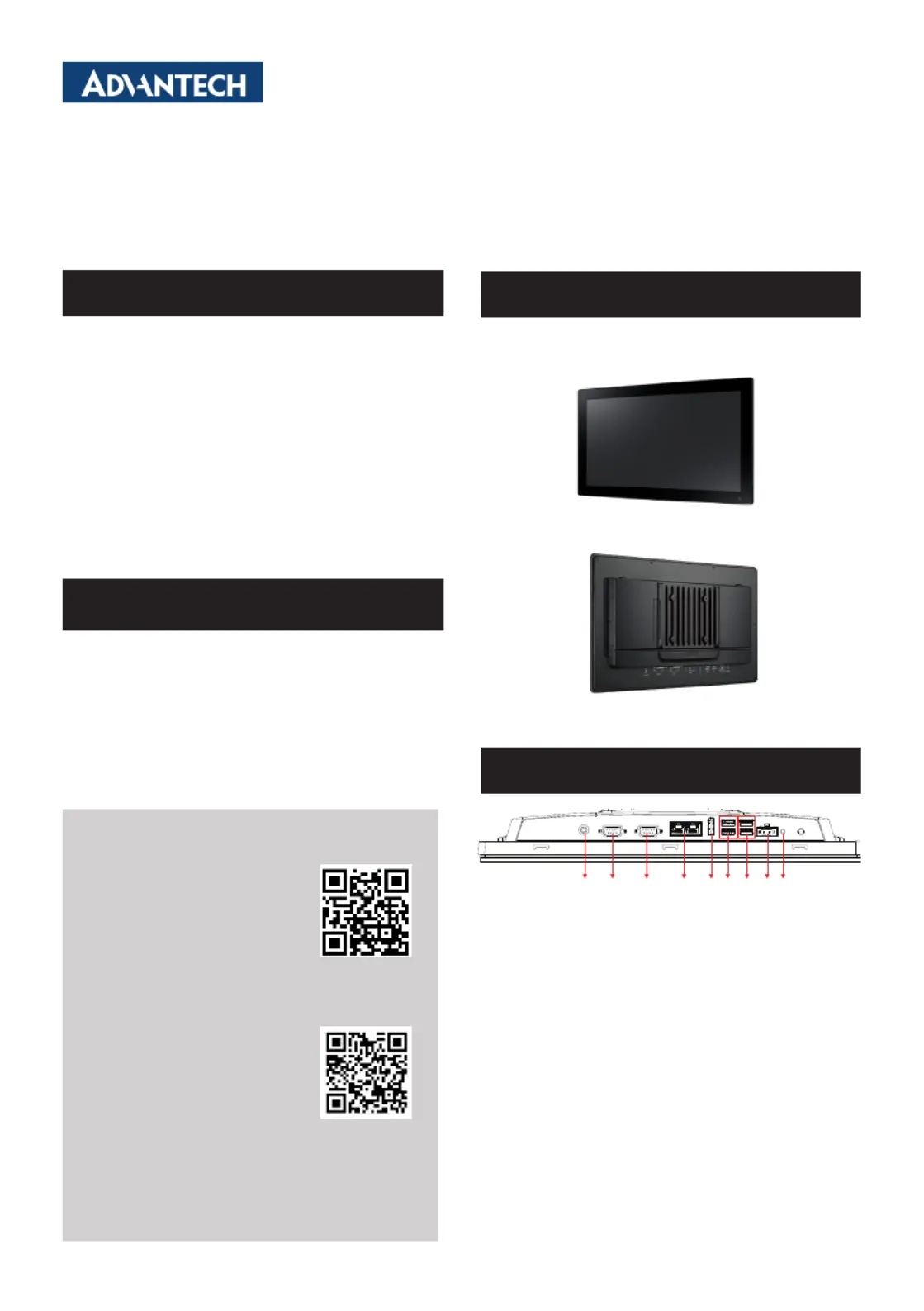

PPC-315/318/321SW Series Startup Manual 1
Before installation, ensure that the following items are
included with the product:
1. 1 x Panel PC
2. 1 x PPC-315SW/318SW/321SW ADL_N startup manual
3. 1 x Phoenix connector
4. 8/10x Mount brackets (8 for PPC-315SW; 10 for PPC-
318SW/321SW)
5. 8/10x Mount screws(8 for PPC-315SW; 10 for PPC-
318SW/321SW)
If any of the above items are missing or damaged, contact
your distributor or sales representative immediately.
Before installing software on the panel PC, install the cor-
responding drivers to ensure full functionality.
All drivers can be downloaded from the Advantech website
at http://www.advantech.com.
PPC-315SW/318SW/321SW ADL_N
15.6”/18.5”/21.5” Fanless Widescreen
Panel PC with Intel® N97 Quad-Core Processor
Startup Manual
Note: The examples provided in this manual are of the
PPC-315SW ADL_N model.
Front View
Rear View
A. Line out F. 2 x USB 3.2
B. COM1:RS-232/422/485 G.2 x USB 2.0
C. COM2: RS-232/422/485 H. DC-In
D. 2 x LAN I. Power Button
E. DP
A B C D E F G H I
Packing List
For more information about this product, visit the
Advantech website at
http://www.advantech.com
For technical support and customer service, visit the
Advantech support website at
http://support.advantech.com/support/new_de-
fault.aspx
This manual is for the 315SW/318SW/321SW ADL_N
series, Rev.A0, models.
Part No. 2041315000
Printed in China
Edition 1
July 2024
Appearance
I/O Layout
Software Installation
2 PPC-315/318/321SW Series Startup Manual
Specications
Model Name PPC-315SW ADL_N PPC-318SW ADL_N PPC-321SW ADL_N
System
CPU Intel® N97 quad core
Frequency 2.0 GHz upto 3.6GHz with Turbo
Cache 6MB
Memory 1 x SODIMM, DDR5 4800MHz, max. 16GB
Storage
1 x M.2 M Key 2242/2280 (SATA or NVME PCIe x 1),
1 x 2.5” SATA bay
Network (LAN) 2 x 10/100/1000/2500 Mbps Ethernet (Intel I226 LM)
I/O
2 x RS-232/422/485
2 x USB 3.2, 2 x USB 2.0
1 x DP
1 x Line out
Expansion
1 x M.2 B key 2242 or 3042/3052 (SATA, PCIe X1 ,USB 3.0 & SIM slot)
1 x M.2 E Key 2230 (PCIe & USB 2.0)
1 x iDoor (optional)
1 x PCI or PCIe p2-x1 (optional)
Watchdog Timer 255 timer levels; setup by software
Speaker 1 x 2W
Physical
Characteristics
Dimensions
395.7 x 245.1 x 50.4mm
(15.6 x 9.6 x 2.0 in)
464.5 x 285.5 x 53.4mm
(18.3 x 11.2 x 2.1 in)
529.6 x 321.3 x 53.4mm
(20.9 x 12.6 x 2.1 in)
Weight 4.26kg 5.17kg 6.24kg
OS Support OS Support Windows 10 LTSC, Windows 11, Linux, Andriod
Power
Comsumption
Input Voltage 24V
DC
± 20%
Power Consumption 35W 40W 45W
LCD
Display Type 15.6" FHD TFT LED LCD 18.5" WXGA TFT LED LCD 21.5" FHD TFT LED LCD
Max. Resolution 1920 x 1080 1366 x 768 1920 x 1080
Viewing Angle
89 (left), 89 (right), 89
(up), 89 (down)
85 (left), 85 (right), 80 (up),
80 (down)
89 (left), 89 (right), 89
(up), 89 (down)
Luminance (cd/m
2
) 350 450 250
Contrast Ratio 800 1000 1000
Backlight Lifetime 50,000hrs (min.) 50,000hrs (min.) 50,000hrs (min.)
Touchscreen
Touchscreen type Multi-touch projected capacitive
Light Transmission >86%
Controller USB interface
Environment
Operating Temperature -10 ~ 50 °C (32 ~ 122 °F)
Storage Temperature -20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity 95% @ 40°C (non-condensing)
Shock Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27
Vibration
Operating Random Vibration Test 5~500Hz, 2Grms @with SSD, Follows IEC 60068-
2-64
EMC CE,FCC Class B, BSMI, EN60601-1-2, UKCA
Safety CB, UL, CCC, UKCA
Front Panel Protection IP66 compliant
Note: Test conditions for the power consumption values provided above were as follows:
Memory: 8G DDR5
SSD: 64GB
Windows10 IOT Enterprise
Software: Burn-In Test 8.1
PPC-315/318/321SW Series Startup Manual 3

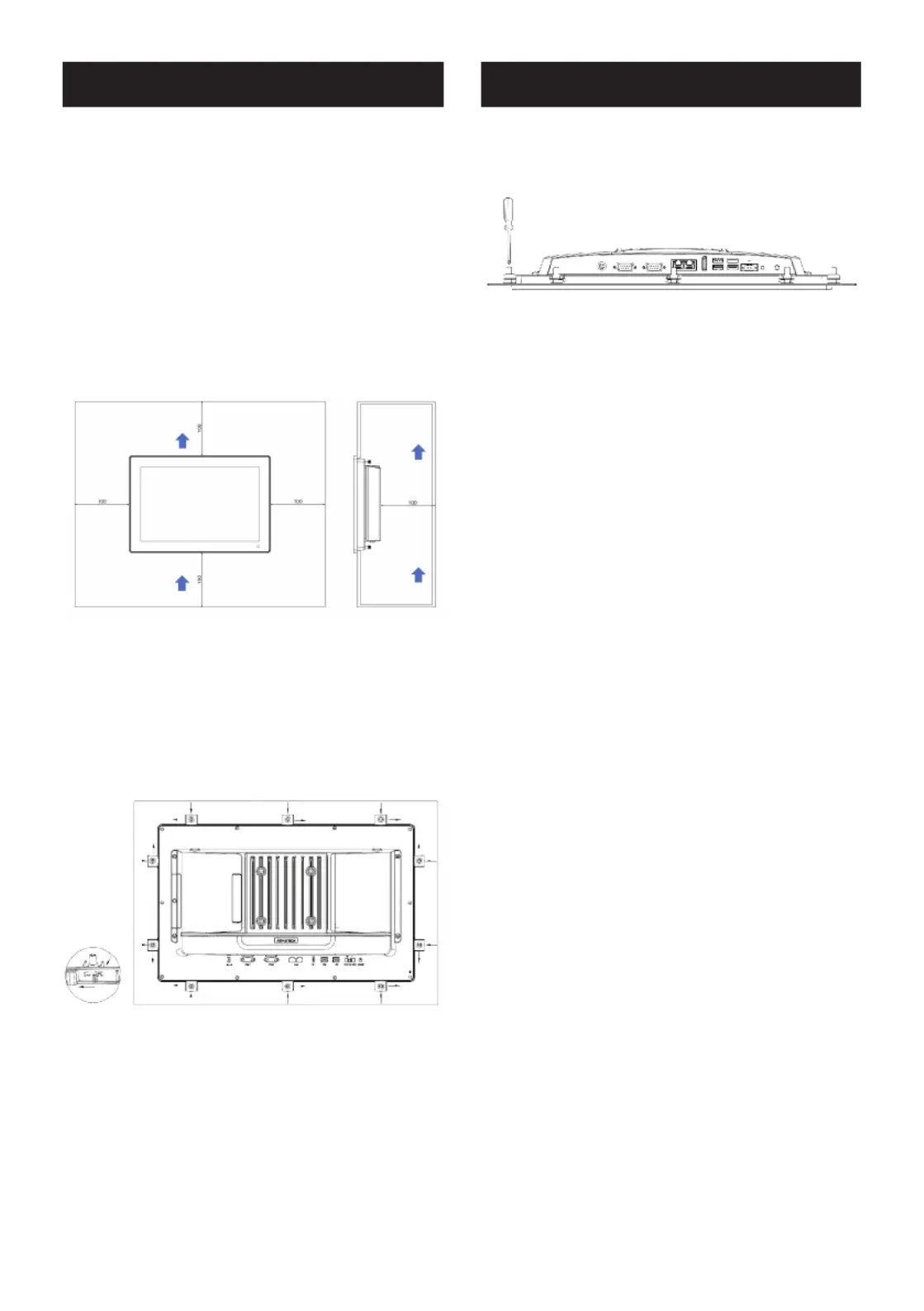

Panel Mounting
4. Fasten the screws with a torque of 2 kgf-cm. These
screws will push the mounting panel, ensuring a secure
and stable unit.0.
Fasten the hook bracket
Before installing the PPC-300SW ADL_N panel computer
into the panel opening, ensure that the adhesive waterproof
gasket on the front bezel is correctly positioned.
1. Cut out a section from the panel based on the dimensions
of the Panel PC. The dimensions for the panel opening are
as follows:
– PPC-315SW: 386.8 x 236.2 mm (15.23 x 9.30 inch)
– PPC-318SW: 455.6 x 276.6 mm (17.94 x 10.89 inch)
– PPC-321SW: 520.7 x 312.4 mm (20.5 x 12.3 inch)
2. Install the PPC into the panel opening, ensuring
adequate air circulation with a required clearance on
all sides. Refer to the diagram for the minimum
clearance (100mm), air inlet and outlet directions (blue
arrows), and a suggested mounting panel thickness of
less than 6mm (0.236”).
Panel Mounting – Positioning
3. Retrieve the clamps with long screws from the acces-
sory pack. Insert the clamps into the holes and slide
the clamp in the direction shown in the diagram below.
Securely hook the clamps around the four sides of the
bezel for a rm hold.
Fasten the hook bracket
Unit: mm
Panel Mounting (Cont.)
