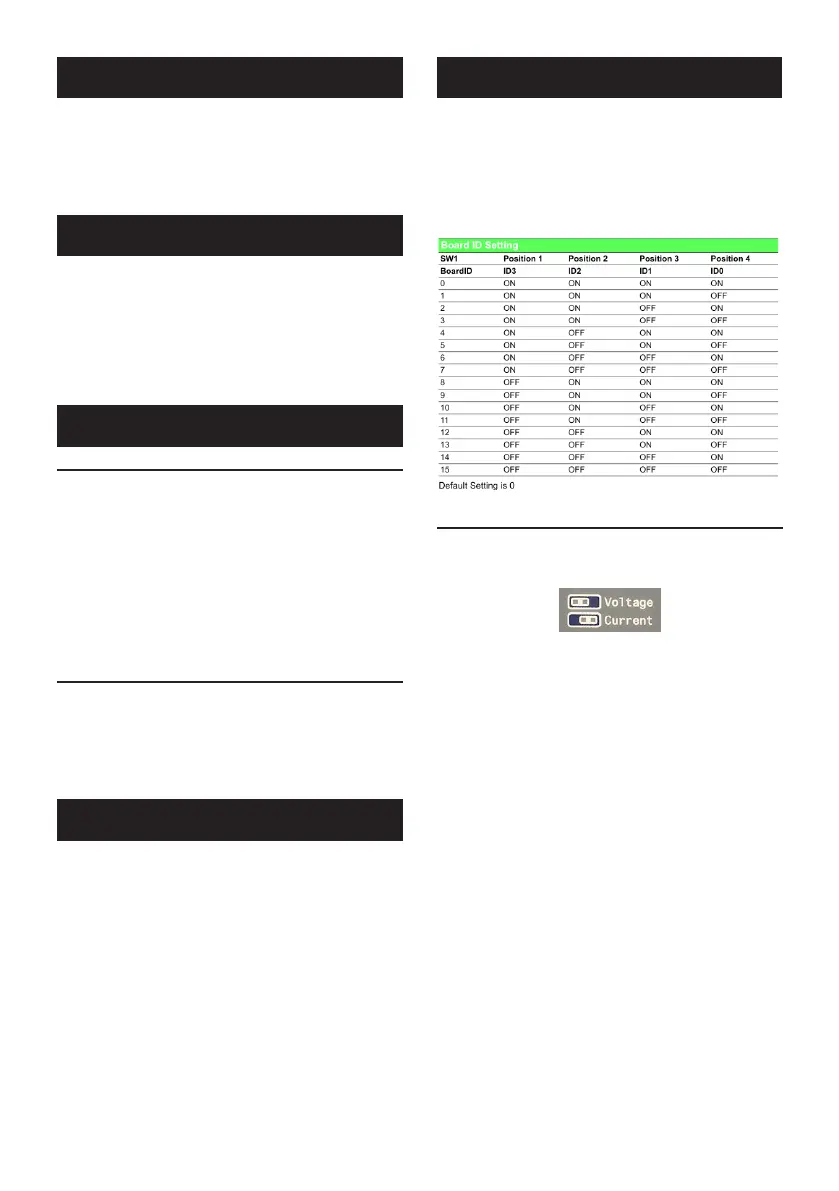

USB-5817 Startup Manual 1

Before installation, please ensure that the following items

are included with the product:

1. 1 x USB-5817 module

2. 4 x Terminal blocks

3. 1 x Startup manual

4. 1 x USB 3.0 lockable cable (1 m)

If any of the above items are missing or damaged, contact

your distributor or sales representative immediately.

For more detailed information regarding this product, please

download the USB-5817 user manual from the Advantech

website.

Advantech’s USB-5817 is an industrial USB 3.0 isolated

analog input module. To ensure easy installation in cabinet

computers, USB-5817 modules are compact and equipped

with a DIN rail mount kit. The built-in USB hub can support

a daisy-chain topology, while Euro-type pluggable terminal

blocks and LED indicators facilitate conguration and

maintenance.

USB-5817

8-Channel,16-Bit, 200 kS/s USB 3.0 Isolated

Analog Input Module

Startup Manual

General

•Connectors:

- 2 x 10-pin terminal block (3.81 mm, AI)

- 2 x 3-pin screw terminal block (3.81 mm, power)

- USB 3.0 type A (downstream port)

- USB 3.0 type B (upstream port)

•Dimensions:

120 x 120 x 40 mm

(4.72 x 4.72 x 1.57 in

)

•OperatingTemperature: 0 ~ 60 °C (32 ~ 140 °F)

•StorageTemperature:-40 ~ 70 °C (-40 ~ 158 °F)

•StorageHumidity:5 ~ 95% RH (non-condensing)

•PowerSupply:10 ~ 30 V

•Interface: USB 3.0

•DataTransferRates: 5 Gbps

•PowerConsumption:

- Using USB bus power: 350 mA typical @ 5 V

- Using external power: 100 mA typical @ 24 V

•ESDProtection

- Air: ±8 kV

- Contact: ±6 kV

•DCSurgeProtection: 2 kV

AnalogInput

•NumberofInputChannels:8 differential, can be en-

abled/disabled independently using software

•A/DConverter(ADC)Resolution:16 bits (15 bits for

current measurement)

•A/DConverter(ADC)Type:Successive approximation

(SAR)

•MaximumSampleRates(fs):200 kS/s shared by all

channels

•InputCoupling:DC

•InputRange:±10 V, 0 ~ 20 mA

•InputCommon-ModeVoltageRange:±275 V

•AbsoluteAccuracy

-OffsetError:< ±1 mV

- GainError:< ±0.01% of full-scale range

•TemperatureDrift

-OffsetDrift:25 ppm/°C

- GainDrift:15 ppm/°C

•Bandwidth(-3dB):10 kHz

•IdleChannelNoise:0.27 mV

RMS

(16 bits effective resolu-

tion)

•Signal-to-NoiseRatio(SNR):87 dB

•TotalHarmonicDistortion(THD):-98 dB

•TotalHarmonicDistortionPlusNoise(THD+N):-87 dB

•Spurious-FreeDynamicRange(SFDR):102 dB

•EffectiveNumberofBits(ENOB):14.2 bits

PackingList

For more information about this or other Advantech

products, please visit our website at

http://www.advantech.com

For driver/SDK downloads and technical support

services, please visit our support website at

http://support.advantech.com

This manual is for USB-5817.

Part No. 2041581700

Printed in China

Edition 1

January 2019

Specications
