Seite 1/12
GB - User Manual
F - Manuel d'Utilisation - p. 5
DMX CHANNELS - p. 9
FR IT BE NL DE
Assembled in PRC
Designed by LOTRONIC S.A.
Av. Z. Gramme 9
B - 1480 Saintes

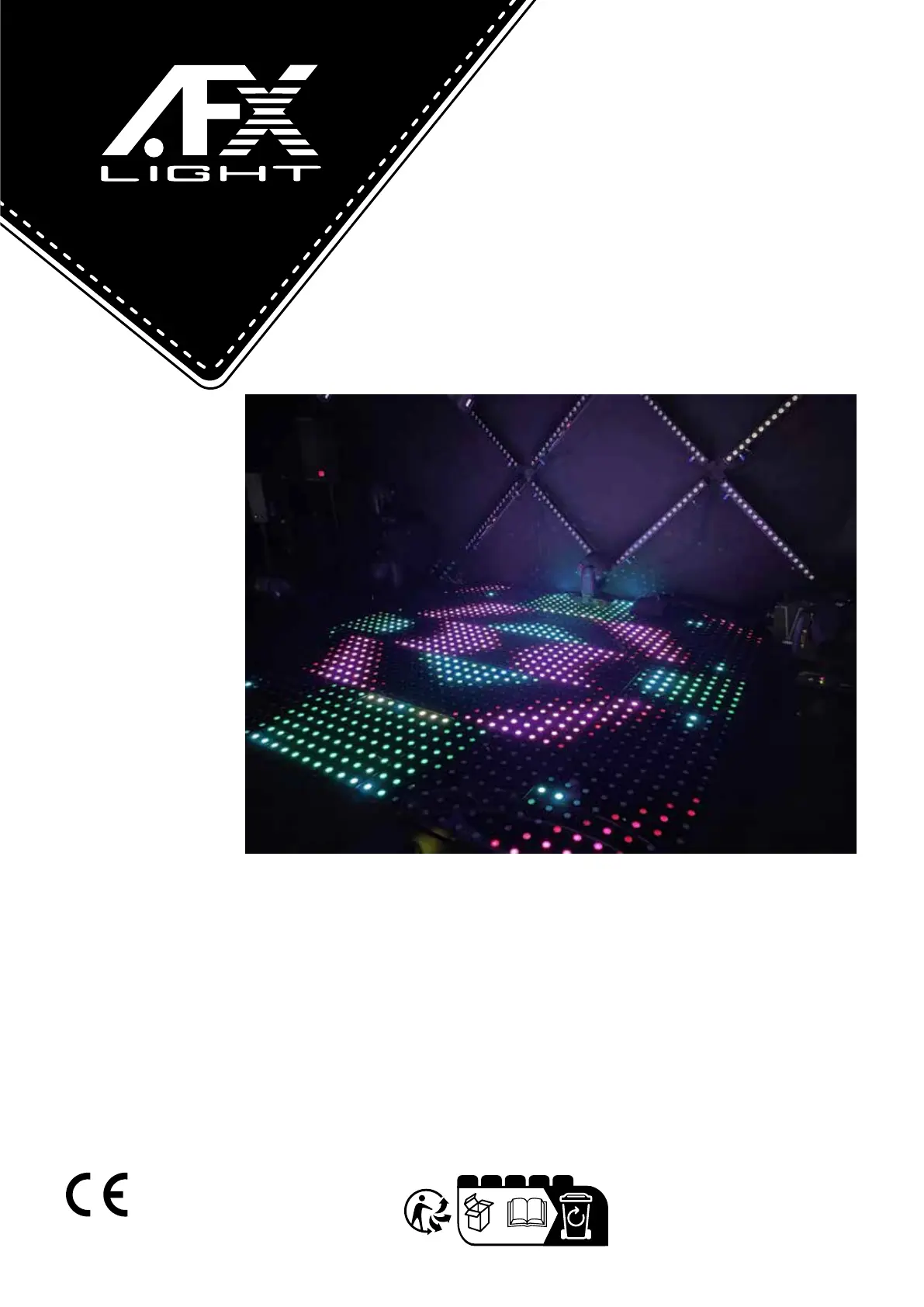

CRAZY-DANCEFLOOR
CODE: 16-2040
LED FLOOR 3 X 3M
PLANCHER A LED 3 X 3M
EN 2
© Copyright LOTRONIC 2023
USER MANUAL
EXPLANATION OF SYMBOLS
The unit complies with CE standards
For indoor use only
Class II protection with dual protection without earth connection
Please read this manual carefully before operating this product.
SAFETY RECOMMENDATIONS
• Please read these instructions carefully, they include important information about the installa-
tion, usage and maintenance of this product.
• Please keep this User Guide for future reference. If you sell the unit to another user, be sure that
he also receives this instruction booklet.
• Always make sure that you are connecting to the proper voltage, and that the line voltage you
are connecting to is not higher than that stated on the unit.
• This product is intended for indoor use only!
• To prevent risk of re or shock, do not expose xture to rain or moisture.
• The max. ambient temperature (Ta) is 40°C. Don’t operate the xture at higher temperatures.
• In the event of a serious operating problem, stop using the unit immediately. Never try to repair
the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction.
Please contact the nearest authorized technical assistance center. Always use the same type of
spare parts.
• Never disassemble the parts while power is on.
• Put the product only on a at, stable surface.
INSTALLATION
Be very careful during installation to avoid bumps and damages.
First assemble all parts before connecting the danceoor to the mains
and signal.
The slabs must be connected to each other according to the arrows on
the bottom with the proper orientation. DO NOT rotate the slabs by 90°
or 180°!
Place the slabs on the oor by following the direction of the arrows and
align the magnets perfectly to the magnets of the previous slab otherwise
the signal and power will not be transmitted properly.
The 4 corners of every slab are empty to pass the signal
and power lines.
Once you have aligned all slabs, connect the controller
and the power adapter to top edge of the dance oor.
Now place the edges around the dance oor.
POWER SUPPLY
This product uses an ex-
ternal power adaptor as
the lamps are powered by
DC28V. The external power
supply converts 100-
250V~ voltage into 28V𝌃
for use by the xture.
