Installing Company: Service Rep. Name: _______________ __________________________________

Address: Phone #: _____________________________________________ __________________

Rev. 050613

More than just power.

Z1409

VertiLine563

Rack Mount

Power Supply/Charger

Installation Guide

- 2 - VertiLine563 Installation Guide

Overview:

Altronix VertiLine563 is a EIA 19” 1U rack mountable dual independent power supply with optional battery backup

that provides 56VDC. It is intended primarily to be used in conjunction with respective Altronix current and future

products that require 56VDC input such as: eBridge4PCRX, eBridge16PCRX & eBridge1PCRX multi-port and

single port IP/PoE over coax adapters. However, it can also be employed wherever 56VDC level power sources

are needed.

There are applications, which may require delivering power in a range of 48VDC to 57VDC over CAT5 cable for

distances up to 100m. For these applications, transmission at the higher voltage is more efficient, as it reduces

cable losses when compared to the lower voltage.

Specifica tions:

Agency Listings:

• UL/cUL: UL 60950-1

Information Technology Equipment.

• European Conformity.CE

• C-Tick C-Tick Compliant.

Input:

• Input 115VAC, 60Hz, 4.9A.

Output:

• 56VDC @ 3A each output.

(When using battery backup, output rating is

56V/2.7A for respective outputs).

Battery Backup:

• Built-in charger for sealed lead acid or

gel type batteries.*

*External batteries are optional.

• Automatic switch over to stand-by battery

when AC fails.

• Maximum charge current 0.3A.

Additional Features:

• Two (2) AC LED indicators.

• IEC 320 - 3-wire grounded line cord (detachable).

• Unit can be rack or shelf mounted.

Rack Dimensions (H x W x D approx.):

• 1U rack mount chassis for use in standard

EIA 19” rack.

1.625” x 19.125” x 8.5”

(41.3mm x 486mm x 216mm)

Accessories:

RE2 - Rack Mount Battery Enclosure:

• Fits up to four (4) 12VDC/7AH batteries.

• 2U rack mount chassis for use in standard

EIA 19” rack.

Installation Instructions:

1. Suitable for rack, wall or shelf mounting (refer to page 7).

a. If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack

environment may be greater than room ambient. Therefore, consideration should be given to installing

the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by

the manufacturer.

b. Installation of the equipment in a rack should be such that the amount of airflow required for safe

operation of the equipment is not compromised.

c. Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to

uneven mechanical loading.

d. Consideration should be given to the connection of the equipment to the supply circuit and the effect that

overloading of the circuits might have on overcurrent protection and supply wiring.

Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

e. Reliable earthing of rack-mounted equipment should be maintained.

Particular attention should be given to supply connections other than direct connections to the branch

circuit (e.g. use of power strips).

2. Insert terminal blocks included with unit in sockets in the rear of unit (Fig. 2, pg. 4).

3. Plug power cord into grounded 115VAC, 60Hz receptacle to energize unit (Fig. 2a, pg. 4).

4. Measure output voltage on both output terminal blocks marked [– OUT1] + and [– OUT2 +] before connecting

devices. Output voltage should be nominally 56VDC.

5. Unplug power cord from grounded 115VAC, 60Hz receptacle to de-energize unit (Fig. 2a, pg. 4).

VertiLine563 Installation Guide - 3 -

6. Typical 56VDC device hookup:

Connect either one (1) or two (2) devices to VertiLine563.

Connect first 56VDC device Input to VertiLine563 terminals

marked [– OUT1 +].

If applicable, connect second 56VDC device Input to VertiLine563

terminals marked [– OUT2 +]

(Fig. 1, pg. 3, Fig. 3, pg. 4), carefully observing polarity.

CAUTION: Outputs 1 and 2 should not be connected in parallel.

7. For application hookup to Altronix eBridge IP/PoE over coax products:

a. eBridge4PCRX - Connect either one (1) or two (2) eBridge4PCRX to VertiLine563.

Connect first eBridge4PCRX Input to VertiLine563 terminals marked [– OUT1 +].

If applicable, connect the second eBridge4PCRX Input to VertiLine563 terminals marked [– OUT2 +]

(Fig. 1, pg. 2, Fig. 4, pg. 5), carefully observing polarity.

b. eBridge16PCRX - Connect eBridge16PCRX Input 1 to VertiLine563 terminals marked [– OUT1 +],

connect eBridge16PCRX Input 2 to VertiLine563 terminals marked [– OUT2 +] (Fig. 1, pg. 3, Fig. 5, pg. 6),

carefully observing polarity.

8. When batteries are not used, a loss of AC will result in the loss of output voltage. When the use of stand-by

batteries is desired, they must be lead acid or gel type. Connect four (4) 12VDC batteries wired in series to

terminals marked [+ BAT –] , carefully observing polarity.(Fig. 1, pg. 3)

9. Plug power cord into grounded 115VAC, 60Hz receptacle to energize unit (Fig. 2a, pg. 4).

WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or mois-

ture. This installation should be made by qualified service personnel and should conform to

the National Electrical Code and all local codes.

Technical Specifications:

Parameter Description

No. of Outputs Two (2) outputs. Each output rated @ 150W each. Current per output = 2.7A.

Input Power

Requirements

115VAC 60Hz, 4.9A.

Indicators AC LEDs, one (1) per power supply.

Battery Backup

Battery stack is 4x 12VDC lead acid gel cells connected in series.

Battery backup one (1) per power supply.

Environmental

Conditions

Operating ambient temperature (UL60950-1): 0ºC to 40ºC (32ºF to 104ºF).

Relative humidity: 85%, +/ 5%–

Storage temperature: – 20º to 70ºC (– 4º to 158ºF).

Operating altitude: –304.8 to 3,048m.

Regulatory

Compliance UL/cUL Listed for Information Technology Equipment (UL 60950-1).

CE European Conformity,

C-Tick compliant.

Z1409

56VDC

output

To optional

stand-by

batteries

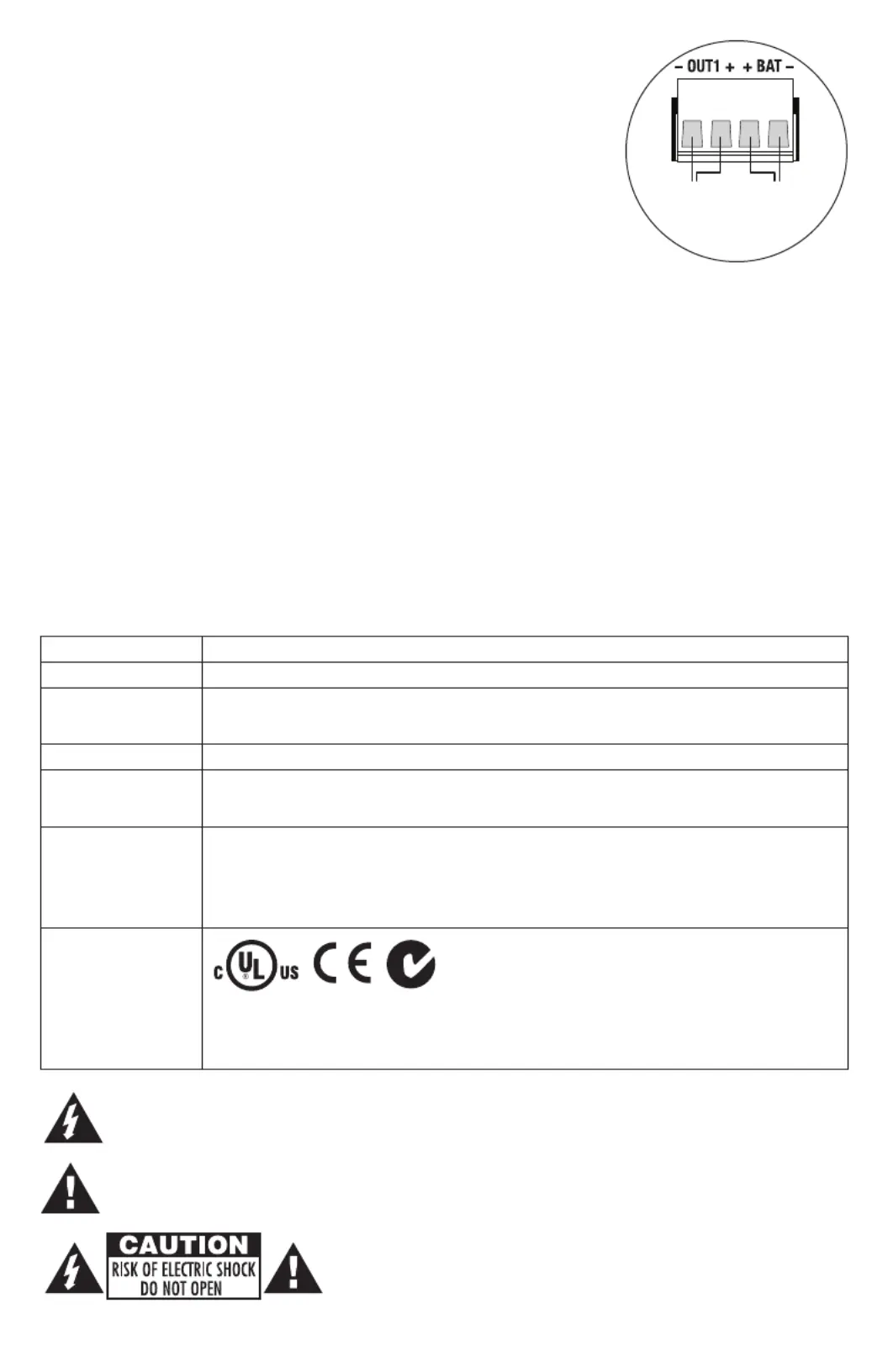

Fig. 1

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user

to the presence of an insulated DANGEROUS VOLTAGE within the product’s enclosure that may be of

sufficient magnitude to constitute an electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of impor-

tant operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION: To reduce the risk of electric shock do not open enclosure.

There are no user serviceable parts inside.

Refer servicing to qualified service personnel.
