SMP3ET
High Current Power Supply/Charger
Overview:
The SMP3ET High Current Power Supply/Charger converts a low voltage AC input to a low voltage DC output. This
general purpose power supply has a wide range of applications for access control, security and CCTV system accessories
that require additional power.
Specifications:
Voltage Output Selection Table:
Output Voltage
Switch Position
1 2
6VDC ON OFF
12VDC OFF OFF
Installation Instructions:
1. Mount SMP3 board (see back).
2. Mount unit in the desired location. Mark and predrill holes in the wall to line up with the top two keyholes in the
enclosure. Install two upper fasteners and screws in the wall with the screw heads protruding. Place the enclosure’s
upper keyholes over the two upper screws; level and secure. Mark the position of the lower two holes. Remove
the enclosure. Drill the lower holes and install the three fasteners. Place the enclosure’s upper keyholes over the
two upper screws. Install the two lower screws and make sure to tighten all screws.
Secure enclosure to earth ground.
3. Set DC output voltage with switches (refer to Voltage Output Selection Table).
4. Connect the transformer (TP1640) to the terminals marked [AC].
Keep power-limited wiring separate from non power-limited wiring (115VAC / 60Hz Input, Battery Wires).
Minimum 0.25” spacing must be provided.
CAUTION: Do not touch exposed metal parts. Shut branch circuit power before installing or servicing equipment.
There are no user serviceable parts inside. Refer installation and servicing to qualified service personnel.
5. Measure output voltage before connecting devices. This helps avoiding potential damage.
6. Devices to be powered should be connected to the terminals marked [+ DC --- ], carefully observing polarity.
7. Connect battery to the terminals marked [+ BAT --- ] (battery leads included)
Note: When batteries are not used, a loss of AC will result in a loss of output voltage.
LED Diagnostics:
Red (DC) Green (AC) Power Supply Status
ON ON Normal operating condition.
ON OFF Loss of AC. Stand-by battery supplying power.
OFF ON No DC output. Short circuit or thermal overload condition.
OFF OFF No DC output. Loss of AC. Discharged or no battery present.
Input:
• 16VDCfromTP1640plug-intransformer.
Output:
• 6VDCor12VDCselectableoutput.
• 2.5ampcontinuoussupplycurrent.
• Filteredandelectronicallyregulatedoutput.
• Shortcircuitandthermaloverloadprotection.
Battery Backup:
• Built-inchargerforsealedleadacidor
gel type batteries.
• Automaticswitchovertostand-bybattery
when AC fails.
• Maximumchargecurrent0.3amp.
• Batteryshortcircuitprotection(circuitbreaker).
Visual Indicators:
• ACinputandDCoutputLEDindicators.
Features:
• Includesbatteryleads.
• Powersupply/chargerwithenclosureandTP1640
plug-in transformer (16.5VAC/40VA).
• Includesfour (4) nylon stadoffs
• Fitsone(1)12VDC/7AHor
two (2) 12VDC/4AH batteries.
Mechanical:
• EnclosureDimensions(HxWxDapprox.):
8.5”x7.5”x3.5”(215.9mmx190.5mmx88.9mm).
• BoardDimensions(WxLxHapprox.):
3”x3.5”x2”(76.2mmx88.9mmx50.8mm).

Altronixisnotresponsibleforanytypographicalerrors.Productspecificationsaresubjecttochangewithoutnotice.
14058thStreet,Brooklyn,NewYork11220USA,718-567-8181,fax:718-567-9056
website:www.altronix.com,e-mail:info@altronix.com,LifetimeWarranty,MadeinU.S.A.
IISMP3ET - Rev. 050301 K05N
+
DC
--
+
BA T -- AC AC
AC
DC
SW1
SW2
6 V 12 V 24 V
SW1 ON
SW2 OFF
OFF
OFF
ON
OFF
1 2
ON
Terminal Identification:
Terminal Legend Function/Description
AC/AC Low voltage AC input (TP1640).
+ DC –
6VDCor12VDC@2.5amp
continuous output.
+ BAT –
Stand-by battery connections.
Maximumchargerate300mA.

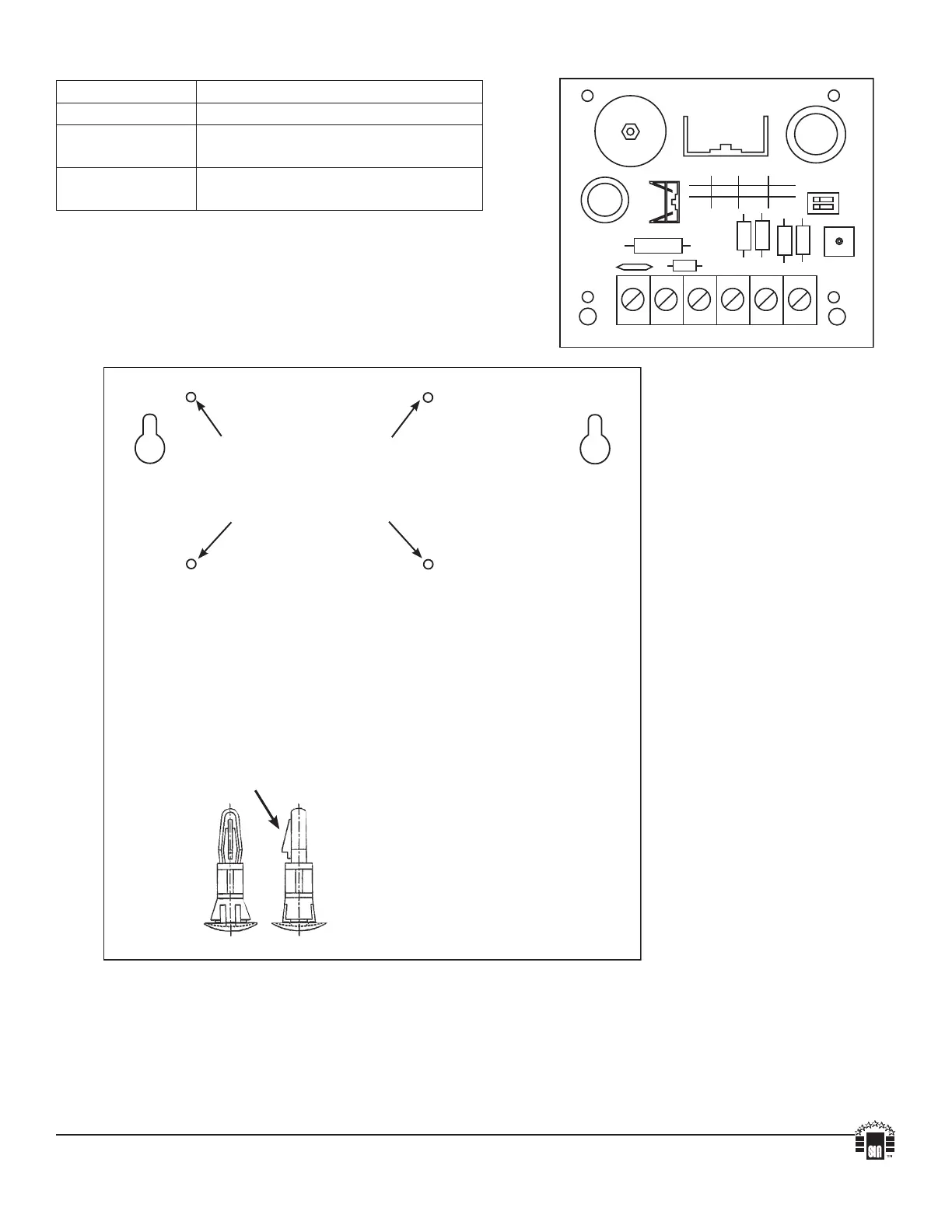

STEP 1: Use these holes to mount SMP3 by
pushing the nylon standoffs
(Fig. 1) through the back of the
enclosure. Nylon standoffs will snap into place.
(Fig. 1)
Nylon Standoff
STEP 2: Mount SMP3 circuit board to nylon fasteners
by pressing down circuit board onto nylon standoffs.
Note: Springlock on standoffs is used to remove
SMP3 circuit board.
Note: Four (4) stadoffs are provided in the SMP3 carton.
Springlock
