Seite 1/6
User Instructions
American DJ®
4295 Charter Street
Los Angeles, CA. 90058
www.americandj.com
4/04

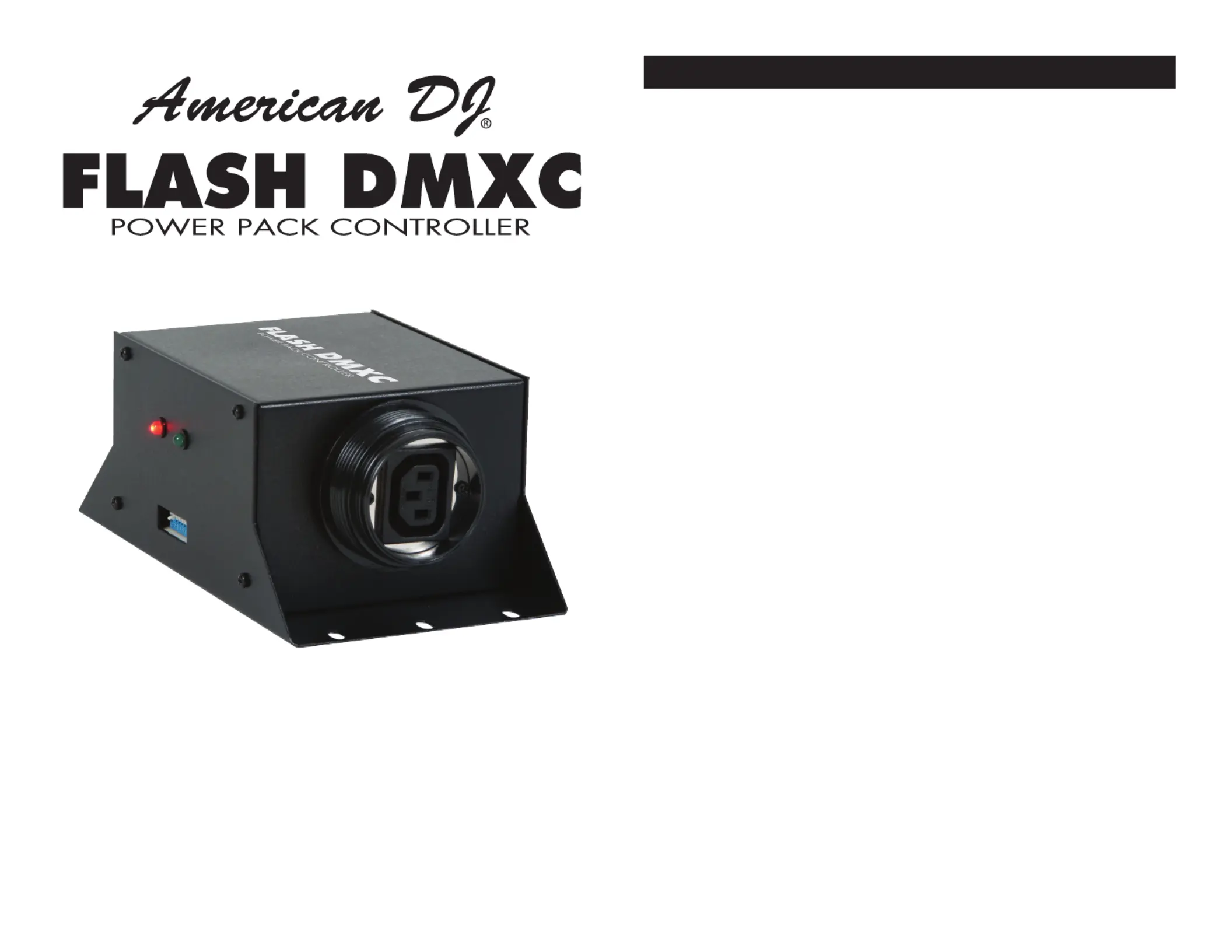

Flash DMXC™ Introduction
Introduction: Thank you for purchasing the Flash DMXC™ by
American DJ®. The Flash DMXC™ is used to control the Ameri-
can DJ® Flash Tubes™ (not included) via a DMX controller and
to design your own programs. The Flash Tubes™ are waterproof,
and can be used outdoors, the Flash DMXC™ is NOT waterproof.
This system is great for retail stores, displays, mood, architec-
tural, interior and exterior decoration, and clubs.
Customer Support: American DJ® provides a toll free customer
support line, to provide set up help and to answer any question
should you encounter problems during your set up or initial oper-
ation. You may also visit us on the web at www.americandj.com
for any comments or suggestions. For service related issue
please contact American DJ®. Service Hours are Monday
through Friday 9:00 a.m. to 5:00 p.m. Pacific Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2610
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or fire,
do not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do
not attempt any repairs yourself, doing so will void your manu-
factures warranty. In the unlikely event your unit may require
service please contact American DJ®.
PLEASE do not discard the shipping carton in the trash.
Please recycle when ever possible.
American DJ - www.americandj.com - Flash DMXC™ Instruction Manual Page 2®
American DJ - www.americandj.com - Flash DMXC™ Instruction Manual Page 3®
Flash DMXC™ Warranty Registration
• Adjustable Interval, Speed, and Flash (Strobe) controls
• Up to 20 Flash Tubes
™ can be linked together and
con nected to the Flash DMXC™
• Light Weight, Compact Case Design.
• Built-In Mounting Plate.
• Low Power Consumption.
Flash DMXC™ Features
Every Flash DMXC™ has been thoroughly tested and has been
shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping.
If the carton appears to be damaged, carefully inspect your unit
for damage and be sure all
accessories necessary to operate the
unit have arrived intact. In the event damage has been found or
parts are missing, please contact our toll free customer support
number for further instructions. Please do not return this unit to
your dealer without first contacting customer support.
Flash DMXC™ Unpacking
The Flash DMXC™ carries a 1 Year (365 Days) limited warranty.
We recommend you fill out the enclosed warranty card to vali
-
date your purchase. All returned service items whether under
warranty or not, must be freight pre-paid and accompany a
return authorization (R.A.)
number. If the unit is under warranty,
you must provide a copy of your proof of purchase invoice.
Please contact American DJ® customer support for a R.A.
number.
American DJ - www.americandj.com - Flash DMXC™ Instruction Manual Page 4®
Flash DMXC™ Precautions
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required volt-
age for your unit.
• Do not attempt to operate this unit if the power supply cord has
been frayed or broken. Please route your power supply cord away
from foot traffic.
• Disconnect from main power before making any type of connection.
• There are no user serviceable parts inside.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit if it becomes damaged in any way.
• Never operate this unit when it’s front cover is removed.
• To reduce the risk of electrical shock or fire, do not expose this unit
rain or moisture
• This unit is intended for indoor use only, use of this product out-
doors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-Cord Protection - Power-supply cords should be routed so
they are not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to cords a plugs,
convenience receptacles, and the point where they exit from the
fixture.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer.
• Heat -The fixture should be situated away from heat sources such
as radiators, heat registers, stoves, or other appliances (including
amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The fixture does not appear to operate normally or exhibits a
marked change in performance.
American DJ - www.americandj.com - Flash DMXC™ Instruction Manual Page 5®
Flash DMXC™ Operation
Power Supply: Before plugging your unit in, be sure the
source voltage in your area matches the required voltage for
your American DJ® Flash DMXC™. The American DJ® Flash
DMXC
™
is only available in 120v. Because line voltage may
vary from venue to venue, be sure to plug your fixture into a
wall outlet with a matching power supply before attempting to
operate.
Operating Modes and Set Up:
Flash DMXC™ Control: This will allow a universal DMX-
512 controller such as the Elation
® DMX Operator™ or Show
Designer™ to control the Flash Tubes. To control the Flash
Tubes in DMX mode, follow the set-up procedures included
with your DMX controller.
1. The Flash Tubes™ connect to the Flash DMXC™ by the
Flash-TBC that is attached to the end of each Flash Tube™.
2. Connect your first Flash Tube™ in your chain to the Flash-
TBC Input connection on the Flash DMXC™.
3. Continue to daisy chain the Flash Tubes™ in your chain.
The last Flash Tube must have a Terminator at the end to
function properly.
Note: You should ONLY link up to 20 Flash Tubes™ to one
Flash DMXC. If more Flash Tubes are being used you can
continue to link them by linking another Flash DMXC to
the original Flash DMXC using the XLR connection, but
you should use more then one power source. For DMX
Addressing of more then one F
lash DMXC, see page 7.
4. Connect your DMX controller to the Flash DMXC™ XLR Input
Please carefully read and understand the instructions in this
manual thoroughly before attempting to operate this unit. These
instructions contain important safety information regarding the
use and maintenance of this unit. Please keep this manual with
the unit, for future reference.
Flash DMXC™ General Instructions
American DJ - www.americandj.com - Flash DMXC™ Instruction Manual Page 6®
Flash DMXC™ Operation cont.
connection.
5. Set your desired DMX address using the dipswitches on the
side of the Flash DMXC™.
6. After you set up your complete system, plug in the power
cord of the Flash DMXC™
.
7. The Flash Tubes with the Flash DMXC uses four DMX chan-
nels. See page 7 for detailed description of the DMX traits.
Fixture Cleaning:
Due to fog residue, smoke, and dust cleaning the fixture should
be carried out periodically to optimize light output.
1. Use normal glass cleaner and a soft cloth to wipe down the
outside casing every 20 days.
2. Always be sure to dry all parts completely before plugging
the unit back in.
3. Frequent cleaning will ensure fixture reliability.
Cleaning frequency depends on the environment in which the
fixture operates (I.e. smoke, fog residue, dust, dew). In heavy
use we recommend cleaning on a monthly basis. Periodic
cleaning will ensure longevity, and crisp beam output.
Flash DMXC™ Cleaning
