Seite 1/4
User Instructions
American DJ ®
4295 Charter Street
Los Angeles, CA. 90058
www.americandj.com
7/03
Gobo Flex™ Introduction
Unpacking: Thank you for purchasing the Gobo Flex™ by American
DJ . Every Gobo Flex™ has been thoroughly tested and has been ®
shipped in perfect operating condition. Carefully check the shipping
carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your unit for damage
and be sure all accessories necessary to operate the unit have arrived
intact. In the event damage has been found or parts are missing, please
contact our toll free customer support number for further instructions.
Please do not return this unit to your dealer without first contacting
customer support at the number listed below.
Introduction: The Gobo Flex™ is a colored moonflower effect fix-
ture. The unit comes with a dichoric mirror dish and a gobo/color
wheel that creates several colored beams in a moonflower pattern that
is projected onto a wall or other flat surface. The unit has 3-way mode
switch that allows the unit to be operated in three different modes (see
page 5 for operating modes). To optimize beam intensity use this fix-
ture with a fog machine or other type of special effect smoke.
Customer Support: American DJ provides a toll free customer ®
support line, to provide set up help and to answer any question should
you encounter problems during your set up or initial operation. You
may also visit us on the web at www.americandj.com for any com-
ments or suggestions. For service related issue please contact Ameri-
can DJ . Service Hours are Monday through Friday 9:00 a.m. to 5:00 ®
p.m. Pacific Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2610
E-mail: support@americandj.com
Warning! To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures
warranty. In the unlikely event your unit may require service please
contact your nearest American DJ dealer.
PLEASE do not discard the shipping carton in the trash. Please
recycle whenever possible.
© ®American DJ - www.americandj.com - Gobo Flex™ Instruction Manual Page 2
© ®American DJ - www.americandj.com - Gobo Flex™ Instruction Manual Page 4© ®American DJ - www.americandj.com - Gobo Flex™ Instruction Manual Page 3
Gobo Flex™ Precautions
Safety Issues: This unit may pop the breaker if the maximum allotted
load of 5 amps is reached. If the breaker needs to be reset please refer
to the breaker reset instructions on page 5.
• To reduce the risk of electrical shock or re, do not expose this
unit rain or moisture
• Do not spill water or other liquids into or on to your unit
• Do not attempt to operate this unit if the power cord has been
frayed or broken
• Do not attempt to remove or break off the ground prong from the
electrical cord. This prong is used to reduce the risk of electrical
shock and re in case of an internal short
• This unit is intended for internal use only, use of this product out-
doors voids all warranties written or implied.
• One Independent Moving Mirror
• Easy Lamp Replacement
• Compact High-Tech Case Design
• Built-In Hanging Yoke
• Internal Microphone
• Gobo/Color Wheel (11 Gobos and 9 Colors with 2 Split Colors)
• 3-Way Effects Switch - 3 Operating Modes
• Sound Active
• ZB-ELC 24v/250w Lamp
Gobo Flex™ Features
Gobo Flex™ Warranty Registration
The Gobo Flex™ carries a one year (365 days) limited warranty.
Please fill out the enclosed warranty card to validate your purchase.
All returned service items whether under warranty or not, must be
freight pre-paid and accompany a return authorization (R.A.) num-
ber. The R.A. number must be clearly written on the outside of the
return package. A brief description of the problem as well as the R.A.
number must also be written down on a piece of paper included in
the shipping carton. If the unit is under warranty, you must provide a
copy of your proof of purchase invoice. You may obtain a R.A. num-
ber by contacting our customer support team on our toll free custom-
er support number. All packages returned to the service department
not displaying a R.A. number on the outside of the package will be
returned to the shipper.
Gobo Flex™ Operation
Power Supply: Before plugging your unit in, be sure the source
voltage in your area matches the required voltage for your American
DJ Gobo Flex™ before attempting operation. ®
General Operation: Just plug this light in, and watch it go. This fix-
ture is designed to operate as a stand alone unit. It has been tested
and the lamp has been installed at the factory there is no assembly
necessary. The Gobo Flex™ is ready to be plugged in, out of the box.
There is no power switch, after plugging the unit in the unit will imme-
diately begin to run to sound. Please note that tapping on the unit,
or high pitched sounds may not trigger the unit, the unit is designed
to react to low frequencies (bass). Also note that the music sensitiv-
ity is preset at the factory and may not be changed or adjusted. The
fashion the unit will operate will depended on the mode setting, see
operating modes below.
Operating Modes: This unit comes with a 3-way multi-operating
switch located on the bottom of the unit. The switch controls three
different sound-active operating modes.
Switch in the "I" position: Mode 1 - In this mode the gobo/color wheel
will rotate continuously. The internal dichroic mirror dish and external
reflecting mirror will react to an audio source via the units internal
microphone.
Switch in the “O” position: Mode 2 - In this mode the gobo/color
wheel will remain static, regardless of an audio source. The inter-
nal dichroic mirror dish and external reflecting mirror will react to an
audio source via the units internal microphone.
Switch in the “II” position: Mode 3 - In this mode the internal dichroic
mirror dish, gobo/color wheel, and the external reflecting mirror will
only react to an audio source via the units internal microphone.
Please carefully read and understand the instructions in this manual
thoroughly before attempting to operate this unit. These instructions
contain important safety information regarding the use and mainte-
nance of this unit. Please keep this manual with the unit, for future
reference.
Gobo Flex™ General Instructions
Gobo Flex™ Fuse & Lamp Replacement
Caution: Always replace with the exact same type lamp, unless oth-
erwise specified by an authorized American DJ technician. Replace ®
with anything other than the specified part can damage your unit and
will void your manufactures warranty.
Warning: If after you have replaced the lamp and you continue to
blow the breaker or the lamp, STOP using the unit. Contact customer
support for further instructions, you may have to return the unit for
servicing. Continuing to use the unit may cause serious damage.
Lamp Replacement: Caution! Never open the unit when in use.
Always disconnect the main power and allow the fixture ample time
to cool before attempting to replace the lamp. Lamp replacement has
been made simple by incorporating a remove tray that is retained by
a single thumb screws. Again, please remember to always replace
with the exact same type lamp.
1. Be sure to follow the proper procedures when handling halogen
lamps. Never touch the new lamp with your bare fingers.
2. Unscrew the single thumb screw located on the top of the unit.
3. Once the thumb screw has been removed, remove the lamp
assembly cover plate to expose the lamps.
4. Remove and replace the lamp with an exact match.
5. Reassemble in reverse order.
© ®American DJ - www.americandj.com - Gobo Flex™ Instruction Manual Page 6© ®American DJ - www.americandj.com - Gobo Flex™ Instruction Manual Page 5

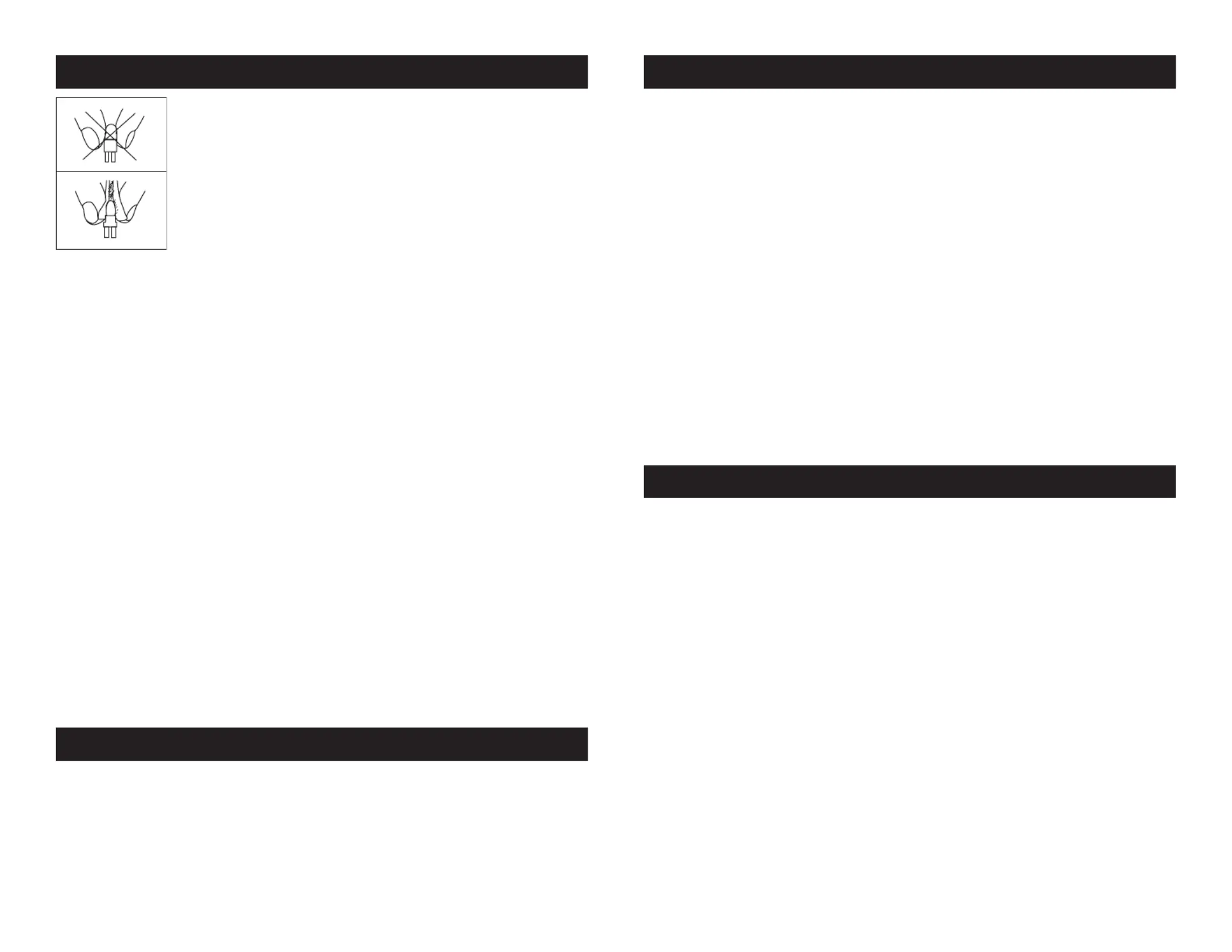

Halogen Lamp Warning! This fixture is fitted with
halogen lamps which are highly susceptible to dam-
age if improperly handled. Never touch the lamps
with your bare fingers as the oil from your hands will
shorten lamp life. Also, never move the fixture until
the lamps have had ample time to cool. Remember,
lamps are not covered under warranty conditions.
Fixture Cleaning:
Due to fog residue, smoke, and dust cleaning the internal and exter-
nal lens and dichroic mirror dish should be carried out periodically to
optimize light output.
1. Use normal glass cleaner and a soft cloth to wipe down the out-
side casing.
2. Use a soft brush to clean out the cooling vents
3. Clean the external optics with glass cleaner and a soft cloth every
20 days.
4. Clean the internal optics with glass cleaner and a soft cloth every
30-60 days.
5. Always be sure to dry all parts completely before plugging the unit
back in.
Cleaning frequency depends on the environment in which the fixture
operates (I.e. smoke, fog residue, dust, dew). In heavy use we recom-
mend cleaning on a monthly basis. Periodic cleaning will ensure lon-
gevity, and crisp beam output.
Gobo Flex™ Cleaning
Trouble Shooting:
Listed below are a few common problems and solutions you should
try before contacting customer support. For all other issues please
contact customer support.
Mirror head moves but there is no light output from the unit;
1. Be sure you have connected your unit into a matching wall outlet.
2. Remove the lamp cover and be sure the lamp is seated in its
socket properly. Occasionally lamps become loose during ship-
ping be sure the lamp is pushed into its socket all the way.
3. Be sure the lamp is good.
Head does not rotate and lamps do not turn on;
1. Be sure you have connected your unit into a matching wall outlet.
2. Be sure the external breaker has not popped. The breaker is
located at the rear of the unit.
3. Be sure the unit power cord is properly seated in the power outlet
and the outlet has power.
Gobo Flex™ Trouble Shooting
This unit uses a protective breaker to protect the unit in the event of
power surges or fluctuations. To reset the breaker, push the breaker
button in until you hear it “pop” back into place. If the breaker con-
tinues to pop, stop using the unit and contact customer support the
unit may require service.
Gobo Flex™ Reset Breaker
