Seite 1/21

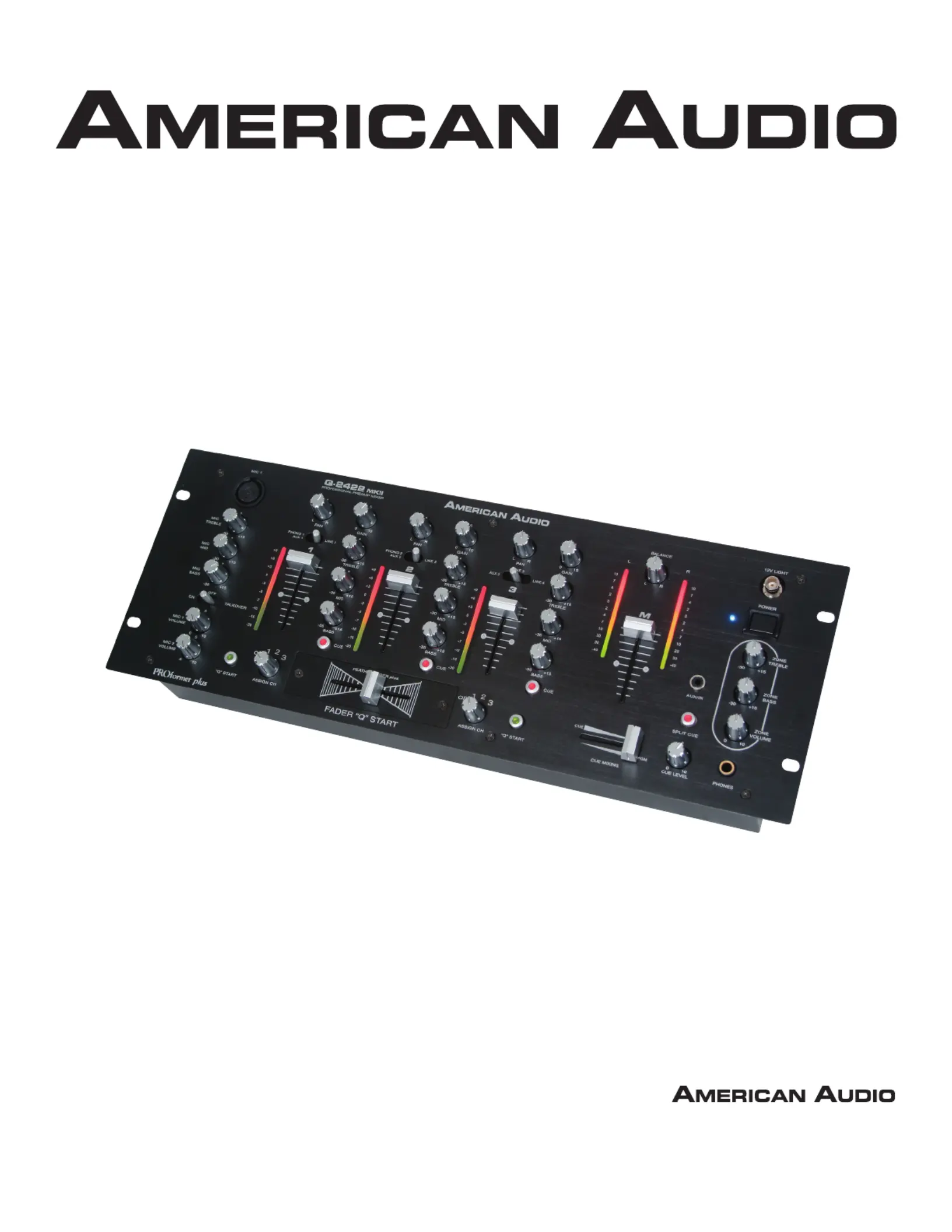

Q-2422 MKII
Professional Preamp Mixer
4295 Charter Street
Los Angeles Ca. 90058
www.AmericanAudio.us
User Guide
and Reference Manual
Rev. 04/05
© ®American Audio - www.AmericanAudio.com - Q-2422 MKII User Instructions page 2
MAIN FEATURES....................................................................................................................................2
ELECTRICAL PRECAUTIONS................................................................................................................4
SAFETY PRECAUTIONS........................................................................................................................5
INTRODUCTION....................................................................................................................................6
SET-UP PRECAUTIONS.........................................................................................................................6
UNPACKING.........................................................................................................................................7
QUICK START.........................................................................................................................................7
FUNCTIONS AND CONTROLS
FRONT PANEL............................................................................................................................8
REAR PANEL............................................................................................................................12
CLEANING......................................................................................................................17
CROSSFADER REPLACEMENT.........
..................................................................................................17
TROUBLESHOOTING......................................................................................................................18
WARRANTY.........................................................................................................................................19
SPECIFICATIONS.....................................................................................................................20
CONTENTS Q-2422 MKII™
• Equipped with high quality Crossfader
(Replaceable)
• Optical Detecting Fader for Q-Start Control
• High Power Headphone Output
• Selectable Voltage 115v~230v
• 3 Channel Mixer
• 2 Phono, 4 Line, 3 Auxiliary Inputs
• 2 Microphone Input - (1) XLR/ 1/4" combo
plug, (1) 1/4" Input Jacks
• Volume Control for each Mic
• Master Balance Control
• 12v BNC Light Connector for Gooseneck
Light
• Fader "Q" Start
• On/Off Button Controls Fader "Q" Start
Function (for use with the American Audio
CD Players with Fader "Q" Start)
• Rotary Kills for Treble, Bass & Mids
on all three channels
• Individual Channel Gain Control
• Convenient "L" Shape Design
• Extremely clean signal to noise ratio
• Talkover switch- Reduces channel output
gain by 14dB +/- 2 dB
• Independent Zone Level Output
• Stereo LED Level Indicator
• Split Cue Monitoring
• Cue Mixing
• Balanced XLR Master Output
• 4 Signal Output Options - Master (RCA and
Balanced XLR), Zone (RCA)
and REC (RCA)
Specifications subject to change without notice.
FEATURES Q-2422 MKII™
© ®American Audio - www.AmericanAudio.com - Q-2422 MKII User Instructions page 3
NOTE: This product satisfies FCC
regulations when shielded cables
and connectors are used to con
-
nect the unit to other equipment.
To prevent electromagnetic inter
-
ference with electrical appliances
such as radios and televisions, use
shielded cables and connectors
for connections.
WARNING: TO PREVENT FIRE OR ELECTRIC
SHOCK HAZARD, DO NOT EXPOSE THIS
UNIT TO RAIN, LIQUIDS, OR MOISTURE
CAUTION: TO PREVENT ELECTRIC SHOCK
DO NOT USE THIS (POLARIZED) PLUG WITH
AN EXTENSION CORD, RECEPTACLE, OR
OTHER TYPE OF ELECTRICAL OUTLET
UNLESS THE WIDE BLADES CAN BE
CAREFULLY INSERTED INTO A MATCHING
WIDE SLOT.
ATTENTION: POUR PREVENIR LES CHOCS
ELECTRIQUES NE PAS UTILISER CETTE
FICHE POLARISEE AVEC UN PROLON-
GATEUR, UNE PRISE DE COURANT OU
UNE AUTRE SORTIE DE COURANT, SAUF
SI LES LAMES PEUVENT ETRE INSEREES A
FOND SANS EN LAISSER AUCUNE PARTIE A
DECOUVERT.
ELECTRICAL SAFETY PRECAUTIONS Q-2422 MKII™
VOLTAGE SELECTOR SWITCH
LINE VOLTAGE SELECTION
• The desired voltage may be set with the
VOLTAGE SELECTOR switch on the rear
panel (using a flat head screw driver).
• Do not force the VOLTAGE SELECTOR
switch as this may cause damage
• If the VOLTAGE SELECTOR switch does
not move smoothly, please contact a quali-
fied service technician.
The serial and model number for this unit is
located on the rear panel. Please write down
the numbers here and retain for future refer
-
ence.
Model No._____________________________
Serial No._____________________________
Purchase Notes:
Date of Purchase_______________________
Dealer Name__________________________
Dealer Address_________________________
_____________________________________
_____________________________________
Dealer Phone__________________________
SE R IA L N O:
MODEL NO : Q-2422
POWER SOURCE
:
115/230V~ 50/60Hz 13W
MKII
MADE IN CHINA
MIN MAX
TRIM OUTPUT
AB
