User Instructions
© ®American DJ - www.americandj.com - Whirl 250™ Instruction Manual Page 2
Unpacking: Thank you for purchasing the Whirl 250™ by American
DJ . Every Whirl 250™ has been thoroughly tested and has been ®
shipped in perfect operating condition. Carefully check the shipping
carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your unit for any
damage and be sure all equipment necessary to operate the unit has
arrived intact. In the event damage has been found or parts are miss-
ing, please contact our toll free customer support number for further
instructions. Please do not return the unit to your dealer without rst
contacting customer support.
Introduction: Thank you for purchasing the American DJ Whirl 250.®
™
The Whirl 250™ is a unique rotating-gobo xture. The unit comes with
one interchangeable gobo that rotates continuously. When the gobo
is removed the unit will operate as “moon ower.” The unit has 3-way
mode switch that allows the unit to be operated in three different modes
(see page 7 for operating modes). To optimize beam intensity use this
xture with a fog machine or other type of special effect smoke.
Customer Support: American DJ provides a toll free customer sup-®
port line, to provide set up help and to answer any question should
you encounter problems during your set up or initial operation. You
may also visit us on the web at www.americandj.com for any com-
ments or suggestions. For service related issue please contact Ameri-
can DJ . Service Hours are Monday through Friday 9:00 a.m. to 5:00 ®
p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2610
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
American DJ.
PLEASE recycle the shipping carton whenever possible.
Whirl 250™ General Introduction
American DJ ®
4295 Charter Street
Los Angeles, CA. 90058
www.americandj.com
12/03
© ®American DJ - www.americandj.com - Whirl 250™ Instruction Manual Page 4© ®American DJ - www.americandj.com - Whirl 250™ Instruction Manual Page 3
Please carefully read and understand the instructions in this manual
thoroughly before attempting to operate this unit. These instructions
contain important safety information regarding the use and mainte-
nance of this unit. Please keep this manual with the unit, for future ref-
erence.
Whirl 250™ General Instructions Whirl 250™ Precautions
Safety Issues: This unit may blow the breaker if the maximum allot-
ted load of 5 amps is reached. If the breaker needs replacement, always
replace the breaker with same exact type that was remove, unless oth-
erwise instructed by an authorized American DJ service technician. ®
Use of a different type breaker from that which is recommended may
cause fire or electric shock and will void the manufactures warranty.
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit
• Do not attempt to operate this unit if the power cord has been frayed
or broken
• Do not attempt to remove or break off the ground prong from
the electrical cord. This prong is used to reduce the risk of electrical
shock and re in case of an internal short
• Disconnect from main power before making any type of connection
• Do not remove the cover under any conditions. There are no user
serviceable parts inside
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall
• Do not attempt to operate this unit, if it becomes damaged
• This unit is intended for indoor use only, use of this product outdoors
voids all warranties
• During long periods of non-use, disconnect the unitʼs main power
• Always mount this unit in safe and stable matter
• Power cords should be routed so they are not likely to be walked on,
pinched by items placed upon or against them.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 9 for cleaning details
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances
(including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the unit.
C. The unit has been exposed to rain or water.
D. The unit does not appear to operate normally or exhibits a
marked change in performance.
• Replaceable Rotating Gobo
• Easy Lamp Replacement
• ZB-ELC 24V/250W
• Compact High-Tech Case Design
• Built-In Hanging Yoke
• Internal Microphone
• Fan Cooled
• Multi-Colored Beams
• 3-Way Effects Switch - 3 Operating Modes
• Sound Active
Whirl 250™ Features
Whirl 250™ Warranty Registration
The Whirl 250™ carries a one year (365 days) limited warranty.
Please fill out the enclosed warranty card to validate your purchase.
All returned service items whether under warranty or not, must be
freight pre-paid and accompany a return authorization (R.A.) number.
If the unit is under warranty you must provide a copy of your proof of
purchase invoice. Please contact American DJ customer support for ®
a R.A. number.
Halogen Lamp Warning! This fixture is fitted with
halogen lamps which are highly susceptible to
damage if improperly handled. Never touch the
lamps with your bare fingers as the oil from your
hands will shorten lamp life. Also, never move the
fixture until the lamps have had ample time to cool.
Remember, lamps are not covered under warranty
conditions.
Whirl 250™ Halogen Lamp Warning
© ®American DJ - www.americandj.com - Whirl 250™ Instruction Manual Page 5 American DJ - www.americandj.com - Whirl 250™ Instruction Manual Page 6© ®
Whirl 250™ Control & Functions Whirl 250™ Control & Functions

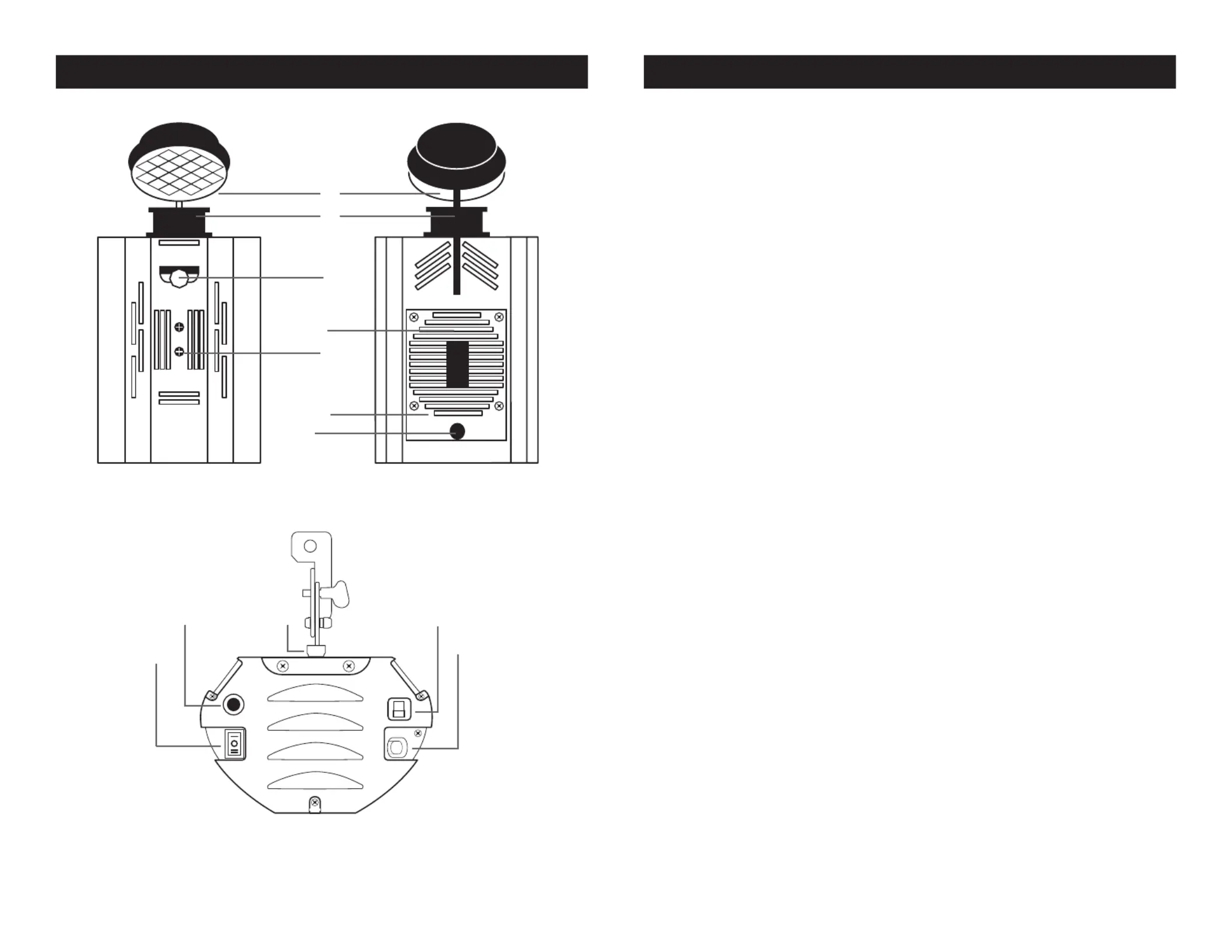

1. Mirror - This is a highly reective surface mirror specically
designed to optimize and enhance beam output. Never use glass
cleaner that contains ammonia to clean the surface of the mirror (such
as Windex).
2. Lens - This is a fully focusing high quality lens. Focus the lens by
manually turning the lens in a clockwise or counter-clockwise direc-
tion.
3. Glass Filter - This unit comes with a built-in glass lter. This lter
may be removed at any time for a completely different effect. To remove
the lter unscrew the retaining thumb screw and gently pull the lter
out.
4. Fan - Cooling fan. For optimal performance keep this fan grill clean
at all times.
5. Lamp Assembly Retaining Screws - These two screw hold the
lamp assembly in place.
6. Lamp Assembly Cover - This plate accesses the lamp socket
assembly. This cover is held securely in place by a single thumb screw.
The fan is also attached to this cover.
7. Lamp Cover Retaining Screw - This thumb screw holds the lamp
socket assembly cover into place
8. Function Switch - This is a 3-way function switch. This unit can
be operated in three different mode all of which are controlled by this
switch.
9. Microphone - This microphone receives external low frequencies
to trigger the unit.
10. Breaker - A 5A built-in safety breaker to reduce the risk of electrical
shock or re and protect the circuitry. In the case of a internal short or
power surge.
11. Power Cord - Connect only to a matching power outlet. Never
use this xture is the ground prong has been removed or broken off.
1
6
5
7
3
2
4
11
10
79
8
