RECOMMENDED TOOLS AND MATERIALS

Putty Knife Regular Screwdriver Adjustable Wrench Sealant Tape Measure

Hacksaw Wax Ring/Gasket Flexible Supply Tube Closet Bolts Carpenters Level

a. Close toilet supply valve and flush tank

completely. Towel or sponge remaining

water from tank and bowl.

b. Disconnect and remove supply line.

NOTE: If replacing valve, first shut off main

water supply!

c. Remove old mounting hardware, remove

toilet and plug floor waste opening to

prevent escaping sewer gases.

d. Remove closet bolts from flange and clean

away old wax, putty, etc. from base area.

NOTE:Mounting surface must be clean

and level before new toilet is installed!

SAVE FOR FUTURE USE

7301860-100

CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!

Product names listed herein are trademarks of AS America, Inc.

© AS America, Inc. 2011

NOTE: Pictures may not exactly define contour of china and components.

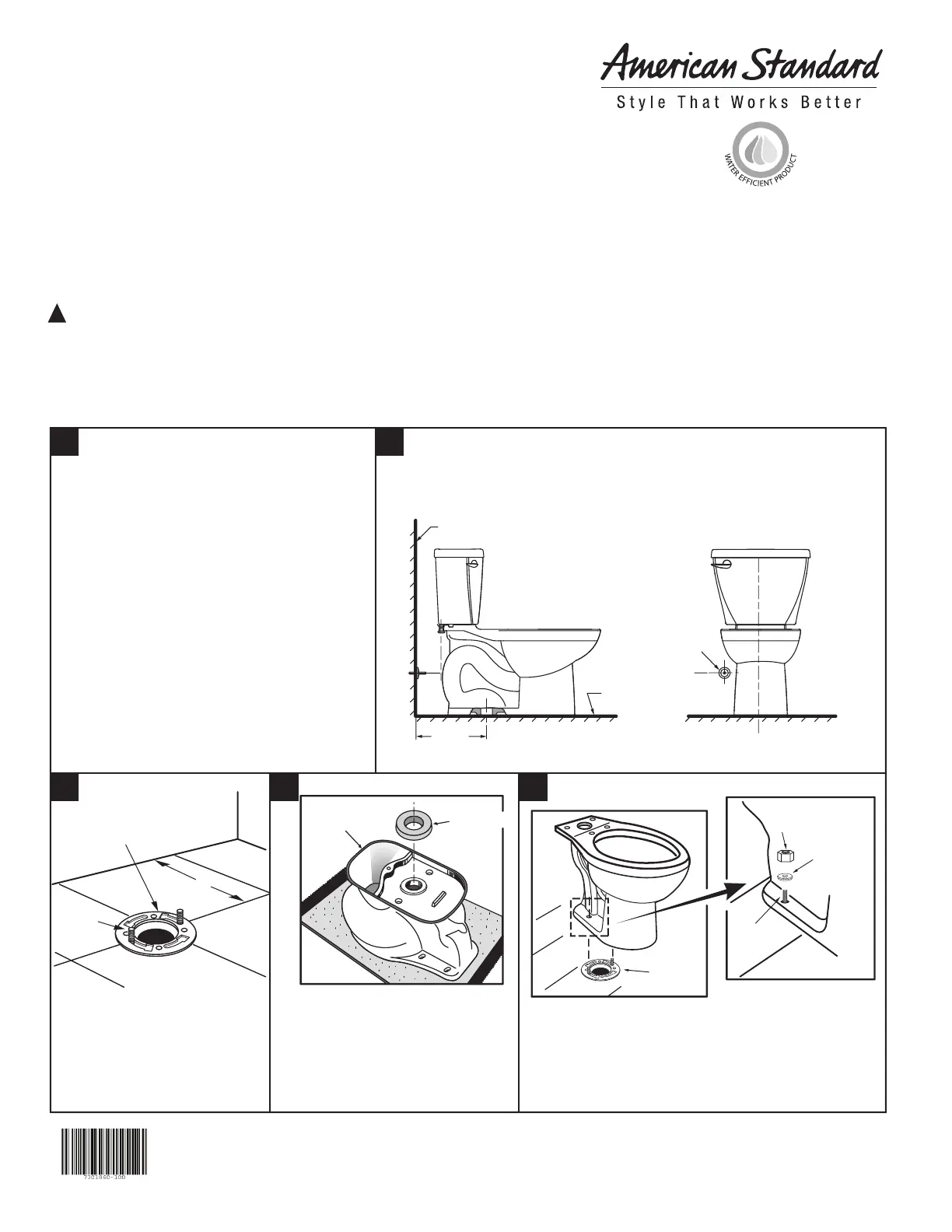

BABY DEVORO - 1.28 GPF TWO-PIECE TOILET

Model 2315

INSTALLATION INSTRUCTIONS

CARE AND MAINTENANCE

Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product

is installed properly, please read these instructions carefully before you begin. (Certain installations may require

professional help.) Also be sure your installation conforms to local codes.

2

CLOSET

FLANGE

CLOSET

BOLTS

A

FINISHED WALL

FINISHED

FLOOR

SUPPLY

AS

REQ'D.

10"

(254mm)

WAX RING

SEALANT

5

43

1

INSTALL WAX SEAL

Invert toilet on floor (cushion to prevent

damage), and install wax ring evenly

around waste flange (horn), with tapered

end of ring facing toilet. Apply a thin bead

of sealant around toilet base.

POSITION TOILET ON FLANGE

a. Unplug floor waste opening and install toilet on closet flange

so bolts project through mounting holes.

b. Loosely install retainer washers and nuts. Side of washers

marked "THIS SIDE UP" must face up!

CLOSET

BOLT

NUT

TAPERED

WASHER

FLANGE

ROUGHING-IN DIMENSIONS:

NOTE: Distance from wall to closet flange centerline must be as listed below:

INSTALL CLOSET BOLTS

Install closet bolts in flange

channel, turn 90

°

, and slide

into place 6" (152mm) apart

and parallel to wall.

!

REMOVE OLD TOILET
