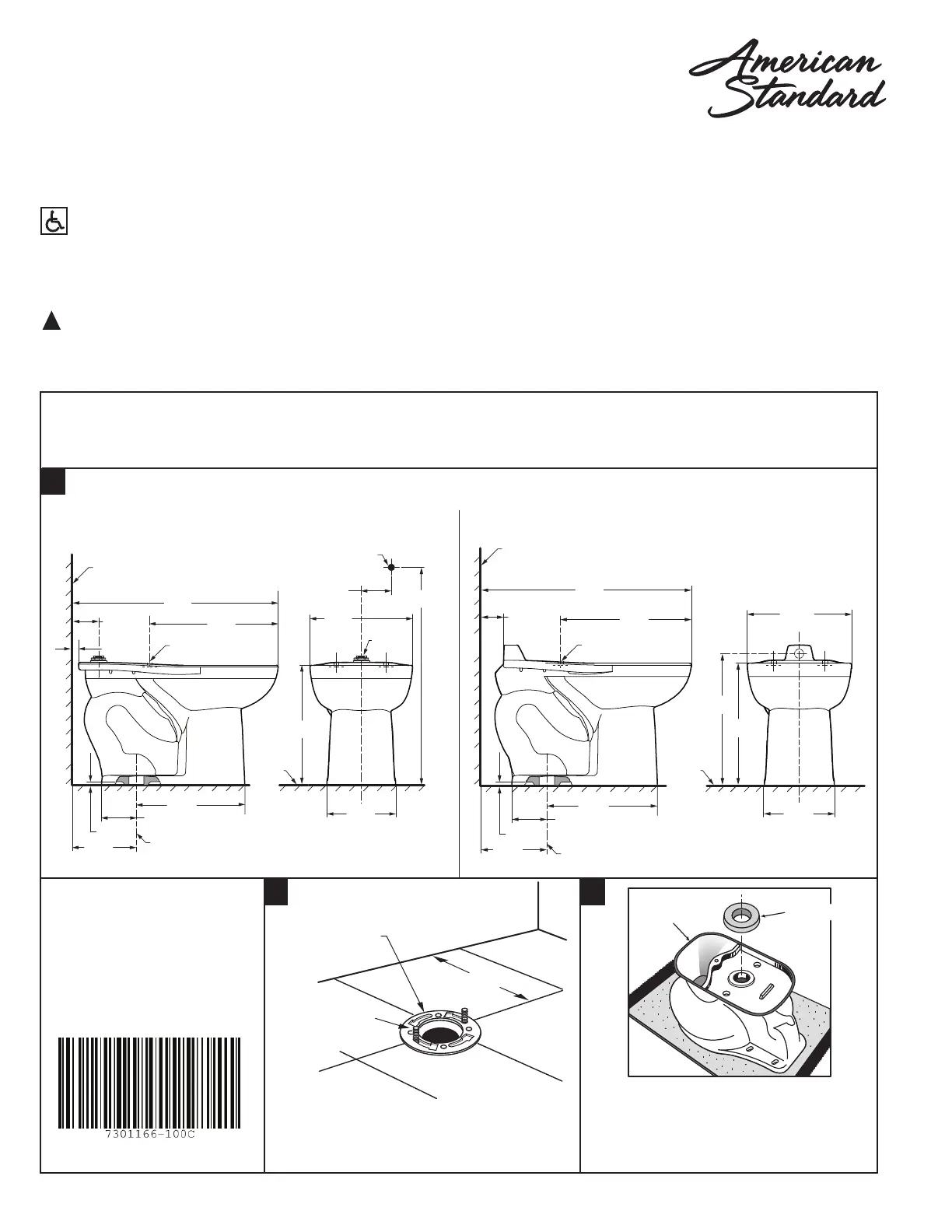

SAVE FOR FUTURE USE

1

7301166-100 Rev. B

Product names listed herein are trademarks of AS America, Inc.

© AS Americas Inc. 2014

2

Putty Knife

Adjustable Wrench

Sealant

Tape Measure

Regular Screwdriver

Phillips Screwdriver

Carpenters Level

Flush Valve

RECOMMENDED TOOLS AND MATERIALS

Pictures may not exactly define contour of china

Models: 3043, 3248, 3249, 3461, 3462, 3463, 3464, 3465, 3466

Models 3043, 3248, 3461, 3462, 3465, 3466

Models 3249, 3463, 3464

MADERA 16-1/2" HEIGHT FLUSH VALVE

FLOOR MOUNTED TOILETS

CAUTION: PRODUCT IS FRAGILE. TWO PEOPLE ARE RECOMMENDED FOR

HANDLING TO AVOID BREAKAGE AND POSSIBLE INJURY!

NOTE: For proper operation product requires a minimum of 30 psi working line pressure

Meets the American Disabilities Act Guidelines and ANSI A117.1

Requirements for the Physically Challenged

Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this product

is installed properly, please read these instructions carefully before you begin. (Certain installations may require

professional help.) Also be sure your installation conforms to local codes.

!

INSTALL CLOSET BOLTS

Install closet bolts in flange channel, turn 90°, and

slide into place 6" (152 mm) apart and parallel to wall.

CLOSET FLANGE

CLOSET BOLTS

10"

254mm

WAX RING

SEALANT

INSTALL WAX SEAL

Invert toilet on floor (cushion to prevent damage),

and install wax ring evenly around waste flange

(horn), with tapered end of ring facing toilet. Apply

a thin bead of sealant around toilet base.

3

711mm

(28")

1 - 1/2

SPUD

121mm

(4-3/4")

238mm

(9-3/8")

419mm

(16-1/2")

470mm

(18-1/2")

356mm

(14")

338mm

(13-5/16")

150mm

(5-7/8

")

254mm

(10")

13mm

(1/2")

25mm

(1

")

102mm

(4

")

718mm

(28-1/4

")

C/L OF SEAT POST HOLES

140mm (5-1/2) CENTERS

FINISHED WALL

FINISHED

FLOOR

FINISHED

FLOOR

C/L OF OUTLET

1" N.P.T. OR 1" C.W.T.

SUPPLY TO FLUSH VALVE

238mm

(9-3/8

")

419mm

(16-1/2

")

438mm

(17-1/4

")

470mm

(18-1/2

")

356mm

(14

")

338mm

(13-5/16

")

150mm

(5-7/8

")

254mm

(10

")

13mm

(1/2

")

76mm

(3

")

718mm

(28-1/4

")

C/L OF SEAT POST HOLES

140mm (5-1/2) CENTERS

FINISHED WALL

C/L OF OUTLET

INSTALLATION INSTRUCTIONS
