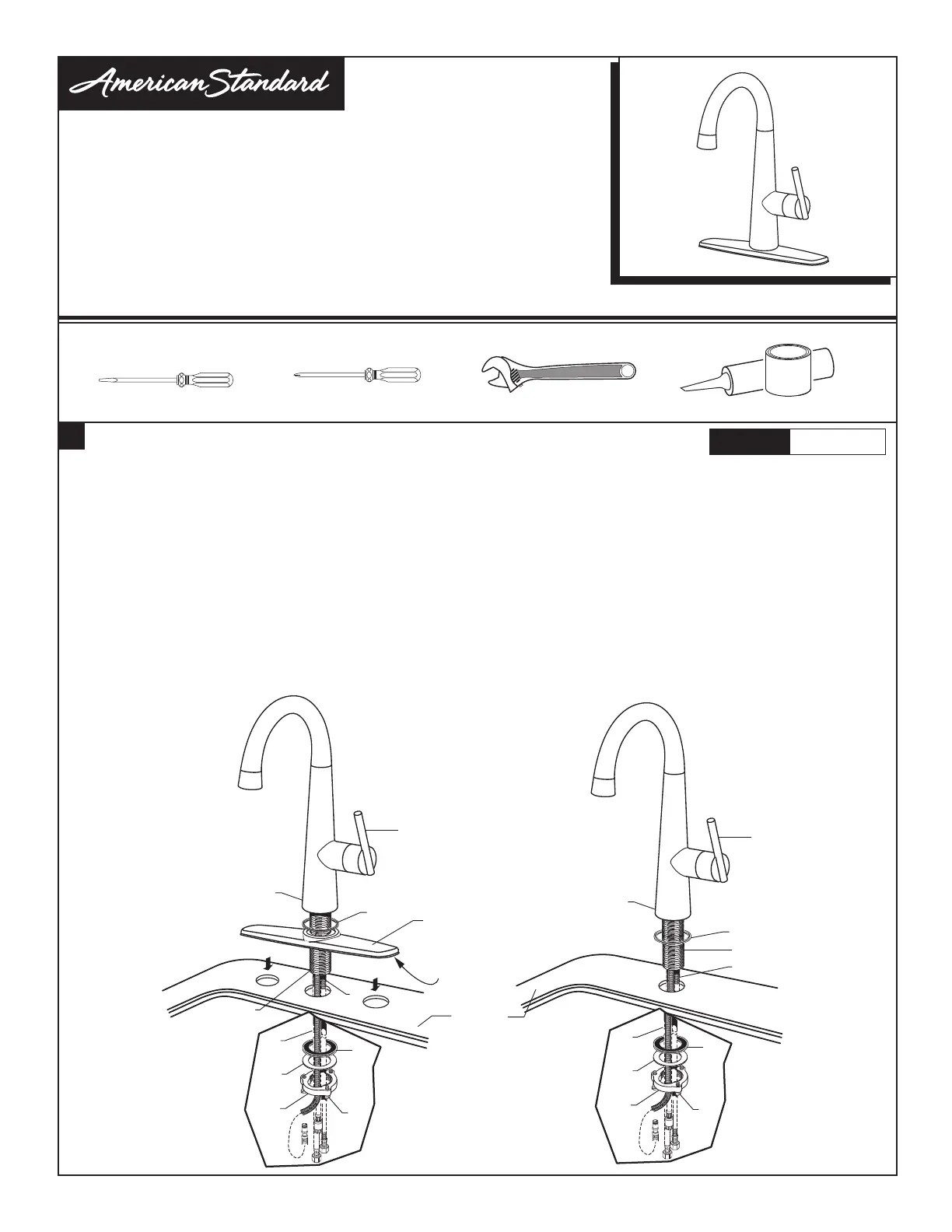

INSTALL FAUCET WITH OR WITHOUT DECK ESCUTCHEON

EDGEWATER

™

Pull-Down Bar Faucet

INSTALLATION

INSTRUCTIONS

4932.410

Plumbers' Putty or CaulkingAdjustable WrenchPhillips ScrewdriverRegular Screwdriver

Certied to comply with ANSI A112.18.1M

CAUTION

Turn off water at

main supply

BA

(OPTIONAL)

SINK OR

MOUNTING

SURFACE

4

5

8

7

6

7

9

3

2

7

9

PUTTY

SPOUT BASE

SPOUT BASE

2

3

4

5

8

6

7

1

• (A) Installation with ESCUTCHEON (1). (Escutcheon is not supplied with base product). Apply a bead of putty to bottom

edge of ESCUTCHEON with PUTTY PLATE (1). Make certain the SEAL (9) is properly seated in recess of faucet body. Insert

SUPPLY HOSES (2), SPRAY HOSE (7) and SHANK (3) through hole of ESCUTCHEON with PUTTY PLATE (1) and mounting

surface. Follow mounting instructions below to secure faucet to mounting surface.

• (B) Installation less ESCUTCHEON (1). Make certain the SEAL (9) is properly seated in recess of spout base. Insert supply

HOSES (2), SPRAY HOSE (7) and SHANK (3) through mounting hole and seat spout base onto sink or mounting surface.

Do not use putty.

• Insert HOSES (2) through RUBBER WASHER (4), BRASS WASHER (5), and threaded LOCKNUT (6).

• Assemble RUBBER WASHER (4), BRASS WASHER (5), and threaded LOCKNUT (6) onto SHANK (3) from underside of sink

or mounting surface. Hand tighten LOCKNUT (6).

• Use a screwdriver to tighten SCREWS (8) on LOCKNUT (6). Work your way around LOCKNUT (6), tightening the screws

slightly each time until all are snug to ensure even pressure.
