SAVE FOR FUTURE USE

770278-100 Rev. 1 05/2020

CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!

NOTE: Pictures may not exactly define contour of china and components.

Studio

®

S

8725/8726 Series Vanity / Vanity Top

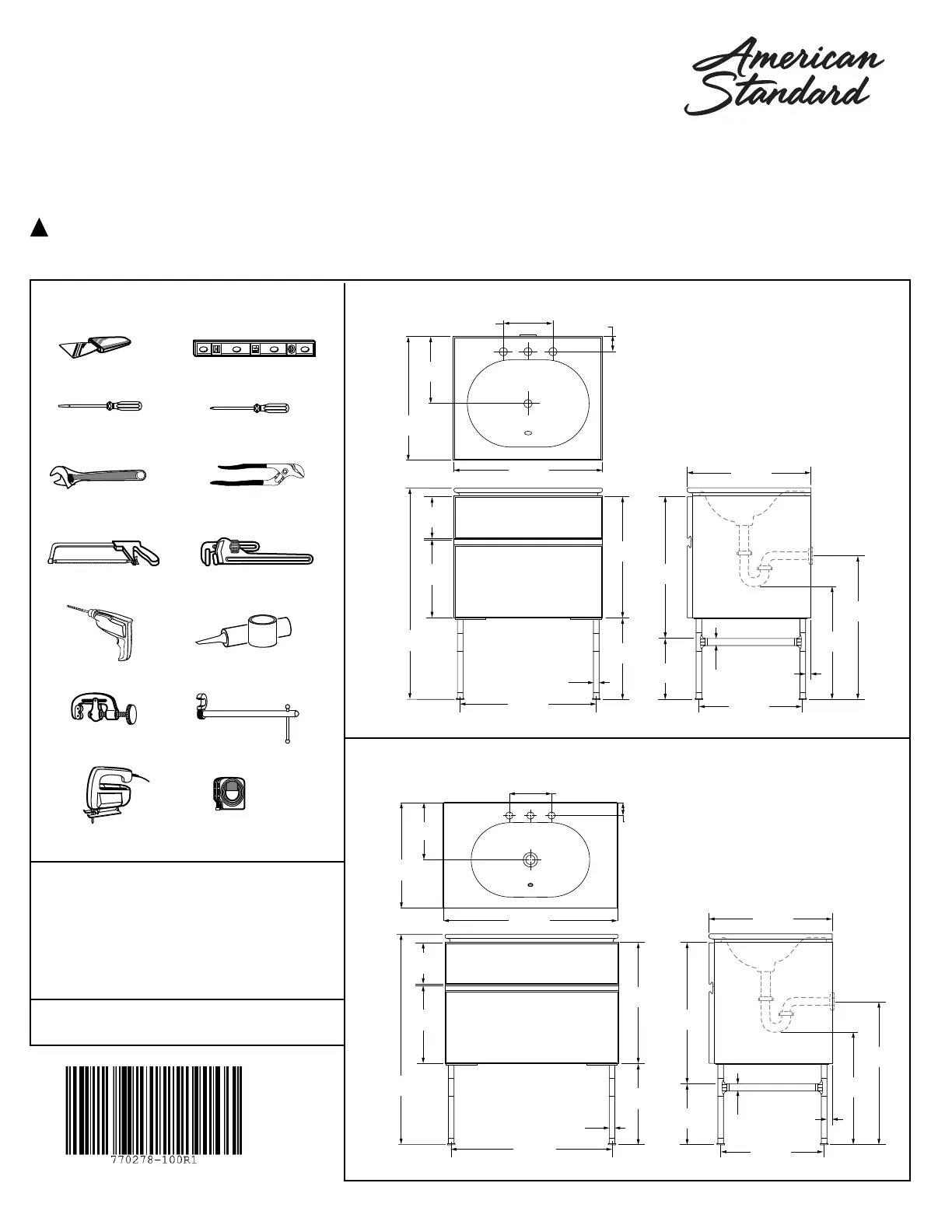

INSTALLATION INSTRUCTIONS

CARE AND MAINTENANCE

Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product is installed properly, please read these

instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.

!

OBSERVE LOCAL PLUMBING AND BUILDING CODES

Recommended Tools

Recommended Materials

Studio

®

S 24" Single Vanity

Studio

®

S 33" Single Vanity

Adjustable Wrench

Putty Knife

Channel Lock Pliers

Regular Screwdriver

Phillips Screwdriver

Saber Saw

Basin Wrench

Tubing Cutter

Tape Measure

Pipe Wrench

Drill

Plumbers' Putty

or Caulking

Hacksaw

Level

24"

(609 mm)

20"

(508 mm)

2-7-16"

(62 mm)

20"

(508 mm)

10-13/16"

(275 mm)

7"

(174 mm)

12-5/8"

(320 mm)

19-11/16"

(500 mm)

13-1/8"

(334 mm)

1-3/16"

(30 mm)

*18-1/4"

(334 mm)

*23-3/16"

(589 mm)

23"

(583 mm)

9-13/16"

(250 mm)

34-1/16"

(866 mm)

22-1/16"

(560 mm)

Ø7/8"

(22 mm)

16-3/4"

(425 mm)

13-16"

(20 mm)

FAUCET MOUNTING HOLES:

SINGLE HOLE OR 8" (203mm)

20"

(508 mm)

7"

(174 mm)

12-5/8"

(320 mm)

19-11/16"

(500 mm)

13-1/8"

(334 mm)

1-3/16"

(30 mm)

*18-1/4"

(334 mm)

*23-3/16"

(589 mm)

23"

(583 mm)

9-13/16"

(250 mm)

34-1/16"

(866 mm)

31"

(788 mm)

Ø7/8"

(22 mm)

16-3/4"

(425 mm)

13-16"

(20 mm)

33"

(838mm)

10-13/16"

(275mm)

20"

(508mm)

FAUCET MOUNTING HOLES:

SINGLE HOLE OR 8" (203mm)

2-7/16"

(62mm)

Product names listed herein are trademarks of AS America, Inc.

© AS America, Inc. 2020

3 #10 x 2" wood screws
