REMOVE OLD TOILET

a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.

b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!

c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.

d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.

NOTE: Mounting surface must be clean and level before new toilet is installed!

SAVE FOR FUTURE USE

3

2

1

CLOSET

FLANGE

CLOSET

BOLTS

7301416-100 Rev. M 4/18

A

FINISHED WALL

FINISHED FLOOR

SUPPLY

AS

REQ'D.

CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!

Product names listed herein are trademarks of AS America Inc.

© AS America Inc. 2018

NOTE: Pictures may not exactly define contour of china and components.

ROUGHING-IN DIMENSIONS:

NOTE: Distance from wall to closet flange centerline must be as listed below:

A = 12" (305mm)

A

WAX RING

SEALANT

5

4

INSTALL WAX SEAL

Invert toilet on floor (cushion to prevent damage),

and install wax ring evenly around waste flange

(horn), with tapered end of ring facing toilet. Apply

a thin bead of sealant around toilet base.

POSITION TOILET ON FLANGE

a. Unplug floor waste opening and install toilet on closet flange so bolts project

through mounting holes.

b. Loosely install retainer washers and nuts. Side of washers marked "THIS

SIDE UP" must face up!

CLOSET

BOLT

NUT

TAPERED

WASHER

FLANGE

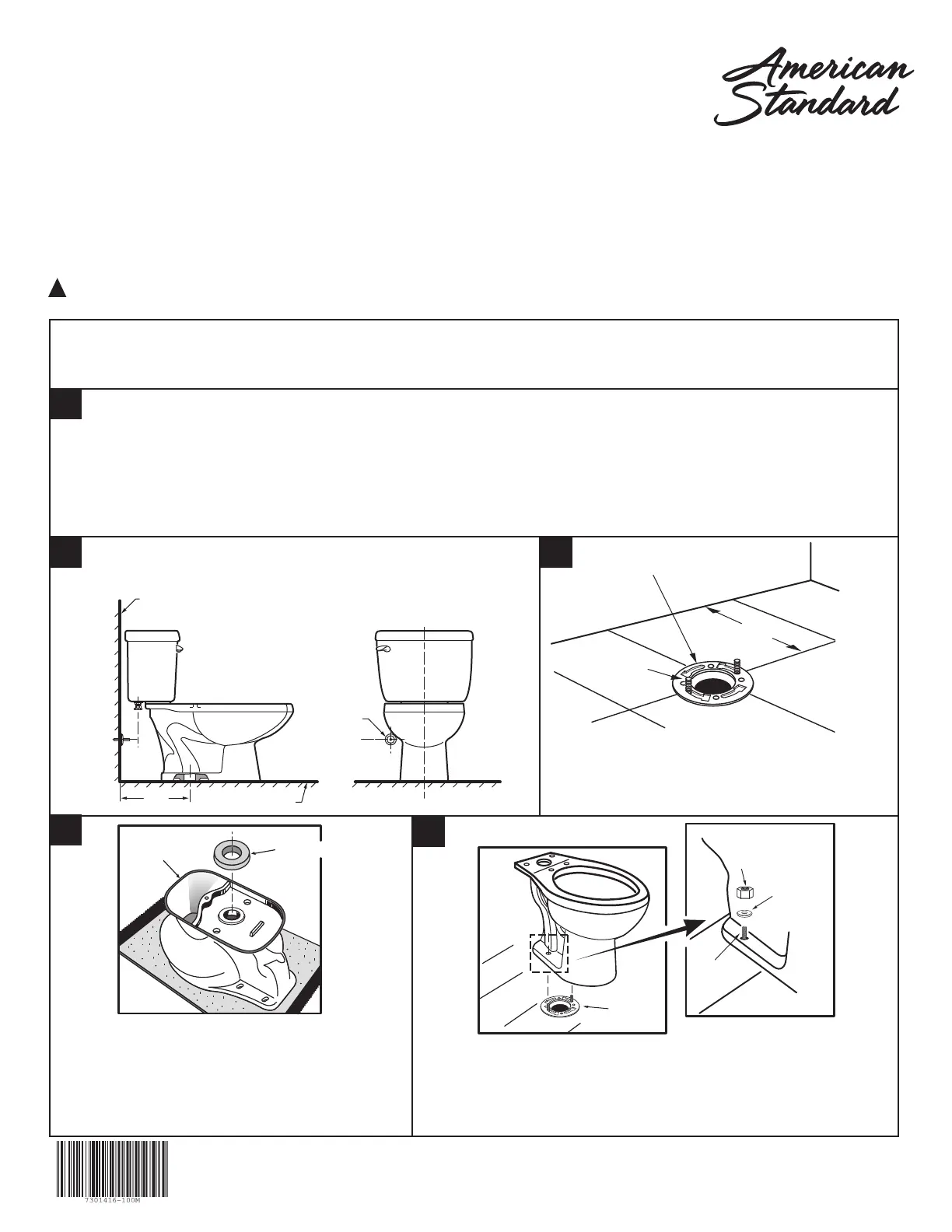

Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure

this product is installed properly, please read these instructions carefully before you begin. (Certain

installations may require professional help.) Also be sure your installation conforms to local codes.

!

INSTALLATION INSTRUCTIONS

Siphonic Ultra-High Efficiency Two-Piece Toilets

H2Optimum

™

Single Flush Models 288AA / 288CA / 288DA

H2Option

®

Dual Flush Models 2886 / 2887 / 2889

INSTALL CLOSET BOLTS

Install closet bolts in flange channel

and slide into place parallel to wall.

RECOMMENDED TOOLS AND MATERIALS

Putty Knife Regular Screwdriver Adjustable Wrench Sealant Tape Measure

Hacksaw Wax Ring/Gasket Flexible Supply Tube Closet Bolts Carpenters Level
