RECOMMENDED TOOLS AND MATERIALS

Putty Knife Regular Screwdriver Adjustable Wrench Sealant Tape Measure

Hacksaw Wax Ring/Gasket Flexible Supply Tube Closet Bolts Carpenters Level

1 REMOVE OLD TOILET

a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.

b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!

c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.

d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.

NOTE: Mounting surface must be clean and level before new toilet is installed!

SAVE FOR FUTURE USE

2

CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!

Product names listed herein are trademarks of AS America, Inc.

© AS America, Inc. 2019

NOTE: Pictures may not exactly define contour of china and components.

Town Square

®

S

1.28 gpf / 4.8 Lpf 2-piece Toilet

Model

3851A

- Elongated, Right Height

®

with Seat

7302427-100 (3/19)

INSTALLATION INSTRUCTIONS

CARE AND MAINTENANCE

Thank you for selecting American Standard - the benchmark of fine quality for over 140 years. To ensure this product is

installed properly, please read these instructions carefully before you begin. (Certain installations may require

professional help.) Also be sure your installation conforms to local codes.

!

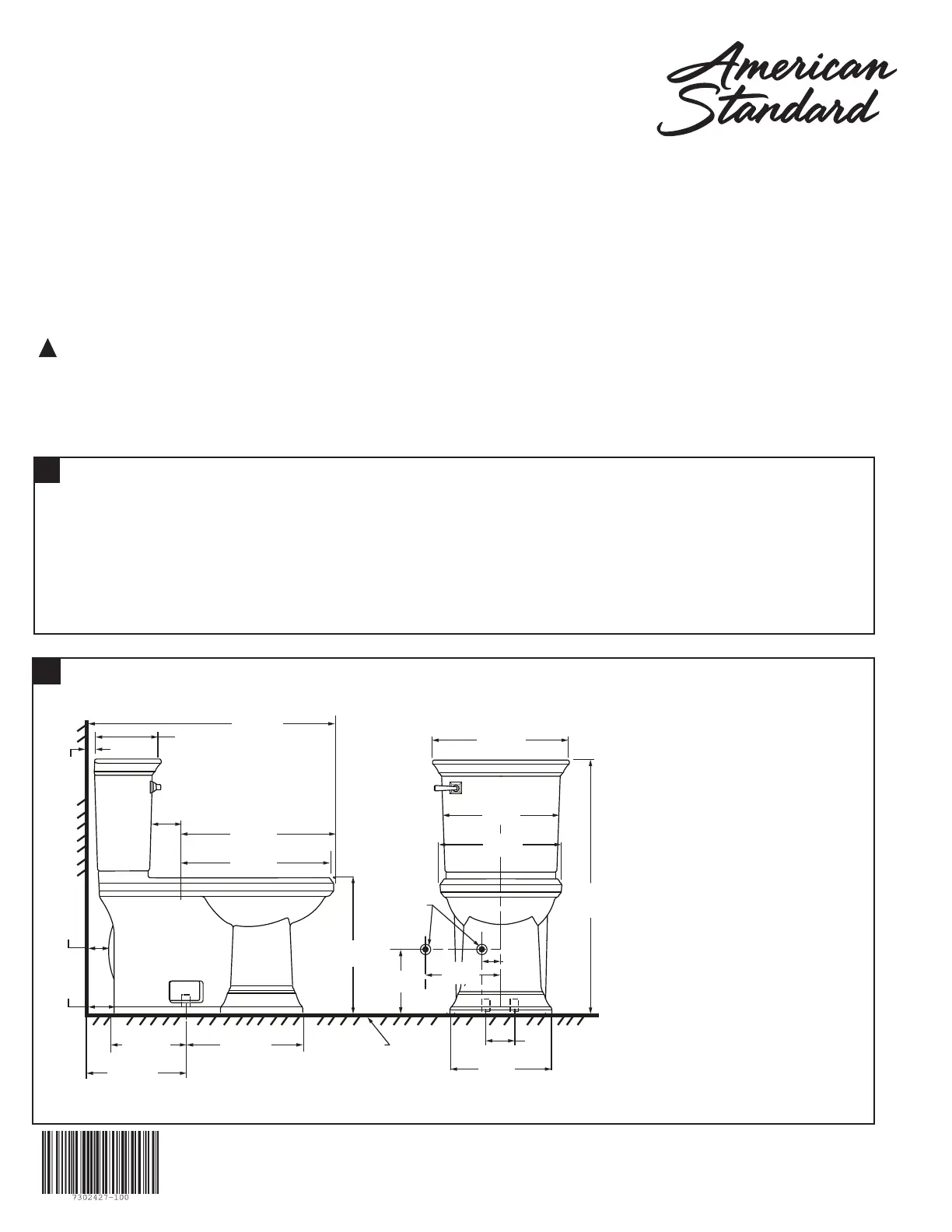

ROUGHING-IN DIMENSIONS:

NOTE: Distance from wall to closet flange centerline must be as listed below:

IMPORTANT: Water supply on

the wall is required at 2-1/4" or

8" from centerline of the toilet

(see rough-in). First suggested

position is hidden behind the

toilet. The geometry of the toilet

gives space for this installation.

The second suggested position

is next to the toilet. Between

these two positions, the space

for the supply between wall and

toilet is limited to 3-1/2". In this

case, check your supply and

hose dimensions.

30-1/4"

(768mm)

8-1/8"

(207mm)

3-3/8"

(87mm)

1"

(26mm)

18-1/2"

(470mm)

18-7/8"

(480mm)

3-1/2"

(88mm)

2-3/4"

(70mm)

8-1/2"

(217mm)

14-5/8"

(373mm)

12-3/4"

(326mm)

16-1/2"

(419mm)

16-5/8"

(722mm)

31-1/8"

(791mm)

12"

(305mm)

FINISHED

FLOOR

SUPPLY

AS

REQUIRED

(position 1 or

position 2)

6"

(152mm)

5-1/2"

(140mm)

14-3/4"

(376mm)

14"

(356mm)

8"

(204mm)

2-1/4"

(57mm)

2-1/4"

(57mm)
