7301450-100 Rev. 2 (3/19)

Product names listed herein are trademarks of AS America, Inc.

© AS America, Inc. 2019

RECOMMENDED TOOLS AND MATERIALS

Putty Knife

Closet Bolts

Regular Screwdriver

Wax Ring/Gasket

Adjustable Wrench

Flexible Supply Tube

Sealant

Hacksaw

Carpenters Level

Tape Measure

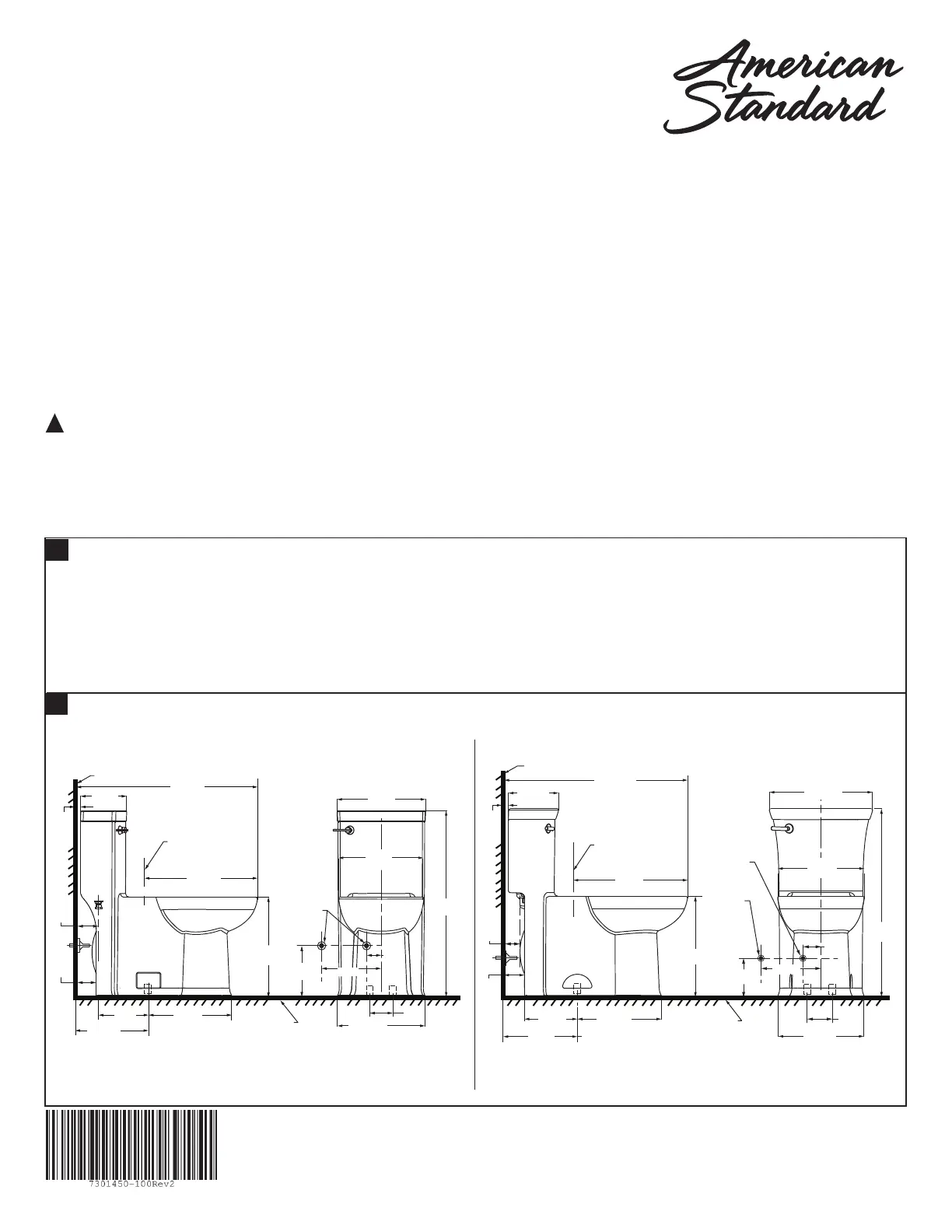

ROUGHING-IN DIMENSIONS:

REMOVE OLD TOILET

1

2

a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.

b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!

c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.

d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.

NOTE:Mounting surface must be clean and level before new toilet is installed!

SAVE FOR FUTURE USE

BOULEVARD

®

- 1.28 gpf/4.8 Lpf One-Piece Toilet

Model 2891 - Elongated Right Height

®

with Seat

TROPIC

®

- 1.28 gpf/4.8 Lpf One-Piece Toilet

Model 2786 - Elongated Right Height

®

with Seat

TOWN SQUARE

®

- 1.28 gpf/4.8 Lpf One-Piece Toilet

Model 2847 - Elongated Right Height

®

with Seat

TOWN SQUARE

®

S - 1.28 gpf/4.8 Lpf One-Piece Toilet

Model 2851A - Elongated Right Height

®

with Seat

Model 2786 - TROPIC 1.28 gpf/ 4.8 Lpf

Model 2891 - BOULEVARD 1.28 gpf/ 4.8 Lpf

CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!

NOTE: Pictures may not exactly define contour of china and components.

Thank you for selecting American Standard – the benchmark of fine quality for over 140 years. To ensure this product is installed properly, please read

these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.

!

INSTALLATION INSTRUCTIONS

NOTE: Distance from wall to closet flange centerline must be as listed below:

C/L OF SEAT POST

HOLES 5-1/2"

(140mm) CENTERS

29-3/4"

(756 mm)

8-1/8"

(206 mm)

3/4"

(19 mm)

18-1/2"

(470 mm)

3-1/2"

(88 mm)

8-1/2"

(217 mm)

13-1/2"

(345 mm)

14"

(354 mm)

16-3/4"

(424 mm)

30-1/2"

(778 mm)

16-1/2"

(419 mm)

12"

(305 mm)

C/L OF OUTLET AND

TOILET MTG BOLTS

FINISHED WALL

IMPORTANT: Water supply on the wall is required at 3-3/4" or 9" from centerline of the toilet (see rough-in).

First suggested position is hidden behind the toilet. The geometry of the toilet gives space for this installation.

The second suggested position is next to the toilet. Between these two positions, the space for the supply

between wall and toilet is limited to 3-1/4". In this case, check your supply and hose dimensions.

IMPORTANT: Water supply on the wall is required at 3-3/4" or 9" from centerline of the toilet (see rough-in).

First suggested position is hidden behind the toilet. The geometry of the toilet gives space for this installation.

The second suggested position is next to the toilet. Between these two positions, the space for the supply

between wall and toilet is limited to 3-1/4". In this case, check your supply and hose dimensions.

FINISHED

FLOOR

2-7/8"

(74mm)

5-1/2"

(140mm)

SUPPLY AS

REQUIRED

(position 2)

SUPPLY AS

REQUIRED

(position 1)

6"

(152mm)

3-3/4"

(95mm)

9"

(229mm)

14"

(355 mm)

29-3/4"

(756 mm)

7-1/2"

(192 mm)

3/4"

(19 mm)

18-1/2"

(470 mm)

16-1/2"

(419 mm)

14-1/2"

(368 mm)

30-1/2"

(778 mm)

13-1/2"

(345 mm)

14-1/4"

(364 mm)

8-1/2"

(217 mm)

12"

(305 mm)

C/L OF SEAT POST

HOLES 5-1/2"

(140mm) CENTERS

FINISHED WALL

3-3/8"

(86mm)

3-1/4"

(83mm)

SUPPLY

AS

REQUIRED

(position 1 or

position 2)

6"

(152mm)

5-1/2"

(140mm)

3-3/4"

(95mm)

9"

(229mm)

14"

(350 mm)

FINISHED

FLOOR

OR
